Parts Diagrams |

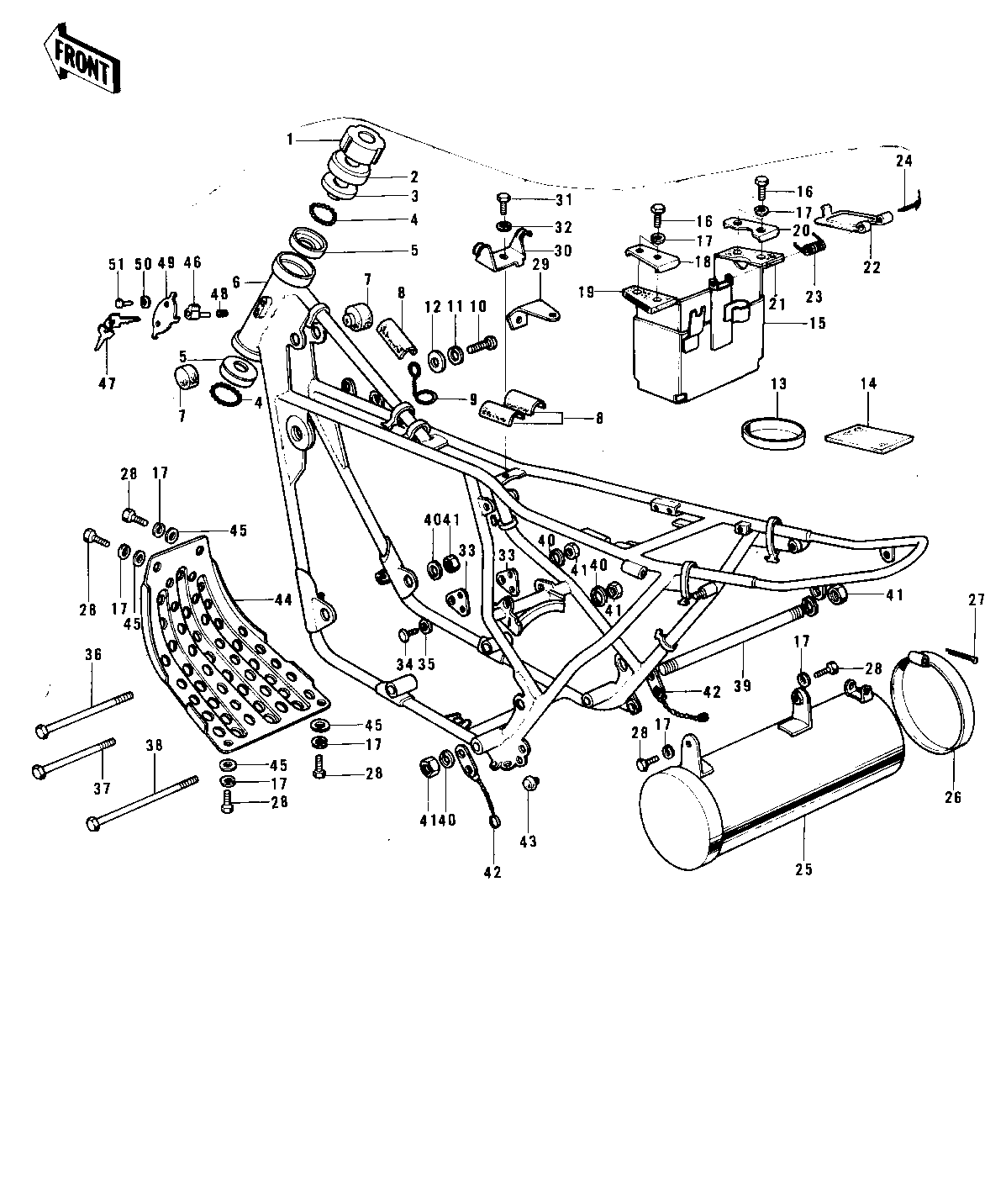

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
NUT STEERING STEM LC | 1 | 92090-006 | 1 | ||
CAP STEERING STEM | 2 | 46098-005 | 1 | ||
CONE STERNG BERG UPP | 3 | 92047-003 | 1 | ||
BALL STEEL 1/4' | 4 | 600A0800 | 38 | ||
RACE STEERING BEARIN | 5 | 92048-005 | 2 | ||
FRAME | 6 | 32002-059 | 1 | ||
DAMPER RUBB FUEL TAN | 7 | 92075-050 | 2 | ||
MAT FUEL TANK | 8 | 51067-002 | 3 | ||
CLAMP | 9 | 92037-053 | 1 | ||
BOLT,6X10 | 10 | 112G0610 | 1 | ||
BOLT,6X10 | 10 | 112G0610 | AL | ||
WASHER SPRING 6MM | 11 | 461F0600 | 1 | ||
WASHER PLAIN 6MM | 12 | 410B0600 | 1 | ||
MAT-BATTERY SIDE | 13 | 32103-023 | 2 | ||
MAT-BATTERY | 14 | 32103-022 | 1 | ||
CASE,BATTERY | 15 | 32097-025 | 1 | ||
BOLT-UPSET | 16 | 112G0618 | 4 | ||
BOLT-UPSET | 16 | 112G0618 | AL | ||
WASHER SPRING 6MM | 17 | 461F0600 | 10 | ||
PLATE,L.H BATERY CAS | 18 | 32101-006 | 1 | ||
DAMPER RUBBER-BATTER | 19 | 92075-152 | 1 | ||
PLATE,R.H BATERY CAS | 20 | 32101-007 | 1 | ||
DAMPER RUBBER,BATTER | 21 | 92075-153 | 1 | ||
BAND,BATTERY | 22 | 92072-048 | 1 | ||
SPRING-RETURN | 23 | 92083-017 | 1 | ||
PIN-COTTER,2.5X35 | 24 | 550D2535 | 1 | ||
BOX-TOOL,BLACK | 25 | 32098-014-21 | 1 | ||
CAP-TOOL CASE | 26 | 32099-005 | 1 | ||
PIN COTTER 2.0X30 | 27 | 550D2030 | 1 | ||
BOLT-UPSET,6X12 | 28 | 112G0612 | 6 | ||
BOLT-UPSET,6X12 | 28 | 112G0612 | AL | ||
BRACKET-TRN.SGNL.RLY | 29 | 27023-001 | 1 | ||
BRACKET,FUEL TANK | 30 | 32052-046 | 1 | ||
BOLT-SMALL-UPSET,8X1 | 31 | 115G0818 | 1 | ||
WASHER SPRING 8MM | 32 | 461F0800 | 1 | ||
PLATE-ENGINE MOUNT | 33 | 32030-020 | 2 | ||
BOLT,8X20 | 34 | 115G0820 | 4 | ||
BOLT,8X20 | 34 | 115G0820 | AL | ||
WASHER SPRING 8MM | 35 | 461F0800 | 4 | ||
BOLT-HEX HEAD,12X163 | 36 | 113B12163A | 1 | ||
BOLT-HEX HEAD,12X151 | 37 | 113B12151A | 1 | ||
BOLT-HEX HEAD,12X260 | 38 | 113B12260A | 1 | ||
STUD | 39 | 92006-002 | 1 | ||
WASHER SPRING 12MM | 40 | 461F1200 | 5 | ||
NUT-HEX-FINE,12MM | 41 | 315B1200 | 5 | ||
CHAIN | 42 | 58041-007 | 2 | ||
PLUG RUBBER | 43 | 92074-005 | 1 | ||
GUARD-ENGINE | 44 | 55011-014 | 1 | ||
WASHER 6.5X20X1.6T | 45 | 92022-125 | 4 | ||
LOCK ASSY-STEERING | 46,47 | 27016-028 | 1 | ||
KEY SET-STRNG,#265 | 47 | 27018-014-65 | 1 | #265 | |
KEY SET-STRNG,#266 | 47 | 27018-014-66 | 1 | #266 | |
KEY SET-STRNG,#267 | 47 | 27018-014-67 | 1 | #267 | |
KEY SET-STRNG,#268 | 47 | 27018-014-68 | 1 | #268 | |
KEY SET-STRNG,#269 | 47 | 27018-014-69 | 1 | #269 | |
SPRING-STEERING LOCK | 48 | 27032-001 | 1 | ||
CAP,STEERING LOCK | 49 | 11012-1134 | 1 | ||
WASHER | 50 | 92097-003 | 1 | ||
SCREW-TAPPING | 51 | 92008-007 | 1 |
