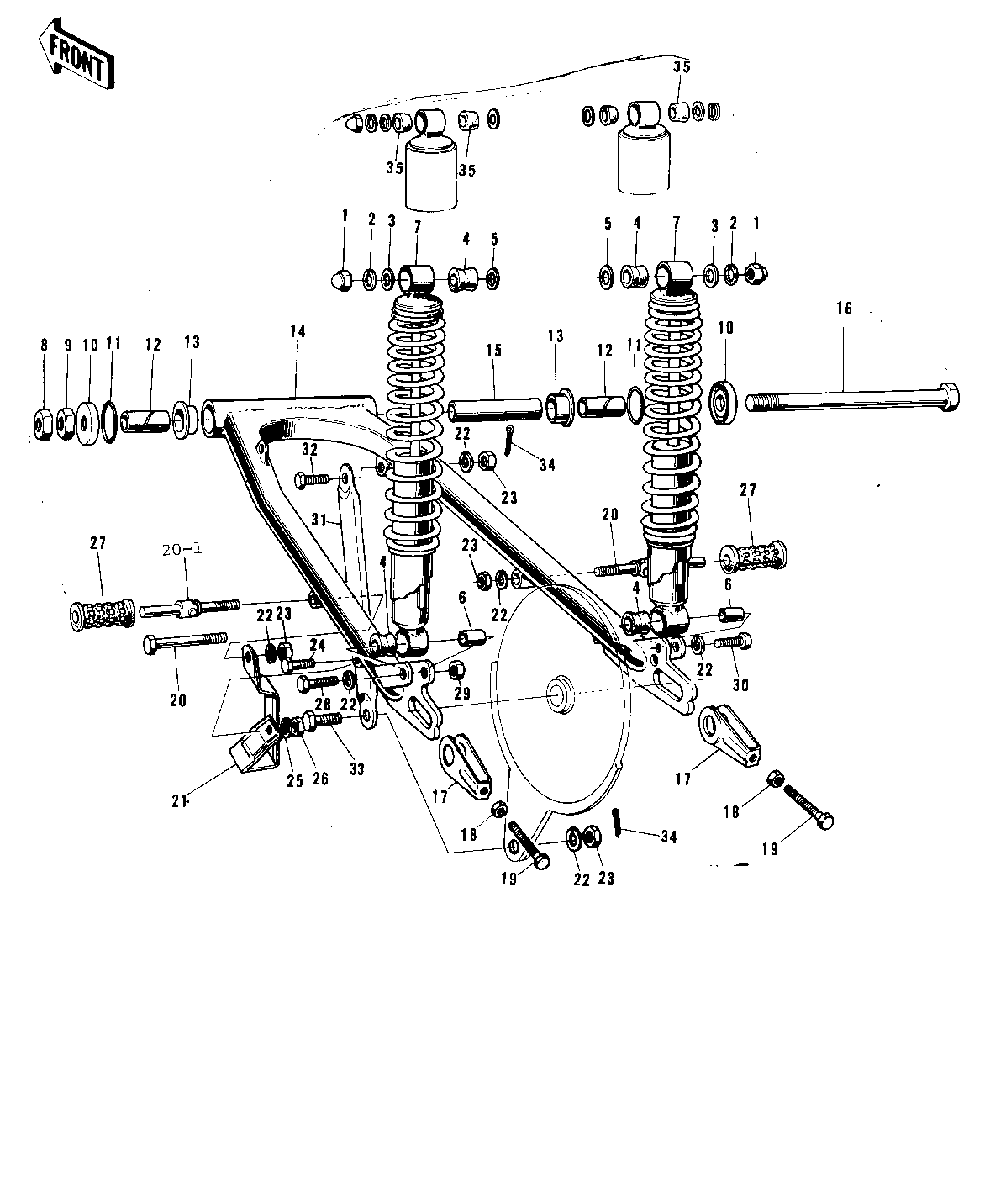

1972 F9 - SWING ARM/SHOCK ABSORBERS ('72-'73 F9/F9

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT SHOCK ABSORBER 1 92020-003 2
WASHER SPRING 10MM 2 461F1000 2
WASHER-PL-10.5X26X2. 3 92022-044 2 I.D-10.5
BUSH-SHOCK ABSORBER 4 45017-005 4
BUSHING,RUBBER 4 92075-1020 2 F9A
WASHER PLAIN 14MM 5 410B1400 2 I.D-12.5
BUSH SHCK ABS PVT SF 6 45016-003 2
SHOCK ABSBR RR 4,6,7 45014-069 2
SHOCK ABSBR RR 4,6,7, 45014-076 2 F9A
NUT 14MM 8 315B1400 1
NUT,14MM 9 314B1400 1
CAP-SWING ARM 10 33035-004 2
"0" RING,30MM 11 671B2530 2
SLEEVE-SWING ARM,SHR 12 33034-013 2 L-43 M/M
BUSHING-SWING ARM 13 33033-009 2
ARM-SWING 14 33001-028 1
SLEEVE-SWING ARM,LON 15 33034-012 1 L-117.5 M/M
SHAFT-SWING ARM PIVO 16 33032-025 1
ADJUSTER-CHAIN 17 33040-043 2
NUT 8MM 18 312B0800 2
BOLT,8X50 19 92001-1399 2
BOLT,HEX HEAD,10X50 20 92001-1254 1 NOT REQUIRED FOR 34027-013
BAR SET-REAR FOOTRES 20-1,2 34030-001 2 OPTION
FOOTREST BAR REAR 20-1 34027-013 2 OPTION
GUARD-CHAIN 21 55020-009 1
NUT,10MM 23 314B1000 4
BOLT-SMALL-UPSET 24 115B0832 1
WASHER SPRING 8MM 25 461F0800 1
NUT,8MM 26 311B0800 1
RUBBER REAR FOOTREST 27 92076-008 2 OPTION
BOLT HEX HEAD 10X45 28 113N1045 1
NUT 10MM 29 315B1000 1
BOLT HEX HEAD 10X35 30 113N1035 1
TORQUE LINK REAR BRK 31 43007-018 1
BOLT TORQUE LINK FIT 32 92003-017 1
BOLT HEX HEAD 10X25 33 92003-003 1
PIN COTTER 2.0X15 34 550D2015 2
BUSH SHCK ABS RUBBER 35 45017-001 4 F9A
