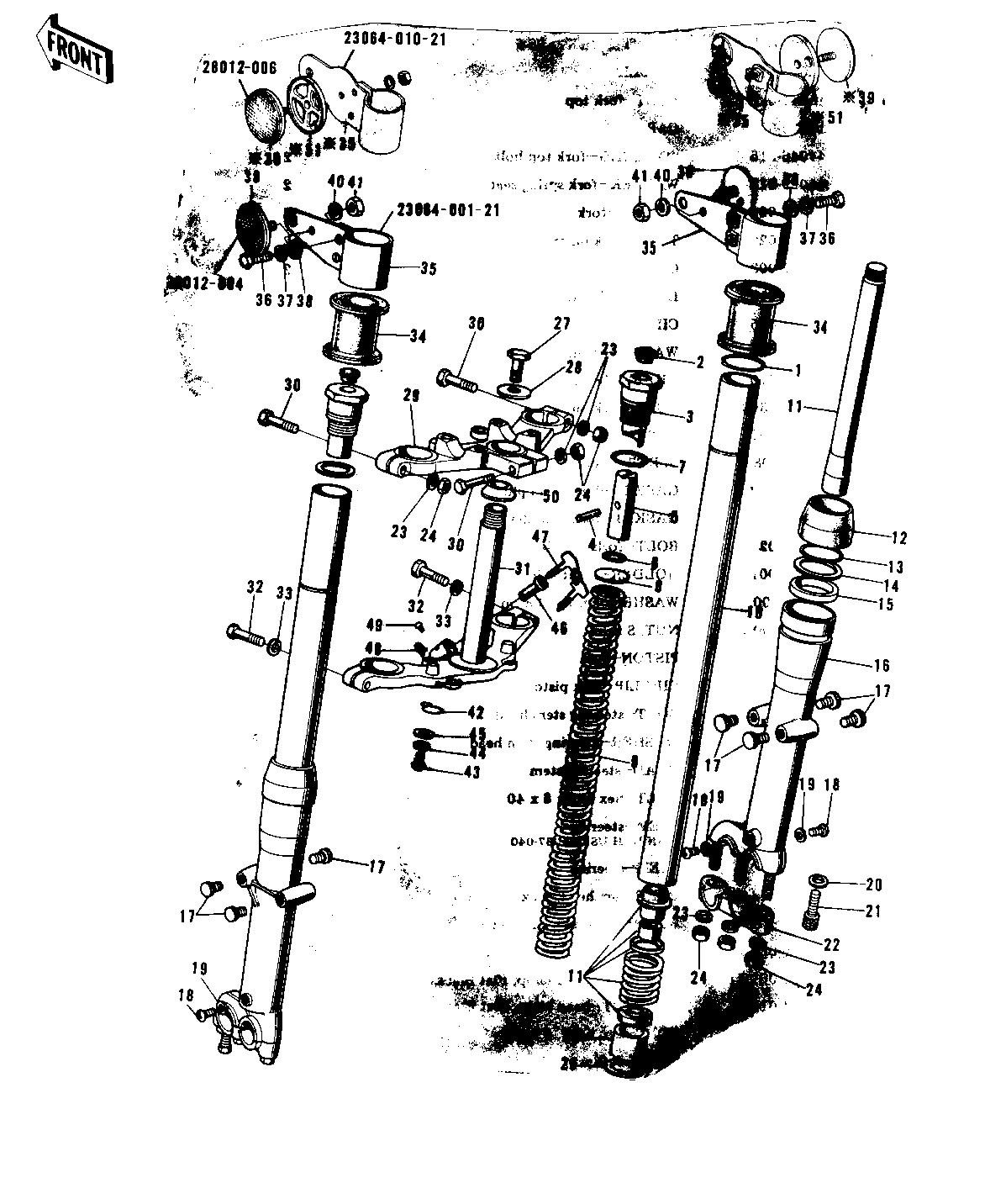

1972 F9 - FRONT FORK ('72-'73 F9/F9-A 350)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT,BUFF 1~33 44001-085-80 1
FORK-FRONT 1~33 44001-103 1 F9A
CIRCLIP 1 44044-009 2
BOLT-FORK TOP 2~6 44041-030 2
BOLT,FORK TOP 2~6 44041-047 2 F9A
CAP CARB MOUNT HOLE 2 14039-001 2
CAP-FORK TOP BOLT 2 44062-004 2 F9A
'O' RING FORK TOP 7 44046-015 2
WASHER-FORK SPRG SEA 8 44029-015 2
SPRING-FORK 9 44026-028 2
TUBE-FORK INNER 10 44013-022 2
CYLINDER-FORK 11 44022-003 2
DUST SHIELD 12 44010-017 2
CIRCLIP OIL SEAL FIT 13 44044-005 2
WASHER OIL SEAL FIT 14 44043-023 2
OIL SEAL,FORK 15 44009-020 2
CAP 17 44062-002 7
SCREW PAN HEAD 4X8 18 220B0408 4
GASKET FORK DRAIN PL 19 44045-002 4
GASKET FORK CYL BOLT 20 44045-030 2
BOLT FORK CYLINDER 21 44041-027 2
HOLDER-FRONT AXLE 22 44063-001 2
HOLDER,FRNT AXLE,BUF 22 44063-001-80 2 F9A
WASHER SPRING 8MM 23 461F0800 9
NUT,8MM 24 311B0800 9
PISTON FORK 25 44018-003 2
CIRCLIP FORK PISTON 26 44044-008 2
BOLT STRNG STEM HEAD 27 44041-007 1
WASHER STRNG STEM HD 28 44043-016 1
HEAD-STEERING STEM 29 44039-032 1
BOLT 30 92001-1578 3
STEM-STEERING 31 44037-032 1
STEM-STEERING 31 44037-040 1 USE 27016-025
STEM,STEERING 31 44037-055 1 F9A
BOLT-HEX HEAD,12X36 32 92003-064 2
WASHER SPRING 12MM 33 461F1200 2
DAMPER RUBBER 34 92075-059 2
BRACKET-HEAD LAMP 35 23064-001 2 *
BRACKET-HEAD LAMP,BL 35 23064-010-21 2 F9/A
BOLT-HEX HEAD,6X18 36 92007-027 4
WASHER SPRING 6MM 37 461F0600 4
WASHER PLAIN 6MM 38 410B0600 4
REFLECTOR-REFLEX 39 28012-004 2 *
REFLECTOR REFLEX 39 28001-004 AL
REFLECTOR-REFLEX,FRN 39 28012-006 2 F9/A
WASHER SPRING 5MM 40 461F0500 2
NUT,5MM 41 311B0500 2
CLAMP-CABLE 42 92037-046 1
BOLT-UPSET 6X14 43 112B0614 1
BOLT-UPSET 6X14 43 112B0614 AL
WASHER SPRING 6MM 44 461F0600 1
WASHER PLAIN 6MM 45 410B0600 1
LOCK ASSY-STEERING 46,47 27016-025 1 NOT REQUIRED FOR 44037-029
KEY SET,#155 47 27008-042-55 1 NOT REQUIRED FOR 44037-029
KEY SET,#156 47 27008-042-56 1 NOT REQUIRED FOR 44037-029
KEY SET,#157 47 27008-042-57 1 NOT REQUIRED FOR 44037-029
KEY SET,#158 47 27008-042-58 1 NOT REQUIRED FOR 44037-029
KEY SET,#159 47 27008-042-59 1 NOT REQUIRED FOR 44037-029
KEY SET,#160 47 27008-042-60 1 NOT REQUIRED FOR 44037-029
KEY SET,#161 47 27008-042-61 1 NOT REQUIRED FOR 44037-029
KEY SET,#162 47 27008-042-62 1 NOT REQUIRED FOR 44037-029
KEY SET,#163 47 27008-042-63 1 NOT REQUIRED FOR 44037-029
KEY SET,#164 47 27008-042-64 1 NOT REQUIRED FOR 44037-029
CIRCLIP-STEERING LOC 48 92033-024 1 NOT REQUIRED FOR 44037-029
SCREW RIVET 49 92099-001 1 NOT REQUIRED FOR 44037-029
CONE STERNG BERG LOW 50 92047-010 1 NOT REQUIRED FOR 44037-029
DAMPER RUBBER 51 92075-137 2 F9/A
