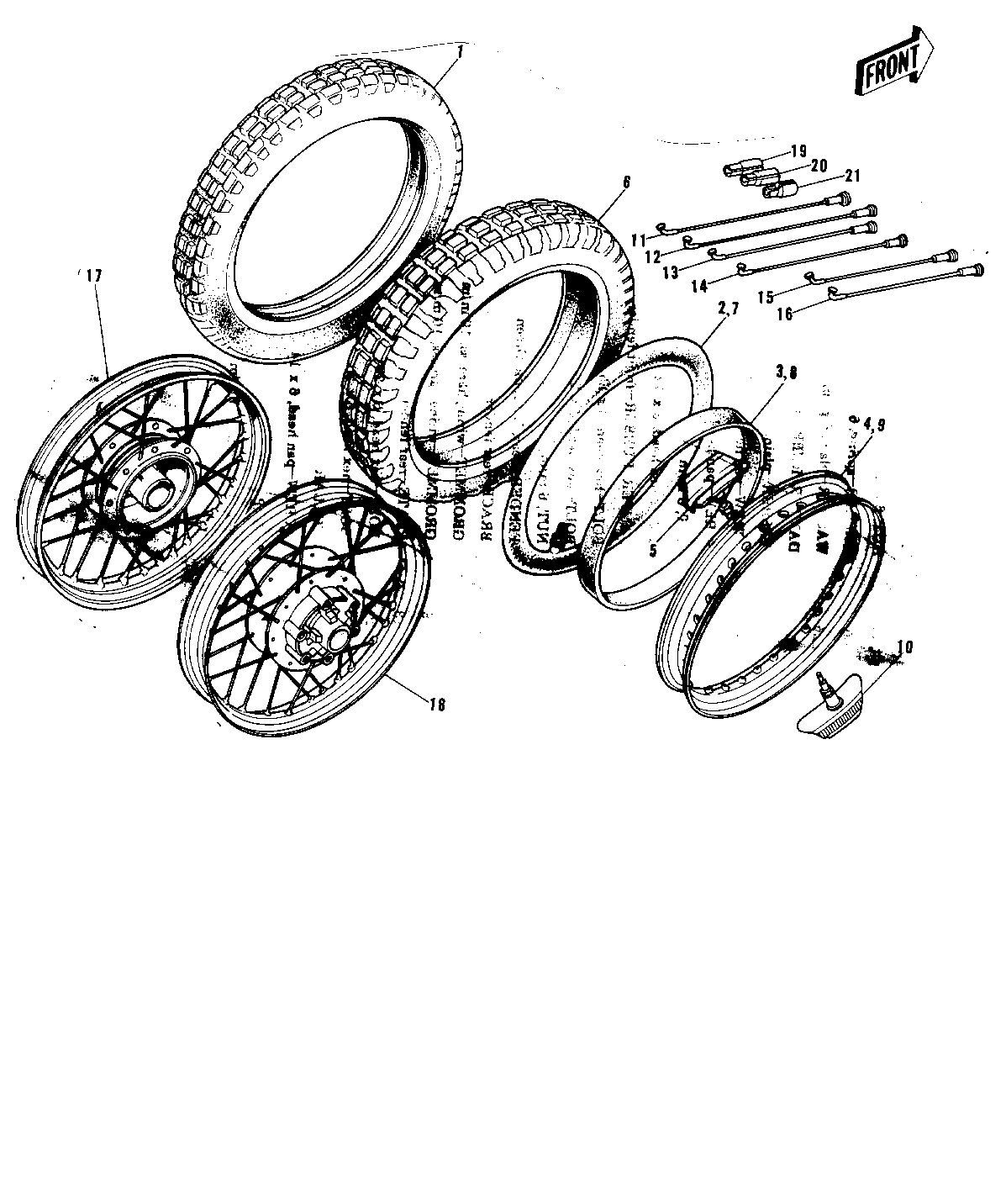

1972 F9 - WHEELS/TIRES ('72-'73 F9/F9-A 350)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 1 | 41019-008 | 1 | FRONT | |
| TUBE,2.75/3.70-21 | 2 | 41022-1021 | 1 | FRONT | |
| BAND,RIM,3.00-21 | 3 | 41023-1001 | 1 | FRONT | |
| RIM,1.6AX21 | 4 | 41025-050 | 1 | FRONT | |
| PROTECTOR-BEAD 1.60A | 5 | 41024-006 | 1 | FRONT | |
| UNAVAILABLE IN PRICE BOOK | 6 | 41019-002 | 1 | REAR | |
| UNAVAILABLE IN PRICE BOOK | 7 | 41022-024 | 1 | REAR | |
| BAND,RIM,4.00/5.10-1 | 8 | 41023-1006 | 1 | REAR | |
| RIM,1.85BX18W | 9 | 41025-045 | 1 | REAR | |
| PROTECTOR-BEAD 1.85B | 10 | 41024-007 | 2 | REAR | |
| SPOKE-ASY,FR INNER | 11 | 41027-039 | 18 | 97.5 X 195.5 M/M | |
| SPOKE-ASY,FR OUTER | 12 | 41028-038 | 18 | 84 X 194.5 M/M | |
| SPOKE-ASY,RR INNER L | 13 | 41027-040 | 9 | 111 X 172.5 M/M | |
| SPOKE-ASY,RR OUTER L | 14 | 41028-039 | 9 | 75.5 X 171.4 M/M | |
| SPOKE-ASY,RR INNER R | 15 | 41027-041 | 9 | 103.5 X 163.7 M/M | |
| SPOKE-ASY,FR OUTER L | 16 | 41028-040 | 9 | 76 X 162.3 M/M | |
| WHEEL ASSY/FRONT | 17 | 41074-021 | 1 | 1.60A X 21 | |
| WHEEL ASSY-REAR | 18 | 42048-018 | 1 | 1.85B X 18W | |
| WEIGHT,BALANCE,10G | 19 | 41075-1007 | AR | ||
| WEIGHT,BALANCE,20G | 20 | 41075-1008 | AR | ||
| WEIGHT,BALANCE,30G | 21 | 41075-1009 | AR |
