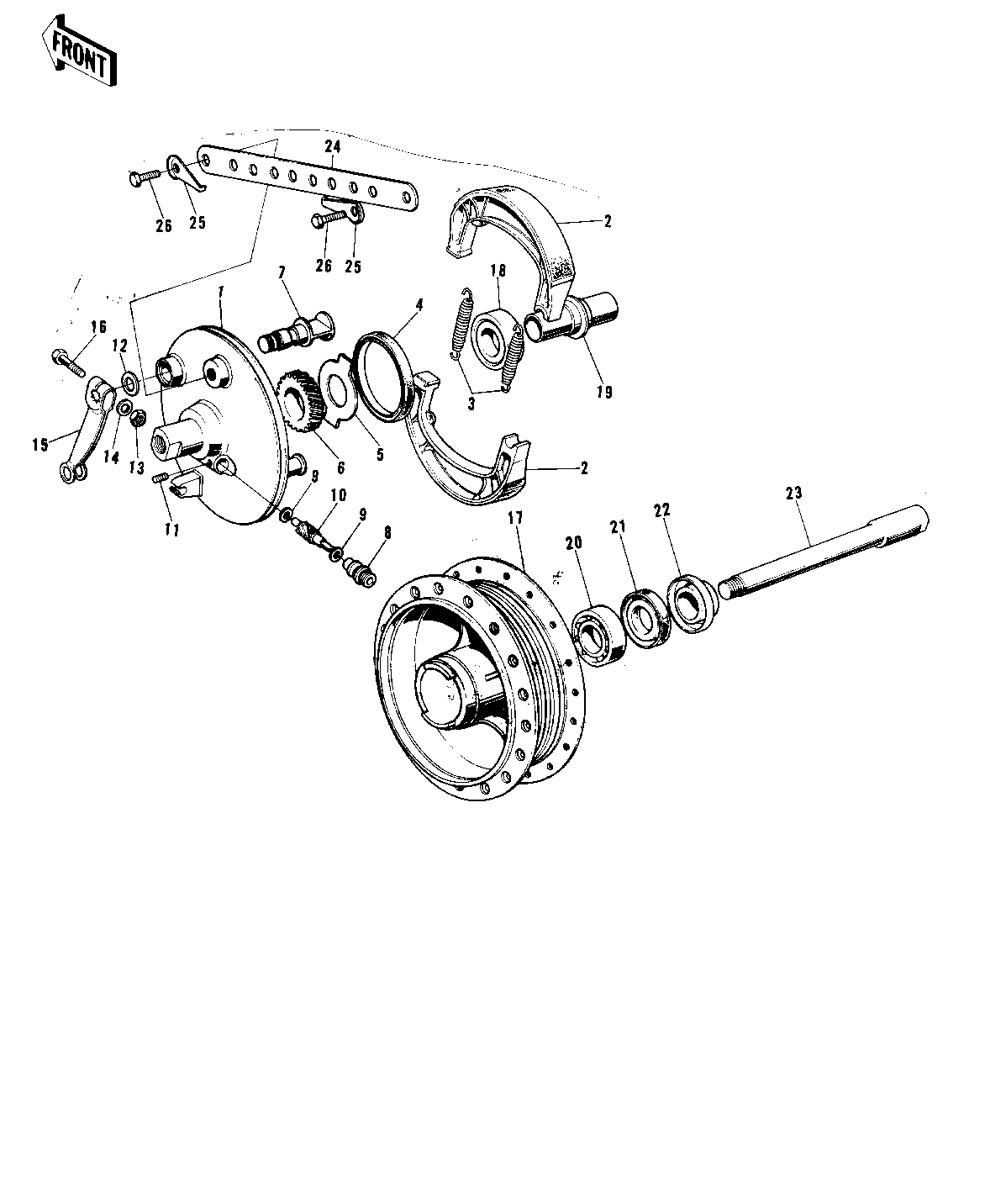

1972 F9 - FRONT HUB/BRAKE ('72-'73 F9/F9-A 350)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PANEL-FRONT BRAKE 1 41043-025 1
PANEL-ASY,FR BRK 1~16 41035-024 1
PANEL-ASY,FR BRK BLK 1~16 41035-024-21 1 F9A, FLAT BLACK
SHOE,BRAKE 2 42019-011 2
SPRING-BRAKE SHOE 3 42020-004 2
OIL SEAL F BRK PANEL 4 92050-010 1
RECIEVER GEAR 5 41064-003 1
GEAR-SPEEDOMETER 6 41059-011 1 28T
CAM SHAFT,REAR BRAKE 7 42026-021 1
BUSH SPEEDMETER CABL 8 41062-001 1
WASHER THRST SPD PIN 9 41063-001 2
PINION-SPEEDOMETER 10 41060-010 1
SCREW-BUSHING NET 11 41070-004 1
PIN,SPRING 11 41082-001 1
DUST SHIELD BRAKE CA 12 41051-001 1
NUT 6MM 13 311B0600 1
WASHER PLAIN 6MM 14 410B0600 1
LEVER,REAR BRAKE CAM 15 42029-037 1
BOLT 6X35 16 110R0635 1
BOLT-UPSET,6X35 16 112G0635 AL
DRUM-ASSY,FR BRK 17~21 41034-022 1
BEARING BALL #6202Z 18 601B6202Z 1
SPACER FR HUB BEARIN 19 41039-004 1
BEARING BALL #6202 20 601B6202 1
OIL SEAL RR BRK DRUM 21 92050-008 1
COLLAR FRONT HUB R.H 22 41069-004 1
AXLE-FRONT 23 41068-029 1
TORQUE LINK-FRNT BRK 24 43007-022 1
WASHER-LOCK 25 92088-012 2
BOLT-HEA HEAD,8X20 26 92001-086 2
