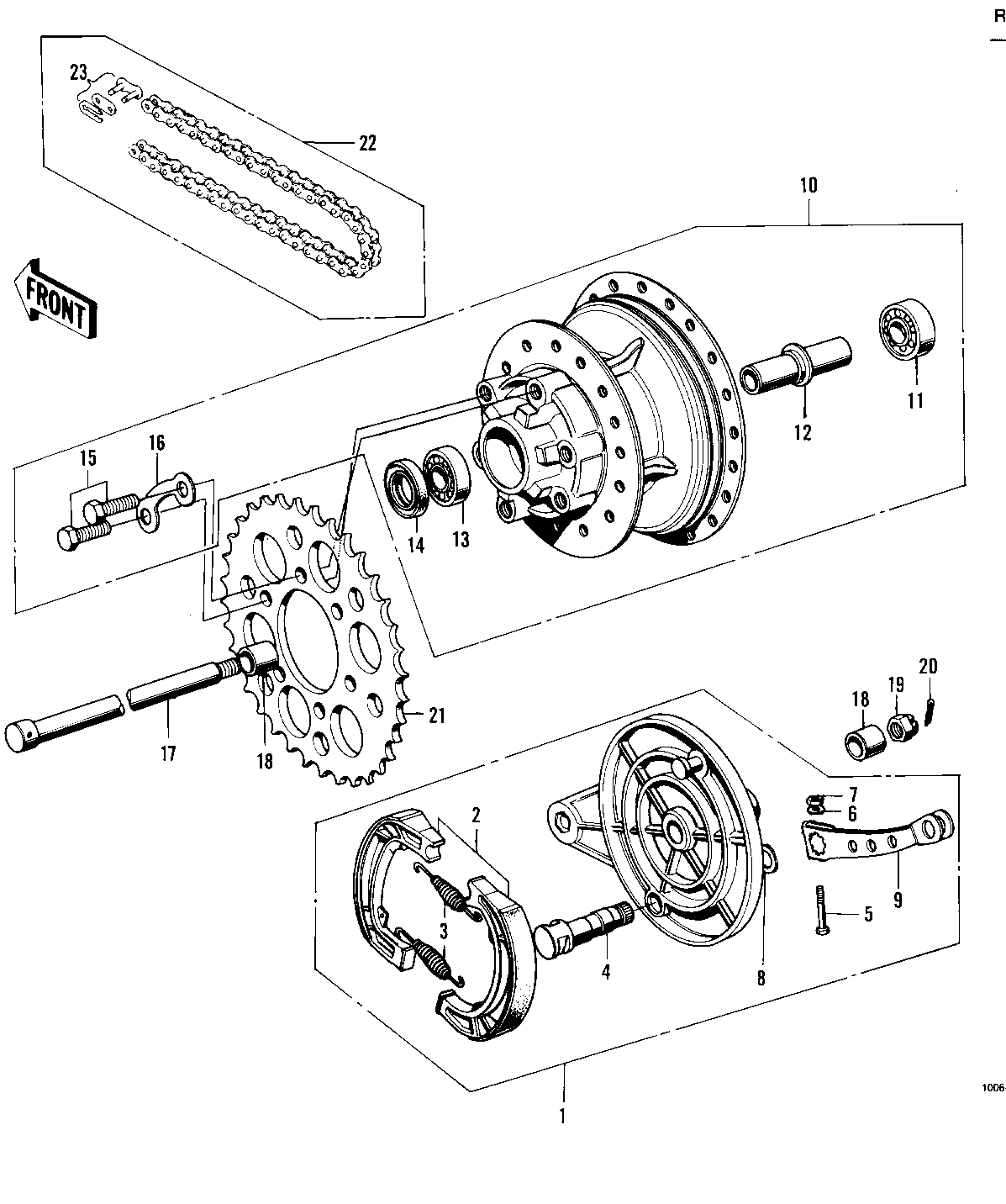

1972 F9 - REAR HUB/BRAKE/CHAIN ('72-'73 F9/F9-A 35

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PANEL-ASY,RR BRK,BLK 1 42006-016-21 1 F9
PANEL-ASY,RR BRK,BLK 1 42006-016-21 1 F9-A
.SHOE,BRAKE 2 42019-011 2
SHOE,BRAKE 2 42019-011 2
.SPRING-BRAKE SHOE 3 42020-004 2
.CAM SHAFT,REAR BRAKE 4 42026-021 1
CAM SHAFT,REAR BRAKE 4 42026-021 1
.BOLT-UPSET,6X40 5 112G0640 1
.WASHER PLAIN 6MM 6 411B0600 1
.NUT 6MM 7 311B0600 1
.DUST SHIELD BRAKE CA 8 41051-001 1
.LEVER,REAR BRAKE CAM 9 42029-037 1
LEVER,REAR BRAKE CAM 9 42029-037 1
DRUM ASSY-REAR BRAKE 10 42005-028 1
DRUM ASSY,RR BRK,BUF 10 42005-039-80 AL
.BEARING BALL #6303Z 11 601B6303Z 1
.SPACER-RR HUB BEARIN 12 42010-015 1 L=116 MM
.BEARING BALL #6303 13 601B6303 1
.OIL SEAL FRONT AXLE 14 654A254708 1
.BOLT-HEX HEAD,10X25 15 92001-087 6
.WASHER LOCK 16 92088-007 3
AXLE-REAR 17 42031-030 1
AXLE-REAR 17 42031-036 1
COLLAR-REAR AXLE 18 42032-031 2
NUT CASTLE 16M/M 19 42045-014 1
PIN-COTTER,4.0X35 20 550D4035 1
REAR SPROCKET 41T 21 42041-080 1 STD F9
REAR SPROCKET,41T 21 42041-111 1 STD F9-A
RR SPROCKET 43T (OPT 21 42041-089 (1 OPTION
REAR SPROCKET,43T 21 42041-112 (1 OPTION
REAR SPROCKET,45T 21 42041-088 (1 OPTION
REAR SPROCKET,45T 21 42041-113 (1 OPTION
RR SPROCKET 47T (OPT 21 42041-090 (1 OPTION
REAR SPROCKET,47T 21 42041-114 (1 OPTION
UNAVAILABLE IN PRICE BOOK 22 695Z5294 1 F9
CHAIN,525X94 SH 22 92057-029 AL SPECIAL GREASE
DR CHAIN 525X92H 22 695X5292 1 F9-A SPECIAL GREASE
CHAIN JOINT 525 23 92058-006 1
