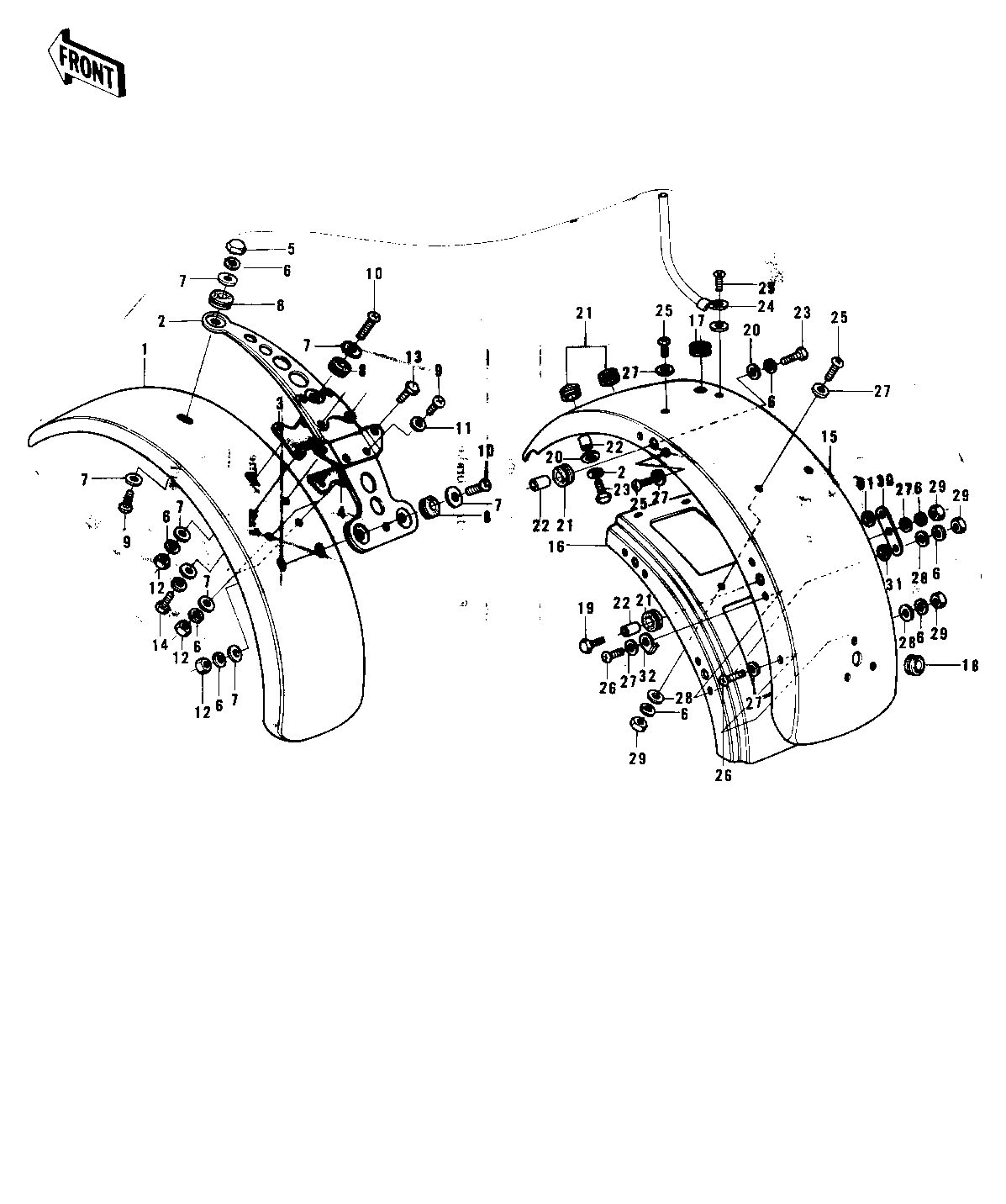

1972 F9 - FENDERS (F9-A)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FR,L.GREEN 1 35004-071-90 1
BRACKET,FRONT FENDER 2 35012-019 1
DAMPER RUBBER-F.FEND 3 35007-002 1
DAMPER RUBBER-FR FND 4 35007-003 1
NUT,6MM 5 92015-009 1
WASHER SPRING 6MM 6 461F0600 27
WASHER 6.5X20X1.6T 7 92022-125 12 O.D-20
DAMPER RUBBER 8 92075-051 4
SCREW PAN HEAD 6X20 9 220B0620 3
SCREW PAN HEAD 6X20 10 220E0620 3
WASHER PLAIN 11 92022-024 2 O.D-16
NUT 6MM 12 312B0600 5
BOLT-UPSET 13 112G0625 2
BOLT-UPSET 13 112G0625 AL
BOLT-UPSET,6X40 14 112G0640 2
FENDER-RR,L.GREEN 15 35022-075-90 1
BRACE-REAR FENDER 16 35034-010 1
GROMMET HARNESS 10MM 17 92071-010 1
GROMMET HARNESS 10MM 18 92071-019 1
BOLT HEX HEAD 6X18 19 110N0618 2
WASHER 6.5X20X1.6T 20 92022-125 4
DAMPER RUBBER 21 92075-051 6
COLLAR 22 92027-103 6
BOLT-UPSET,6X20 23 112G0620 4
BOLT-UPSET,6X20 23 112G0620 AL
CLAMP CABLE 24 92037-020 1
SCREW PAN HEAD 6X14 25 220B0614 8
SCREW PAN HEAD 6X14 26 220E0614 6
WASHER PLAIN 27 92022-024 18
WASHER PLAIN 6MM 28 411B0600 10 O.D-13
NUT 6MM 29 311B0600 12
WASHER-PLAIN 30 92022-200 4
DAMPER RUBBER 31 92075-097 8
CLIP WIRING HARNESS 32 35024-002 1
