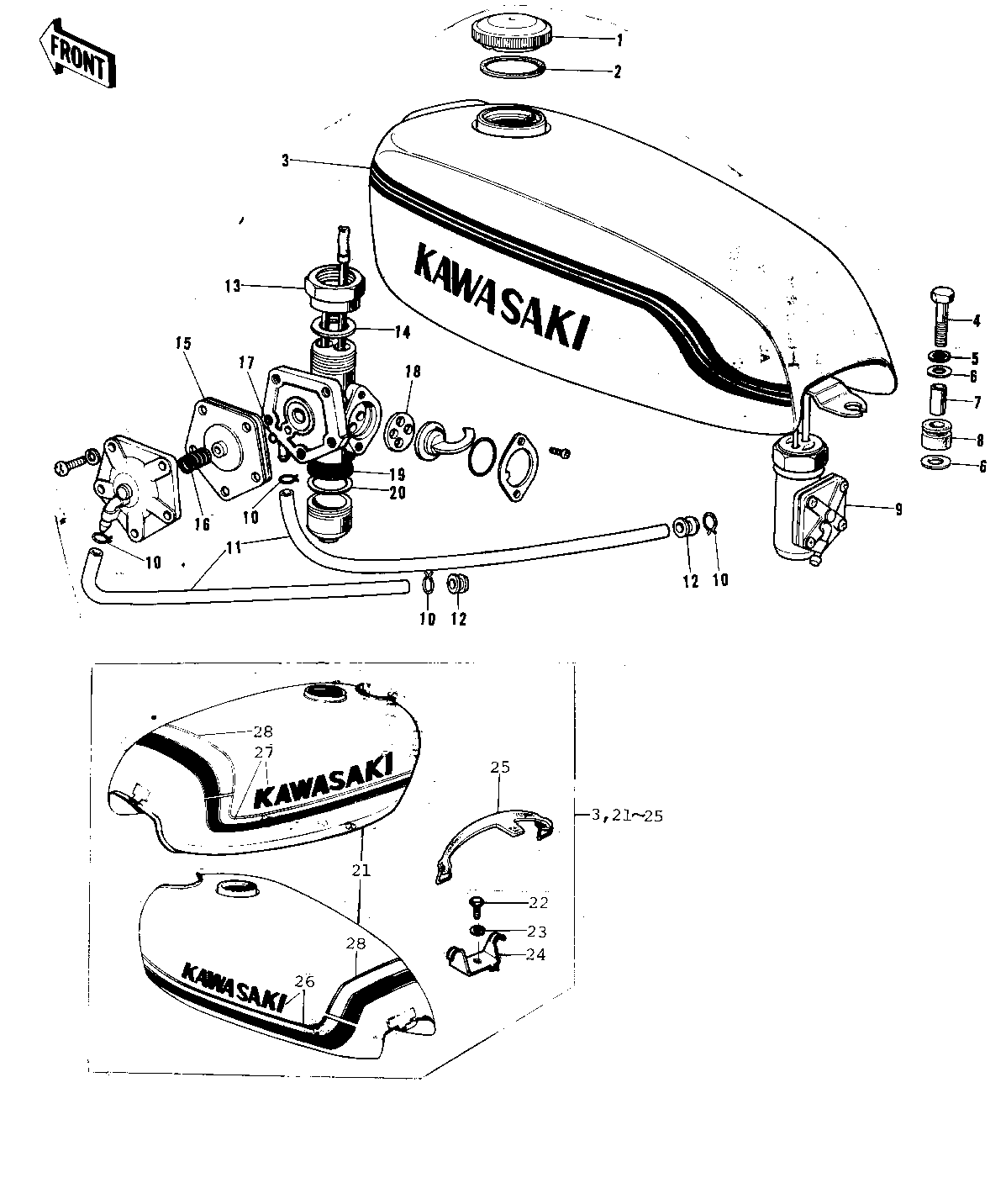

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP FUEL TANK | 1 | 51049-008 | 1 | ||
| GASKET-FUEL TANK CAP | 2 | 51059-007 | 1 | ||
| FUEL TANK,L.GREEN | 3 | 51001-055-70 | 1 | ||
| TANK,FUEL,L.GREEN | 3,21~2 | 51002-010-90 | 1 | ||
| BOLT,FLANGED,8X35 | 4 | 92001-1577 | 1 | N/R FOR 51002-010-90 | |
| WASHER SPRING 8MM | 5 | 461F0800 | 1 | N/R FOR 51002-010-90 | |
| WASHER FUEL TANK FIT | 6 | 92022-035 | 2 | N/R FOR 51002-010-90 | |
| SPACER FUEL TANK REA | 7 | 92027-034 | 1 | N/R FOR 51002-010-90 | |
| DAMPER RUBB TANK REA | 8 | 92075-030 | 1 | N/R FOR 51002-010-90 | |
| COCK ASSY,FUEL | 9 | 51023-048 | 1 | ||
| CLAMP FUEL PIPE | 10 | 92037-010 | 4 | ||
| PIPE-OIL | 11 | 92059-072 | 2 | L=345M/M | |
| GROMMET PIPE | 12 | 92071-038 | 2 | ||
| FUEL COCK JOINT NUT | 13 | 51035-008 | 1 | ||
| GASKET-FUEL COCK JON | 14 | 92065-066 | 1 | ||
| DIAPHRAGM ASSY | 15 | 51069-002 | 1 | ||
| SPRING-DIAPHRAGM | 16 | 92081-072 | 1 | ||
| GASKET | 17 | 92065-052 | 1 | ||
| GASKET-FUEL COCK LEV | 18 | 92065-065 | 1 | ||
| STRAINER FUEL | 19 | 51038-006 | 1 | ||
| GASKET FUEL COCK CUP | 20 | 51037-009 | 1 | ||
| TANK,FUEL,L.GREEN | 21 | 51001-078-90 | 1 | ||
| BOLT-SMALL-UPSET,8X1 | 22 | 115G0818 | 1 | ||
| WASHER SPRING 8MM | 23 | 461F0800 | 1 | ||
| BRACKET,FUEL TANK | 24 | 32052-046 | 1 | ||
| BAND,FUEL TANK | 25 | 92072-049 | 1 | ||
| DECAL,L.H FUEL TANK | 26 | 56013-050 | 1 | TRANSFER TYPE | |
| DECAL,R.H FUEL TANK | 27 | 56014-040 | 1 | TRANSFER TYPE | |
| DECAL,TOP FUEL TANK | 28 | 56027-120 | 1 | TRANSFER TYPE |
| CAP FUEL TANK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-FUEL TANK CAP | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUEL TANK,L.GREEN | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK,FUEL,L.GREEN | |
| REF # | 3,21~2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X35 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | N/R FOR 51002-010-90 |
| WASHER SPRING 8MM | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | N/R FOR 51002-010-90 |
| WASHER FUEL TANK FIT | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | N/R FOR 51002-010-90 |
| SPACER FUEL TANK REA | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | N/R FOR 51002-010-90 |
| DAMPER RUBB TANK REA | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | N/R FOR 51002-010-90 |
| COCK ASSY,FUEL | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP FUEL PIPE | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIPE-OIL | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | L=345M/M |
| GROMMET PIPE | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FUEL COCK JOINT NUT | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-FUEL COCK JON | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM ASSY | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING-DIAPHRAGM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET-FUEL COCK LEV | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STRAINER FUEL | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET FUEL COCK CUP | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK,FUEL,L.GREEN | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-UPSET,8X1 | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,FUEL TANK | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,FUEL TANK | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DECAL,L.H FUEL TANK | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | TRANSFER TYPE |
| DECAL,R.H FUEL TANK | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | TRANSFER TYPE |
| DECAL,TOP FUEL TANK | |
| REF # | 28 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | TRANSFER TYPE |
