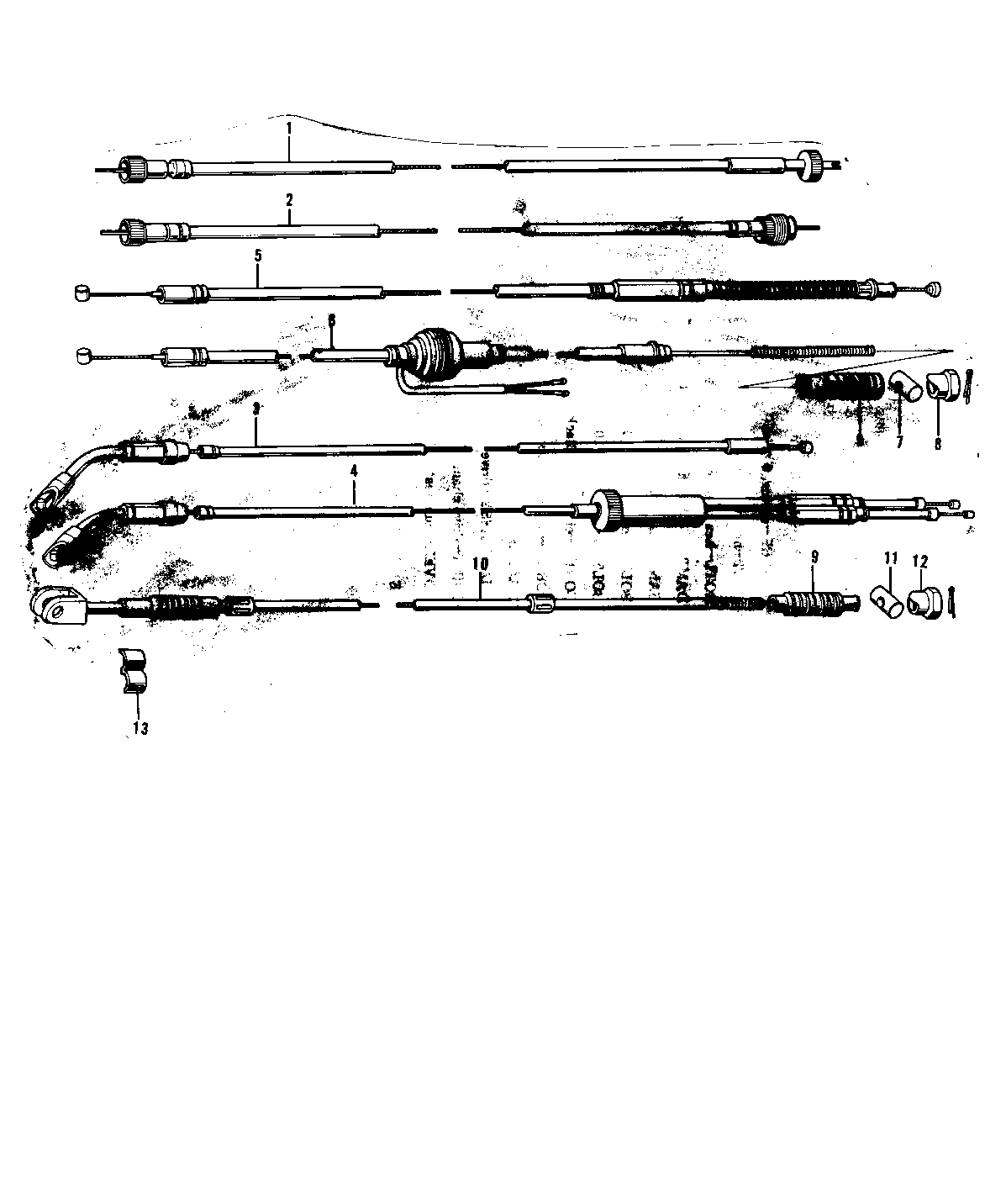

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE,SPEEDOMETER 1 54001-030 1
CABLE-TACHOMETER 2 54018-013 1
CABLE-STARTER 3 54017-041 1
CABLE-CONTROL 4 54012-070 1
CABLE-CLUTCH 5 54011-045 1
CABLE-FRONT BRAKE 6~9 54005-050 1
JOINT-BRAKE ROD 7 92043-082 1
NUT-BRAKE ROD ADJUST 8 92015-052 1
DUST COVER-BRKE CABL 9 54009-008 2
CABLE-REAR BRAKE 9~12 54022-016 1
PIN BRAKE ROD 11 92043-053 1
NUT-BRAKE CABLE ADJS 12 92015-041 1
CLAMP-CABLE 13 92037-069 1
