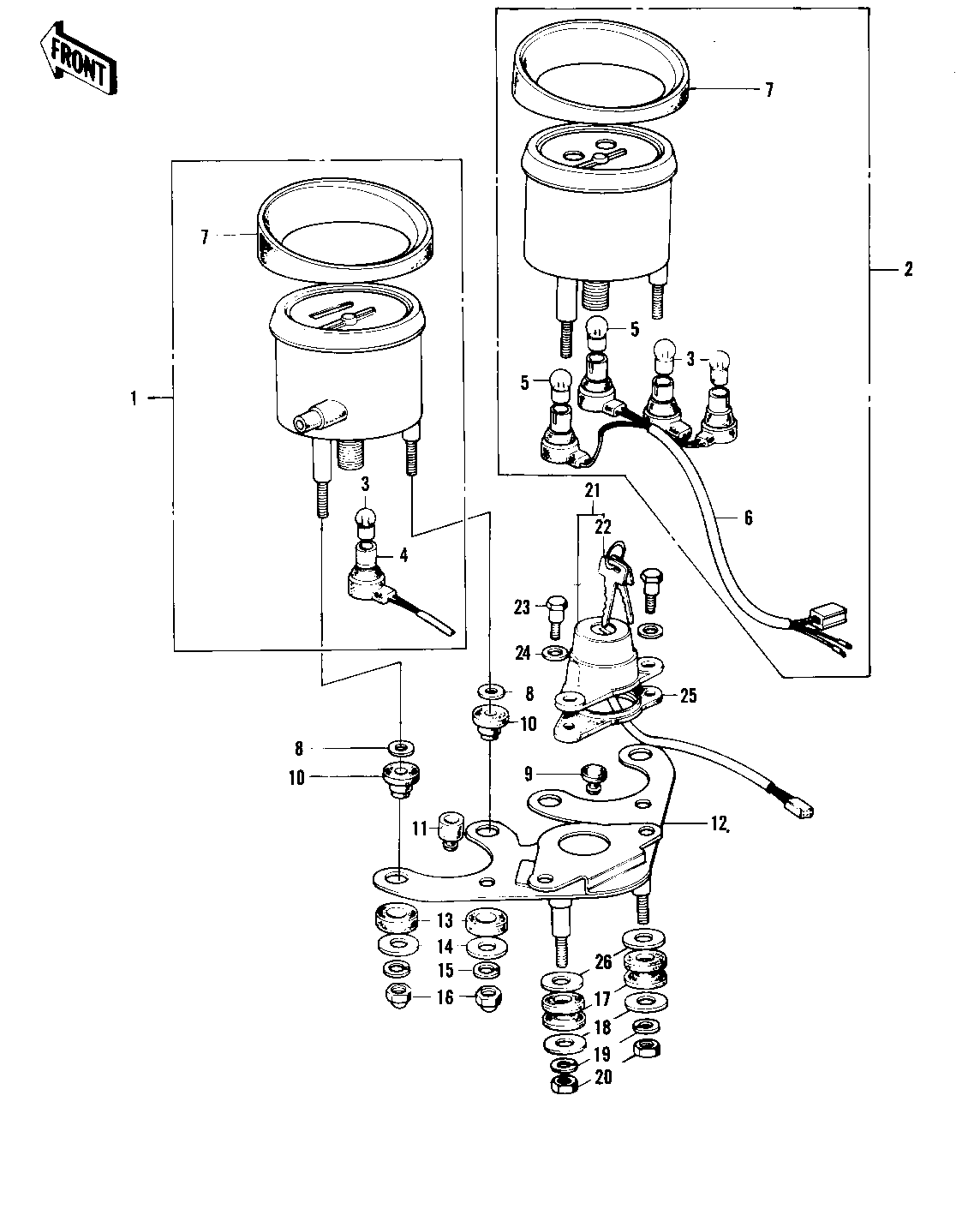

1972 F9 - METERS/IGNITION SWITCH (F9-A)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPEEDOMETER ASSY,MPH 1 25001-045 1
UNAVAILABLE IN PRICE BOOK 1 25001-053 1
TACHOMETER ASSY 2 25015-020 1
BULB-6V 3W 3 92069-053 3
SOCKET-SPEEDOMETER 4 25011-015 1
BULB 6V 1.5W 5 92069-024 2
SOCKET-TACHOMETER 6 25011-028 1
COVER-SPEEDOMETER 7 25012-003 2
WASHER,8.5X20X1.6 8 92022-1561 4
DAMPER RUBBER 9 92075-155 1
DAMPER RUBBER 10 92075-143 4
DAMPER RUBB SPEEDMET 11 92075-035 1
BRACKET METER 12 25008-015 1
DAMPER RUBBER 13 92075-066 4
WASHER PL 5.2X18X1.2 14 92022-285 4
WASHER PL 5.2X18X1.2 14 92022-285 AL
WASHER SPRING 5MM 15 461F0500 4
NUT-CAP,5MM 16 322N0500 4
DAMPER RUBB SPEEDMET 17 92075-024 2
WASHER 6.5X20X1.6T 18 92022-125 2
WASHER SPRING 6MM 19 461F0600 2
NUT 6MM 20 311B0600 2
SWITCH ASSY,IGNITION 21 27005-068 1
SWITCH ASSY,IGNITION 21 27005-068 AL
KEY SET,#155 22 27008-042-55 1
KEY SET,#156 22 27008-042-56 1
KEY SET,#157 22 27008-042-57 1
KEY SET,#158 22 27008-042-58 1
KEY SET,#159 22 27008-042-59 1
KEY SET,#160 22 27008-042-60 1
KEY SET,#161 22 27008-042-61 1
KEY SET,#162 22 27008-042-62 1
KEY SET,#163 22 27008-042-63 1
KEY SET,#164 22 27008-042-64 1
BOLT-HEX HEAD,6MM 23 92007-026 2
WASHER PLAIN 8MM 24 410B0800 2
DAMPER RUBBER 25 92075-077 1
WASHER PLAIN 8MM 26 411B0800 2
