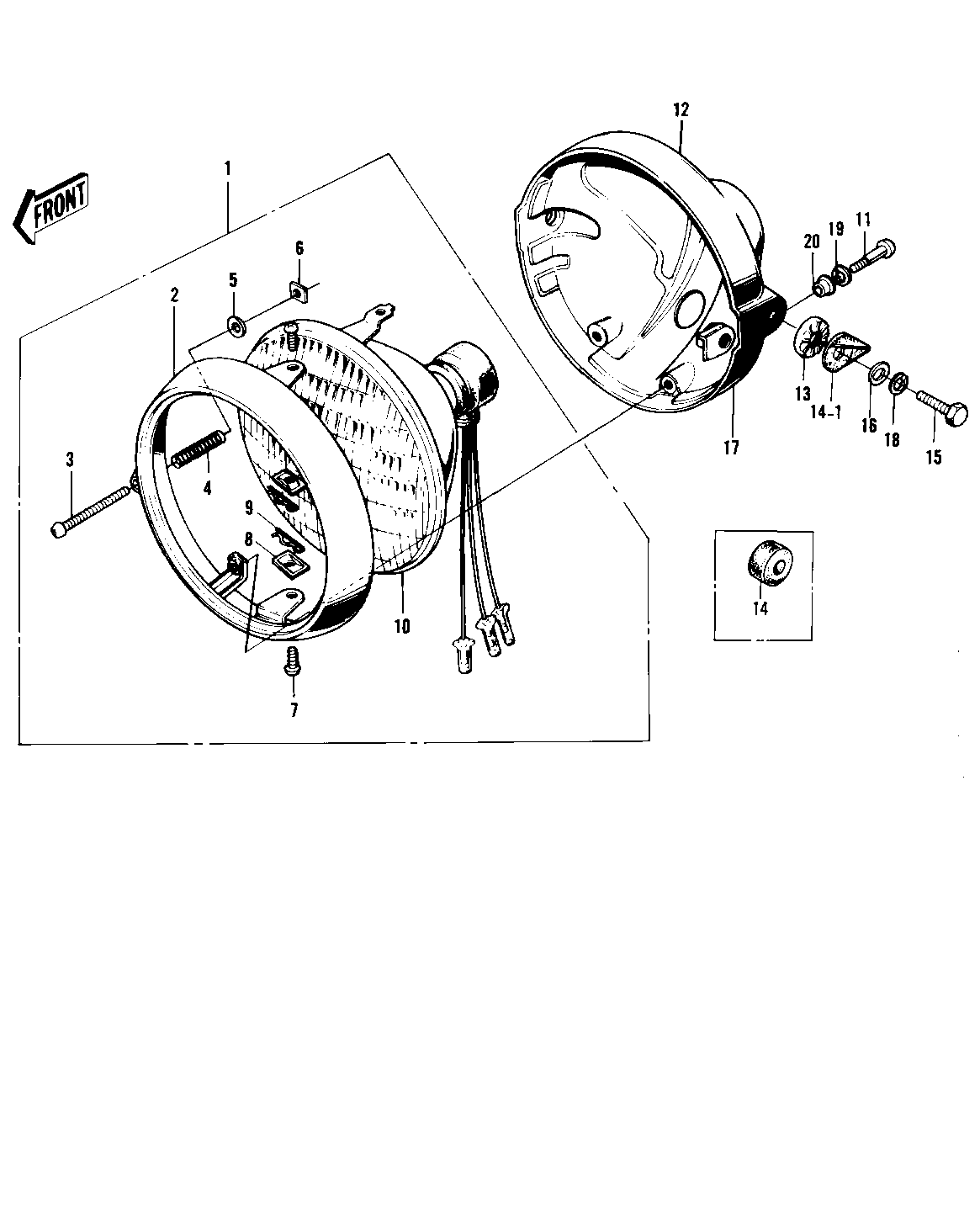

1972 F9 - HEADLIGHT ('72-'73 F9/F9-A 350)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LAMP UNIT-HEAD | 1 | 23003-015 | 1 | ||
.RIM-HEAD LAMP | 2 | 23006-028 | 1 | ||
.SCREW FORCUS ADJUST | 3 | 23019-021 | 1 | ||
.SPRING FOCUS ADJUST | 4 | 23014-005 | 1 | ||
.WASHER | 5 | 23021-004 | 1 | ||
.NUT | 6 | 23020-016 | 1 | ||
.SCREW LENS UNIT FITT | 7 | 23019-018 | 2 | ||
.NUT LENS UNIT FITTIN | 8 | 23020-009 | 2 | ||
.PIN LENS UNIT FITTIN | 9 | 23022-001 | 2 | ||
.LENS UNIT-HEAD LAMP | 10 | 23007-032 | 1 | ||
SCREW-PAN HEAD,5MM | 11 | 92011-024 | 2 | ||
BODY-HEAD LAMP,BLACK | 12 | 23005-034-10 | 1 | PLASTIC | |
WASHER-LOCK | 13 | 23021-011 | 2 | ||
DAMPER RUBBER | 14 | 92075-079 | 2 | F9 | |
DAMPER RUBBER | 14-1 | 92075-134 | 2 | F9-A | |
BOLT,10MM | 15 | 92007-024 | 2 | ||
WASHER-PLAIN,10MM | 16 | 411D1000 | 2 | ||
NUT | 17 | 23020-017 | 2 | ||
WASHER SPRING 10MM | 18 | 461F1000 | 2 | ||
WASHER SPRING 5MM | 19 | 461F0500 | 2 | ||
WASHER | 20 | 23021-010 | 2 |
LAMP UNIT-HEAD | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
.RIM-HEAD LAMP | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
.SCREW FORCUS ADJUST | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
.SPRING FOCUS ADJUST | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
.WASHER | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
.NUT | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
.SCREW LENS UNIT FITT | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
.NUT LENS UNIT FITTIN | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
.PIN LENS UNIT FITTIN | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
.LENS UNIT-HEAD LAMP | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-PAN HEAD,5MM | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BODY-HEAD LAMP,BLACK | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | PLASTIC |
WASHER-LOCK | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DAMPER RUBBER | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | F9 |
DAMPER RUBBER | |
REF # | 14-1 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | F9-A |
BOLT,10MM | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,10MM | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER SPRING 10MM | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER SPRING 5MM | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
