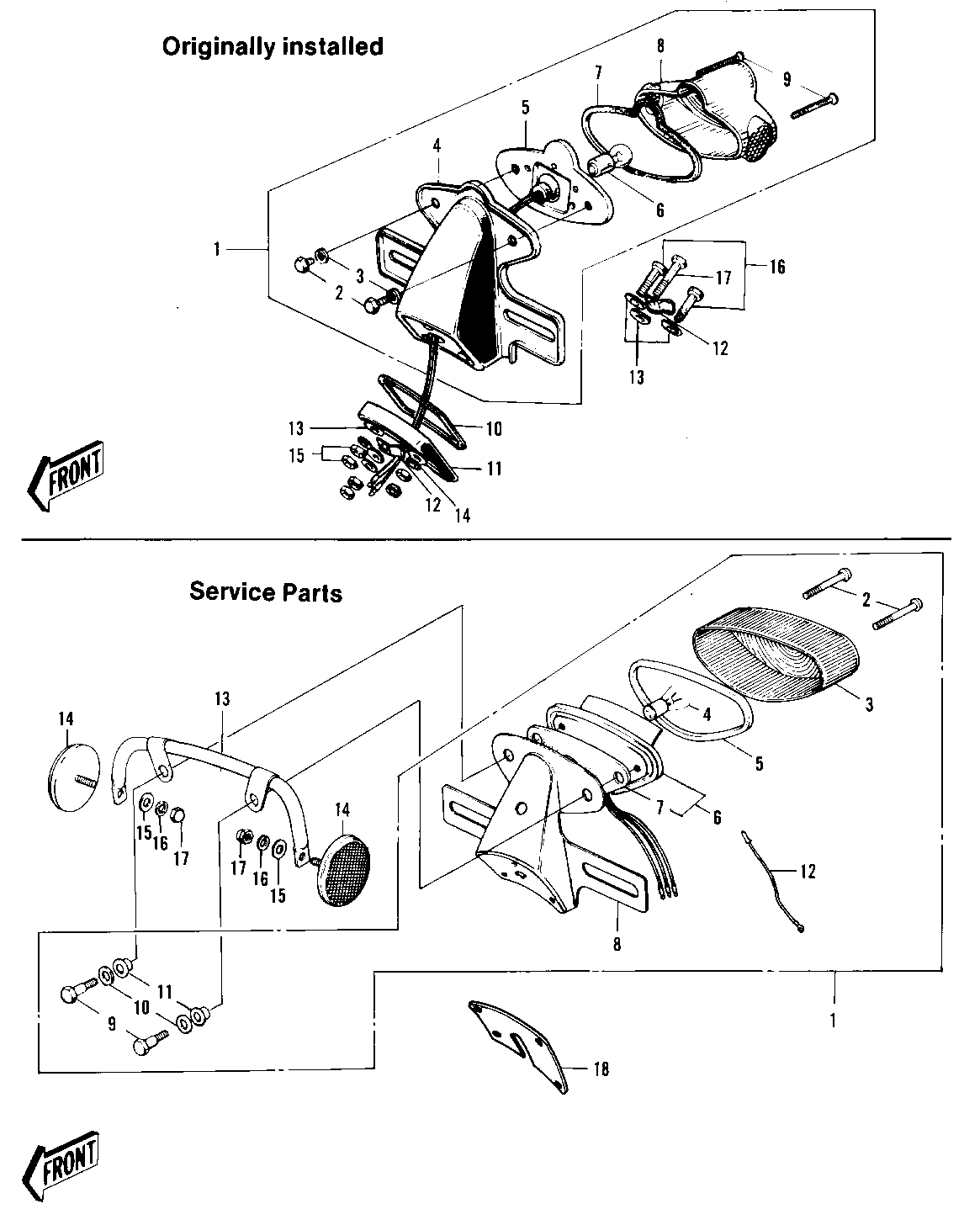

1972 F9 - TAILLIGHT (F9)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP ASSY-TAIL,BLACK 1 23024-019-21 1 ORIGINALLY INSTALLED
.BOLT HEX HEAD 5X10 2 110N0510A 2
.WASHER SPRING 5MM 3 461F0500 2
.BKT LICENSE PLT BLAC 4 23036-007-10 1
SOCKET TAIL LAMP 5 23027-009 1
BULB 6V 3/21CP 6 92069-023 1
.GASKET TAIL LAMP 7 23028-008 1
.LENS TAIL LAMP 8 23026-010 1
.SCREW PAN HEAD 4X50 9 220E0450 2
STAY-TAIL LAMP 10 35031-005 1
DAMPER RUBBER 11 35016-004 1
CLIP WIRING HARNESS 12 35024-002 2
WASHER 6.5X20X1.6T 13 92022-125 6
WASHER SPRING 6MM 14 461F0600 3
NUT 6MM 15 312B0600 6
BOLT-HEX HEAD,6X32 16 110N0632 2
BOLT-UPSET,6X40 17 112G0640 1
LAMP ASSY-TAIL,BLACK 1 23024-019-21 1 SERVICE PARTS ONLY
.SCREW 2 220R0455 4
SCREW 2 220R0455 AL
.LENS-TAIL LAMP 3 23026-022 1
.BULB 6V 3/21CP 4 92069-023 1
.GASKET-TAIL LAMP LEN 5 23028-016 1
.CASE-TAIL LAMP 6 23027-029 1
.GASKET-TAIL LAMP CAS 7 23028-015 1
.BKT-LICENSE PLT,BLAC 8 23036-014-21 1
.BOLT 9 92001-111 2
.WASHER,8.5X20X1.6 10 92022-1561 2
.DAMPER RUBBER 11 92075-091 2
.WIRE IGNITION LEAD 12 26011-014 1
BRACKET-REFLECTOR 13 28013-002 1
REFLECTOR-REFLEX,REA 14 28012-008 2
WASHER PLAIN 5MM 15 411B0500 2
WASHER SPRING 5MM 16 461F0500 2
NUT-CAP,5MM 17 322N0500 2
DAMPER-TAIL LAMP SHC 18 35039-005 1
DAMPER-TAIL LAMP SHC 18 35039-005 1
