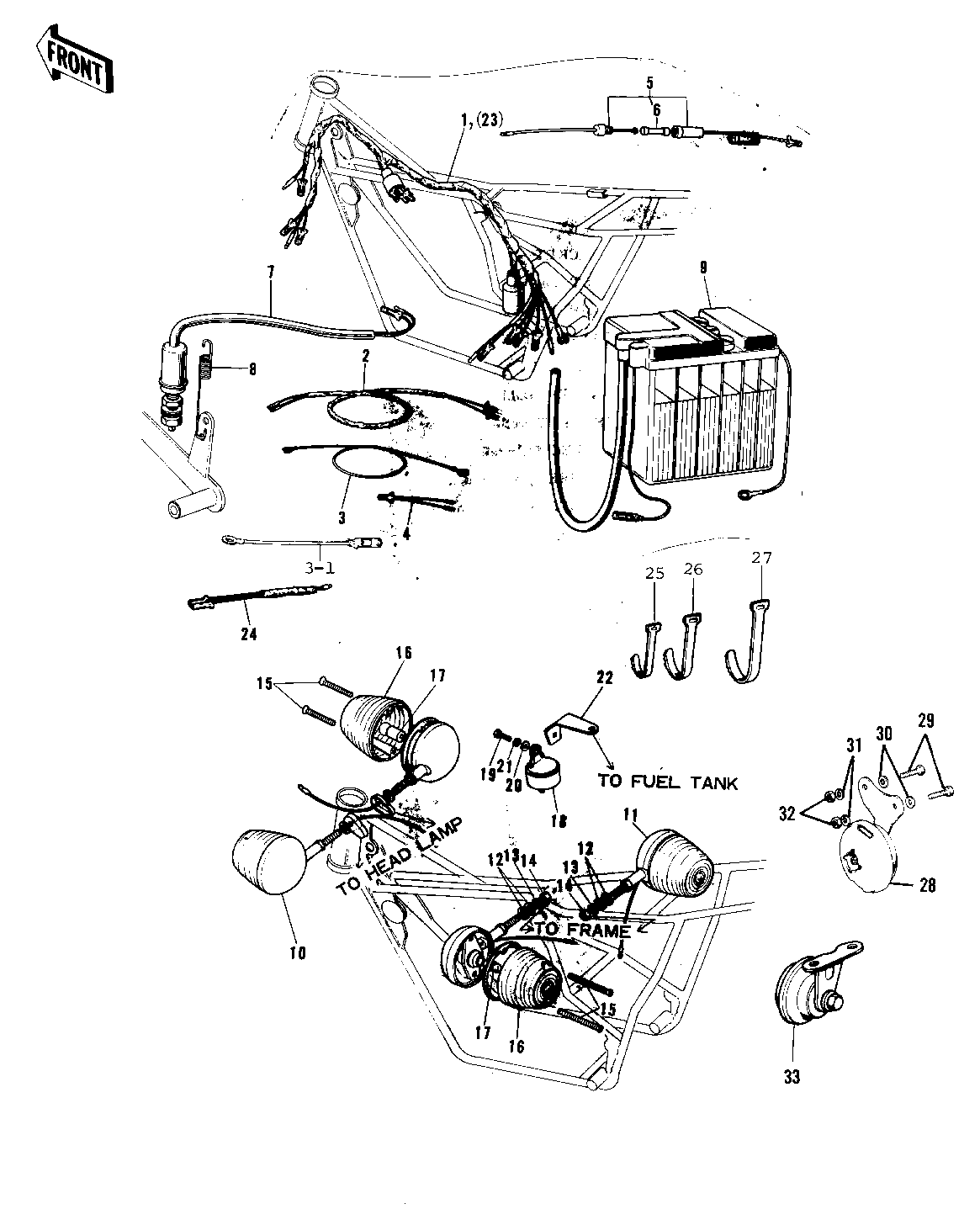

1972 F9 - CHASSIS ELECTRICAL EQUIPMENT ('72-'73 F9

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WIRING HARNESS-MAIN 1 26001-069 1
UNAVAILABLE IN PRICE BOOK 1 26001-078 1
WIRING HARNWSS REAR 2 26002-027 1
WIRING HARNESS-REAR 2 26002-029 1
WIRE BATTERY GROUND 3 26010-017 1
WIRE,LEAD 3-1 26011-093 1
LEAD WIRE 4 26011-042 1
FUES ASSY 5 26004-008 1
FUSE 10A 6 26006-003 2
SWITCH-BRAKE LAMP 7 27010-018 1
SPRING BRAKE LAMP SW 8 27011-004 1
YUA BAT 6N2-2A-3 9 26012-021 1
YUA BAT 6N4B-2A-3 9 26012-035 1
LAMP-FRONT TURN SIG 10 23040-032 2 OPTION
LAMP-REAR TURN SIGNA 11 23043-030 2 OPTION
WASHER PLAIN 10MM 12 410B1000 4 OPTION
WASHER SPRING 10MM 13 461F1000 2 OPTION
NUT 10MM 14 315B1000 2 OPTION
SCREW OVL CNTSNK 3X1 15 222B0315A 8 OPTION
LENS TURN SIGNAL LAM 16 23048-011 4 OPTION
BULB,6V 8W 17 92069-042 4 OPTION
RELAY-TURN SIGNAL 18 27002-009 1 OPTION
SCREW PAN HEAD 6X16 19 220B0616 1 OPTION
WASHER PLAIN 6MM 20 410B0600 1 OPTION
WASHER SPRING 6MM 21 461F0600 1 OPTION
BRACKET-TRN.SGNL.RLY 22 27023-001 1 OPTION
WIRING HARNESS-MAIN 23 26001-054 1 OPTION
WIRE-LEAD 24 26011-058 1 OPTION
BAND,SHORT 25 92072-030 7 F9A
BAND,MIDDLE 26 92072-031 3 F9A
BAND,LONG 27 92072-032 2 F9A
HORN 28 27003-062 1 F9
HORN 28 27003-062 AL F9
BOLT-UPSET,6X20 29 112G0620 2 F9
WASHER PLAIN 6MM 30 411B0600 2 F9
WASHER SPRING 6MM 31 461F0600 2 F9
NUT 6MM 32 311B0600 2
HORN 33 27003-057 1 F9-A
HORN 33 27003-057 AL F9-A
