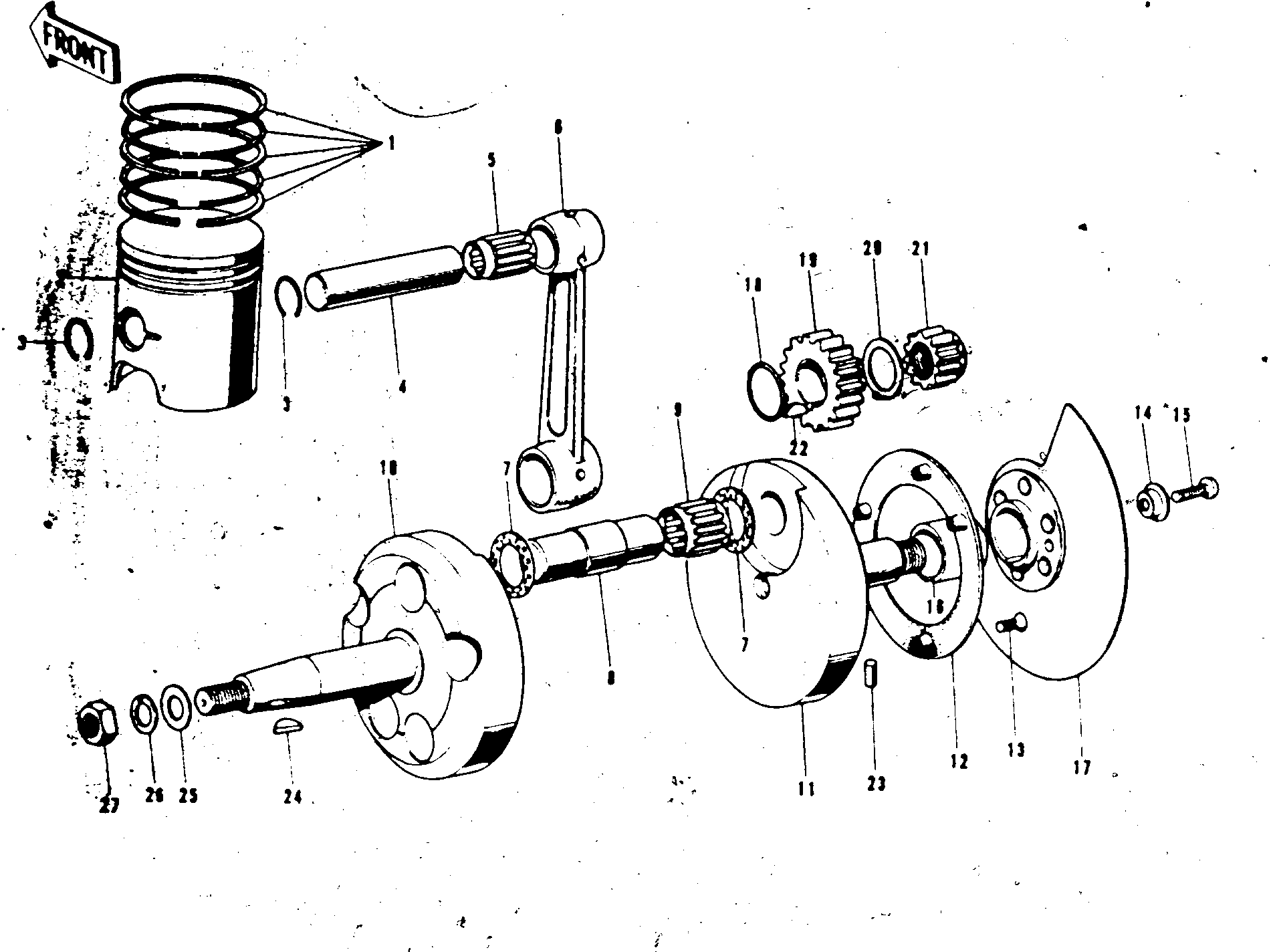

1972 F9 - CRANKSHAFT/PISTON/ROTARY VALVE ('74-'75
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RING SET,STD | 1 | 13008-024 | 1 | ||
| PISTON,STD | 2 | 13001-039 | 1 | ||
| CIRCLIP-PISTON PIN | 3 | 92036-015 | 2 | ||
| PIN-PISTON | 4 | 13002-016 | 1 | ||
| BEARING-SMALL END | 5 | 13033-1010 | 1 | KBK182223.8X | |
| CONNECTING ROD SET | 6 9 | 13044-017 | 1 | ||
| CRANK&CONROD ASSY | 6 13 | 13036-036 | 1 | ||
| WASHER-CONROD SIDE | 7 | 92026-069 | 2 | ||
| CRANK PIN | 8 | 13035-026 | 1 | ||
| NEEDLE BRG-BIG END | 9 | 13034-032 | 1 | PK293817.8X | |
| NEEDLE BRG-BIG END | 9 | 13034-032 | 1 | PK293817.8X3 F9C | |
| CRANKSHAFT,L.H | 10 | 13037-045 | 1 | ||
| CRANKSHAFT,R.H | 11 | 13038-045 | 1 | ||
| HOLDER-CRANKSHAFT OI | 12 | 13045-006 | 1 | ||
| SCREW OVL CNTSNK 5X1 | 13 | 92012-002 | 3 | ||
| SPACER-R.H CRANKSHAF | 14 | 92026-071 | 1 | ||
| SCREW-PAN HEAD,6X20 | 15 | 92011-025 | 1 | ||
| CALLAR-CRANKSHAFT | 16 | 92027-097 | 1 | ||
| VALVE-ROTARY DISC | 17 | 12001-022 | 1 | ||
| "0" RING,22MM | 18 | 670B3022 | 1 | ||
| PINION,PRIMARY 24T | 19 | 13121-028 | 1 | ||
| WASHER-LOCK,18MM | 20 | 92024-029 | 1 | ||
| PINION-OIL PUMP | 21 | 16084-011 | 1 | ||
| WOODRUFF KEY | 22 | 510A5100 | 1 | ||
| PIN DOWEL 4X12 | 23 | 610A0412 | 1 | ||
| WOODRUFF KEY | 24 | 92038-001 | 1 | ||
| WASHER-PLAIN,14MM | 25 | 92022-172 | 1 | ||
| WASHER SPRING 14MM | 26 | 461F1400 | 1 | ||
| NUT 14MM | 27 | 92015-043 | 1 |
