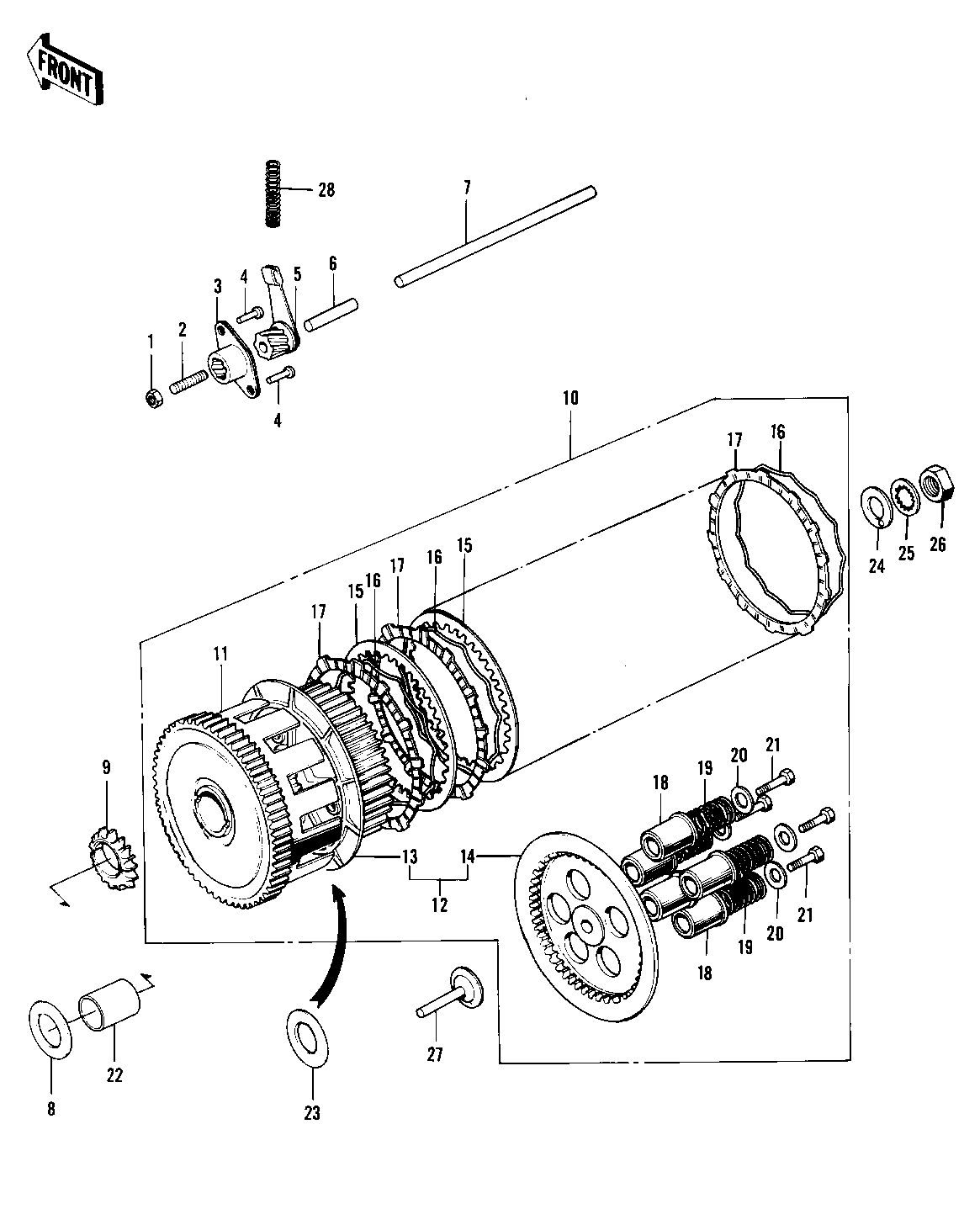

1972 F9 - CLUTCH ('74-'75 F9-B/F9-C 350)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT 6MM | 1 | 311B0600 | 1 | ||
| SCREW-CLUTCH ADJUST | 2 | 92014-011 | 1 | ||
| RELEASE OUTER-CLUTCH | 3 | 13118-005 | 1 | ||
| SCREW PAN HEAD 6X14 | 4 | 220B0614 | 2 | ||
| RELEASE INNER-CLUTCH | 5 | 13102-010 | 1 | ||
| PUSH ROD-CLUTCH,SHOR | 6 | 13116-013 | 1 | L=79 MM | |
| PUSH ROD-CLUTCH,LONG | 7 | 13116-012 | 1 | L=152 MM | |
| WASHER TH 25.5X38X1T | 8 | 92022-145 | 1 | ||
| PINION-KICKSTARTER | 9 | 13075-007 | 1 | ||
| CLUTCH-ASSY | 10 | 13081-042 | 1 | ||
| .HOUSING-CLUTCH | 11 | 13095-027 | 1 | ||
| .HUB SET-CLUTCH | 12 | 13084-005 | 1 | CONTAINS 13087-030 & 13187-005 | |
| ..HUB-CLUTCH | 13 | 13087-030 | 1 | ||
| ..PLATE-CLUTCH SPRING | 14 | 13187-005 | 1 | ||
| .PLATE CLUTCH STEEL | 15 | 13089-013 | 6 | ||
| .RING-CLUTCH STEEL | 16 | 13229-003 | 7 | ||
| RING-CLUTCH STEEL | 16 | 13229-003 | AL | ||
| .PLATE-CLUTCH FRICTIO | 17 | 13088-021 | 7 | ||
| .GUIDE CLUTCH SPRING | 18 | 13092-005 | 5 | ||
| .SPRING CLUTCH | 19 | 92081-042 | 5 | ||
| .HOLDER CL SPG6.5X20X | 20 | 13091-009 | 5 | ||
| .BOLT-UPSET | 21 | 112G0618 | 5 | ||
| BUSHING 25X30X34L | 22 | 92028-081 | 1 | ||
| WASHER TH 25.5X47X2. | 23 | 92026-022 | 1 | ||
| WASHER PL 19X36.5X0. | 24 | 92022-074 | 1 | ||
| WASHER LOCK 18MM | 25 | 463G1800 | 1 | ||
| NUT 18MM | 26 | 92015-019 | 1 | ||
| PUSHER-CLTCH SPRG PL | 27 | 13116-011 | 1 | ||
| SPRING-CLUTCH RELEAS | 28 | 92081-069 | 1 |
