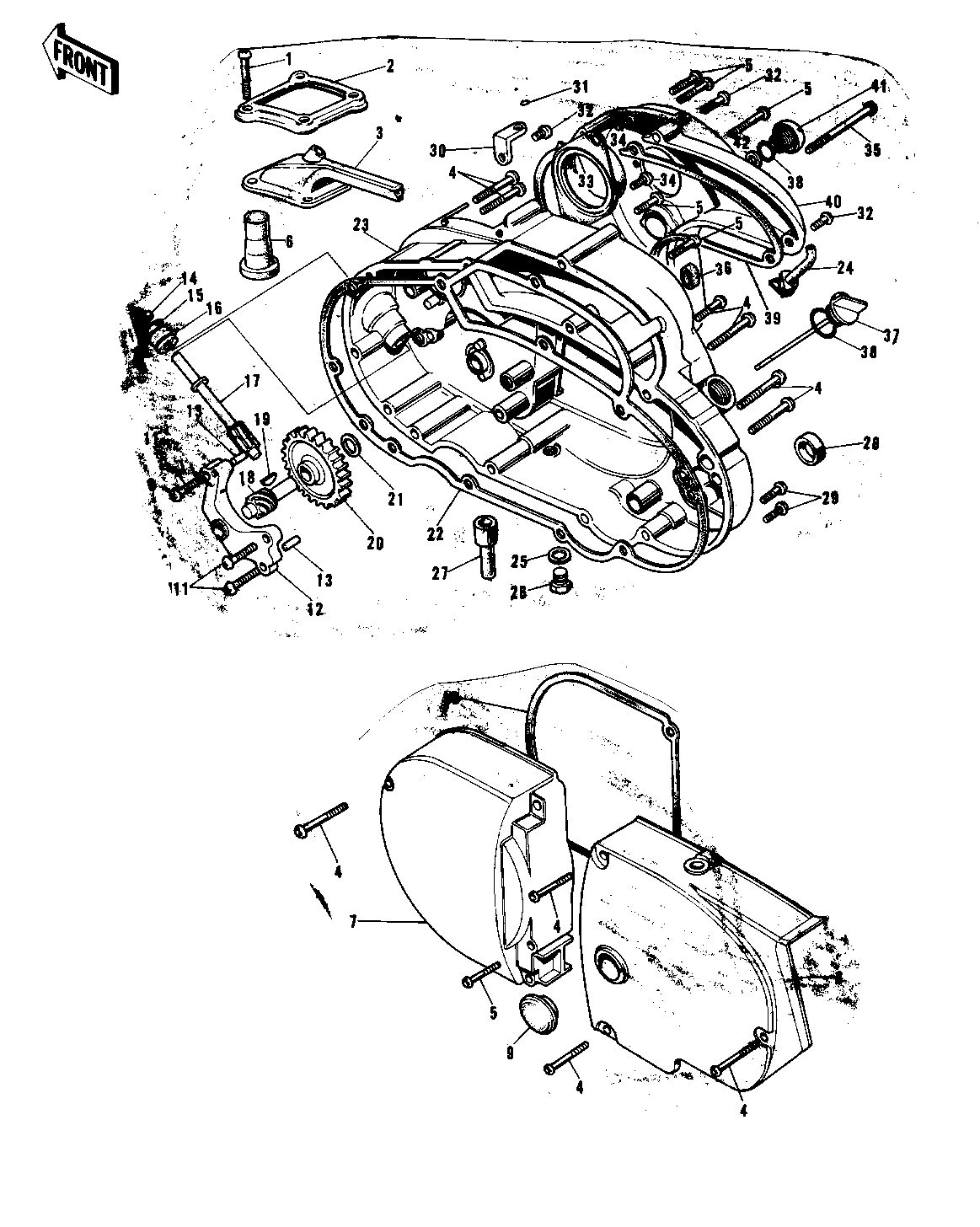

1972 F9 - ENGINE COVERS ('74-'75 F9-B/F9-C 350)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW PAN HEAD 5X12 1 220B0512 4
HOLDER,CARBURETOR CA 2 14065-006 1
CAP,CARBURETOR 3 14038-038 1
SCREW PAN HEAD 6X55 4 220B0655 10
SCREW PAN HEAD 6X35 5 220B0635 6
RUBBER PLUG-CARB CAP 6 92074-021 1
COVER,L.H ENGINE,BUF 7 14031-038-80 1
COVER,CHAIN-CASE 8 14026-005-E8 1
CAP-CLUTCH HOLE 9 14040-003 1
GASKET-L.H ENG COVER 10 14045-008 1
SCREW PAN HEAD 6X25 11 220B0625 3
HOLDER-TACHOMETER GR 12 14018-004 1
PIN DOWEL 5X12 13 610A0512 2
OIL SEAL 14 92054-004 1
"0" RING 15 92055-025 1
BUSH 16 92028-075 1
GEAR-TACHOMETER 17 13223-004 1
PINION-TACHOMETER 18 13224-006 1
WOODRUFF KEY 19 510A3100 1
GEAR-OIL PUMP 20 16085-014 1 33T
WASHER THRUST 21 92026-025 1
GASKET-R.H-ENG.CVR 22 14046-020 1
COVER,R.H ENGINE,BUF 23 14032-090-80 1
GROMMET OIL PIPE 24 16135-006 1
GASKET CHECK VALVE 25 92065-058 1
PLUG OIL DRAIN 26 92067-001 1
PIPE FUEL OVERFLOW 27 16116-001 1
OIL SEAL SB20285 28 92049-012 1
SCREW PAN HEAD 6X30 29 220B0630 2
HOLDER-OIL PUMP CABL 30 14044-005 1
CIRCLIP 31 92036-017 1
SCREW PAN HEAD 6X20 32 220B0620 3
HOLDER-CARBURETOR 33 16065-010 1
SCREW PAN HEAD 6X12 34 220B0612 2
SCREW PAN HEAD 6X70 35 220B0670 1
STOPPER-CARBURETOR 36 14064-001 1
PLUG-OIL FILLER 37 16115-017 1
"0" RING,20MM 38 670B2020 2
GASKET-CARBURETOR CO 39 14048-002 1
COVER,CARBURETOR,BUF 40 14030-034-80 1
PLUG,CARBURETOR COVE 41 92067-015 1
WASHER-RUBBER 42 92094-010 1
