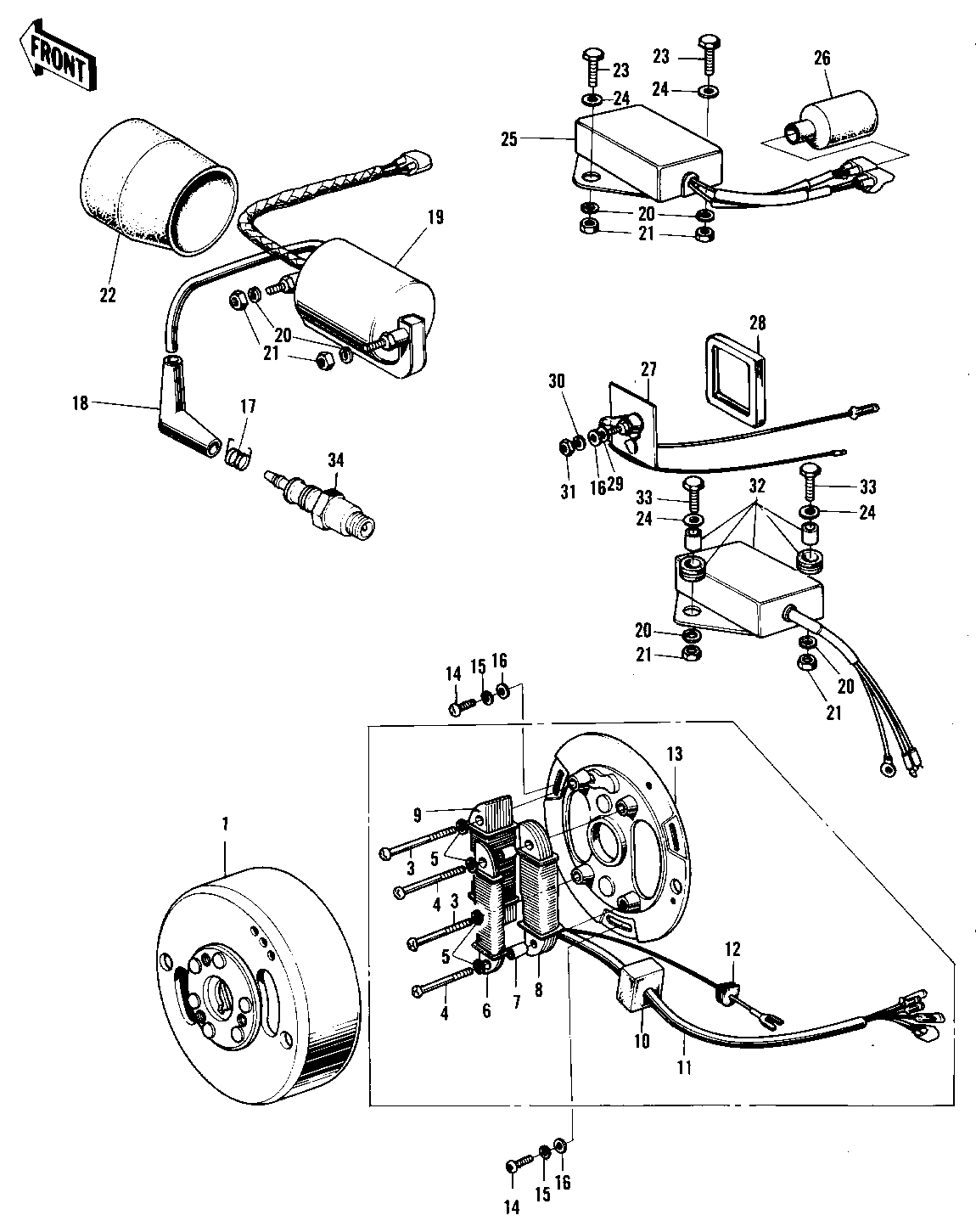

1972 F9 - IGNITION/GENERATOR/REGULATOR ('74-'75 F9

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FLYWEEL 1 21050-015 1
STATOR 2 21003-011 1
SCREW PAN HEAD 4X30 3 220E0430 2
SCREW PAN HEAD 4X30 3 220E0430 2
SCREW-PAN HEAD,4X35 4 220E0435A 2
SCREW-PAN HEAD,4X35 4 220E0435A 2
WASHER SPRING 4MM 5 461F0400 4
COIL-PULSER 6 21157-001 1
COLLAR 7 21033-002 2
COIL-PRIMARY 8 21049-011 1
COIL-LIGHTING 9 21047-012 1
GROMMET ENG RUBBER A 10 92071-014 1
WIRING HARNESS-MAGNE 11 21029-020 1
GROMMET WIRING HARN 12 21017-005 1
BASE-MAGNETO 13 21048-013 1
SCREW PAN HEAD 5X20 14 220B0520 3
WASHER SPRING 5MM 15 461F0500 3
WASHER PLAIN 5MM 16 410B0500 4
SPRING-SPARK PLUG CA 17 92101-001 1
CAP SPARK PLUG 18 21130-009 1
COIL-IGNITION 19 21121-039 1
WASHER SPRING 6MM 20 461F0600 6
NUT 6MM 21 311B0600 6
RUBBER CAP-COIL 22 92073-016 1
BOLT-UPSET 6X14 23 112B0614 2
WASHER PLAIN 6MM 24 410B0600 4
IGNITION UNIT 25 21119-013 1
COVER WIRING HARNESS 26 26009-003 1
RECTIFIER 27 21061-5001 1
MAT-RECTIFIER 28 32103-020 (1 OPTIONAL
WASHER-PLAIN 29 92022-163 1
WASHER SPRING 5MM 30 461F0500 1
NUT,5MM 31 311B0500 1
REGULATOR-VOLTAGE 32 21066-010 1
BOLT-UPSET 33 112G0618 2
SPARK PLUG B10H-1.0 34 92070-039 1 1.0 MM GAP
