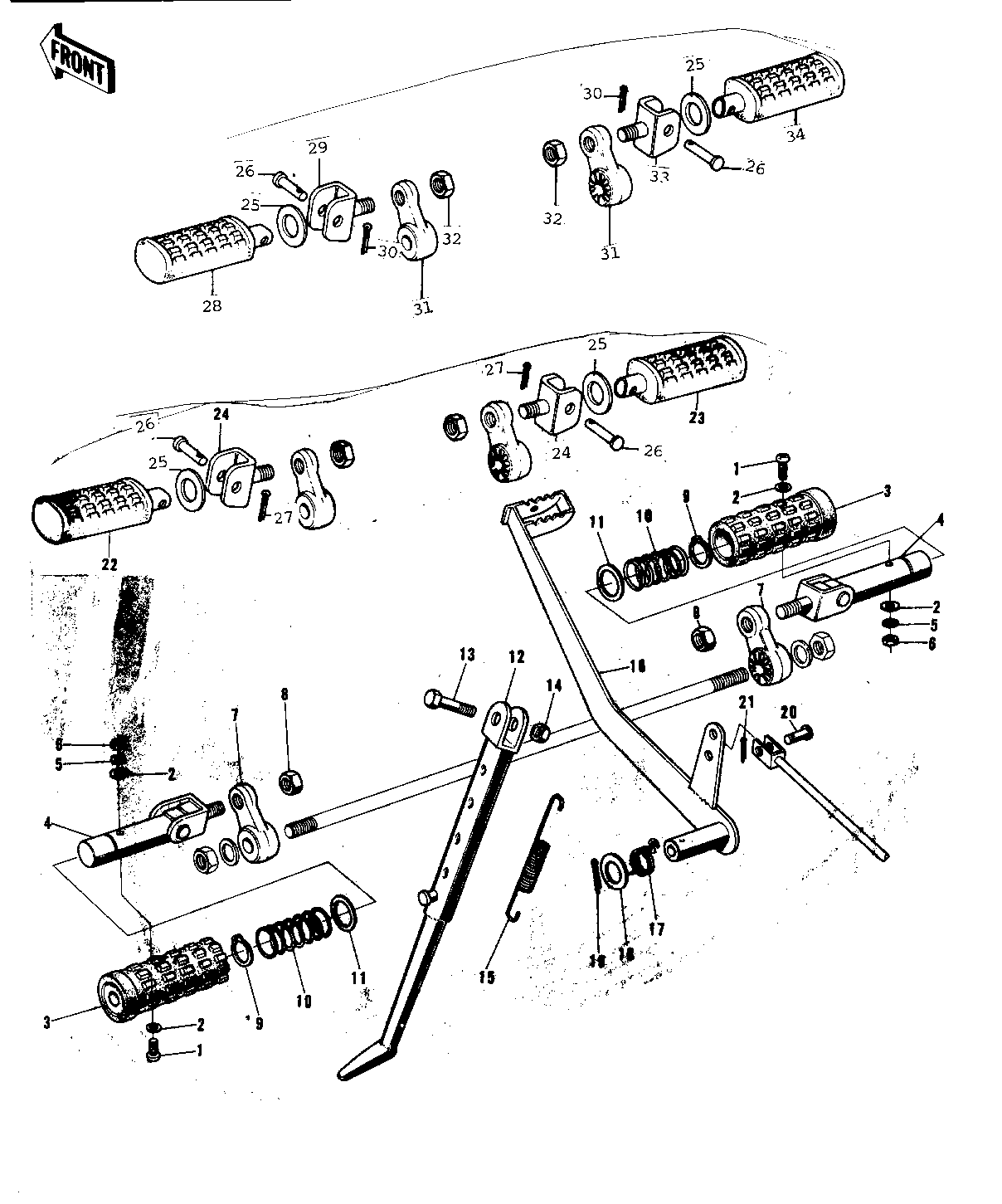

1972 F9 - FOOTRESTS/STAND/BRAKE PEDAL ('74-'75 F9-

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 1 220B0540 2
WASHER PLAIN 5MM 2 410B0500 4
RUBBER-FOOTREST 3 92076-023 2
BAR-FOOTREST 4 34003-032 2
WASHER SPRING 5MM 5 461F0500 2
NUT,5MM 6 311B0500 2
BRACKET-FOOTREST BAR 7 34007-009 2
NUT-LOCK,12MM 8 92019-009 2
CIRCLIP 16MM 9 480J1600 2
SPRING FOOTREST PEG 10 34006-002 2
WASHER FOLDING PEG 11 92022-049 2
STAND-SIDE 12 34024-025 1
BOLT,HEX HEAD 10X35 13 92001-1252 1
NUT 10MM 14 315B1000 1
SPRING MAIN STAND 15 34023-005 1
PEDAL-BRAKE,BLACK 16 43001-036-10 1
SPRING-BRAKE PEDAL 17 43005-013 1
WASHER BRAKE PEDAL 18 92022-085 1
PIN COTTER 3.0X30 19 550D3030 1
PIN R BRK CABLE JOIN 20 92043-034 1
PIN COTTER 2.0X15 21 550D2015 1
STEP-ASSY,FR,LH 22 34027-1114 1
STEP-ASSY,FR,RH 23 34027-1115 1
HOLDER,FOTRST BAR,LH 24 34021-001-10 2
WASHER PL 22.5X36X2. 25 92022-204 2
PIN-FOOTREST BAR FIT 26 92043-080 2
PIN,COTTER,2.5X15 27 550D2515 2
STEP-ASSY,FR,LH 28 34027-1114 1
HOLDER,FOTRST BAR,LH 29 34021-001-10 1 BLACK
PIN COTTER 2.5X16 30 550D2516 2
BRACKET-FOOTREST BAR 31 34007-009 2 BLACK
NUT-LOCK,12MM 32 92019-009 2
HOLDER-FOTRST BAR,RH 33 34021-003-10 1 BLACK
STEP-ASSY,FR,RH 34 34027-1115 1
