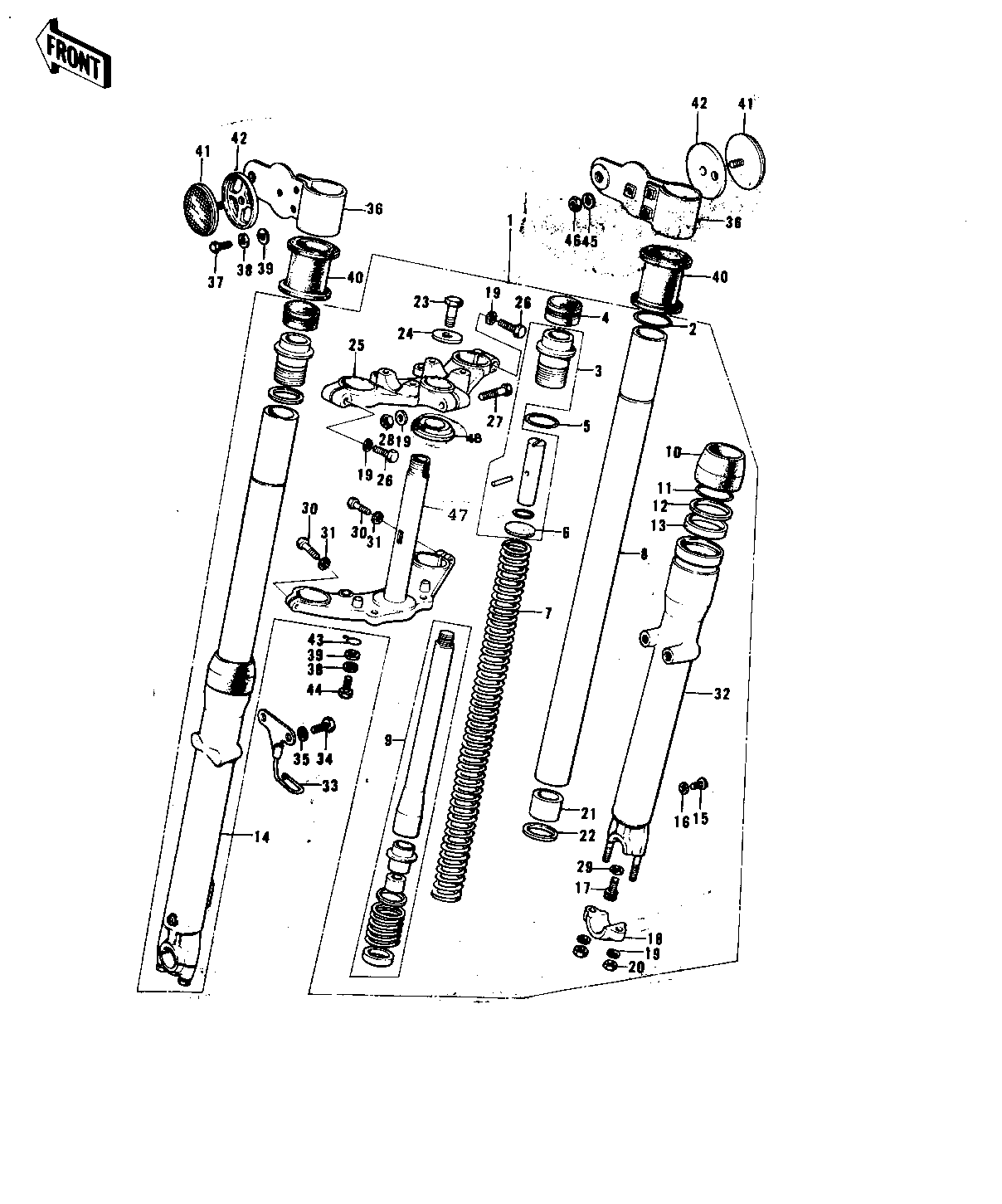

1972 F9 - FRONT FORK ('74-'75 F9-B/F9-C 350)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-127 1
CIRCLIP 2 44044-009 2
BOLT,FORK TOP 3 44041-047 2
CAP-FORK TOP BOLT 4 44062-004 2
'O' RING FORK TOP 5 44046-015 2
WASHER-FORK SPRG SEA 6 44029-015 2
SPRING-FORK 7 44026-028 2
TUBE-FORK INNER 8 44013-022 2
CYLINDER-FORK 9 44022-009 2
DUST SHIELD-FORK 10 44010-019 2
CIRCLIP OIL SEAL FIT 11 44044-005 2
WASHER OIL SEAL FIT 12 44043-023 2
OIL SEAL,FORK 13 44009-011 2
OIL SEAL,FORK 13 44009-020 2 F9C
TUBE,LH,FORK OUTER 14 44005-053 1
SCREW 15 44041-062 2
GASKET FORK DRAIN PL 16 44045-002 2
BOLT-FORK CYLINDER 17 44041-040 2
HOLDER,FRONT AXLE 18 44063-007 2
WASHER SPRING 8MM 19 461F0800 6
NUT,8MM 20 311B0800 4
PISTON FORK 21 44018-003 2
CIRCLIP FORK PISTON 22 44044-008 2
BOLT STRNG STEM HEAD 23 44041-007 1
WASHER STRNG STEM HD 24 44043-016 1
HEAD,STEERING STEM 25 44039-060 1
BOLT-STEERING STEM H 26 44041-044 2
BOLT-STEERING STEM H 27 44041-042 1
NUT,LOCK,8MM 28 92015-1124 1
GASKET FORK CYL BOLT 29 44045-030 2
BOLT-HEX HEAD,12X36 30 92003-064 2
WASHER SPRING 12MM 31 461F1200 2
TUBE,RH,FORK OUTER 32 44006-051 1
GUIDE-CABLE 33 54030-007 1
BOLT SMALL 34 114G0812 2
BOLT SMALL 34 114G0812 AL
WASHER SPRING 8MM 35 461F0800 2
BRACKET-HEAD LAMP,BL 36 23064-010-21 2
BOLT-HEX HEAD,6X18 37 92007-027 4
WASHER SPRING 6MM 38 461F0600 5
WASHER PLAIN 6MM 39 411B0600 5
DAMPER RUBBER 40 92075-059 2
REFLECTOR-REFLEX,FRN 41 28012-006 2
DAMPER RUBBER 42 92075-137 2
CLAMP 43 92037-083 1
BOLT-UPSET 6X14 44 112B0614 1
WASHER SPRING 5MM 45 461F0500 2
NUT,5MM 46 311B0500 2
STEM,STEERING 47 44037-055 1
CONE STERNG BERG LOW 48 92047-010 1
