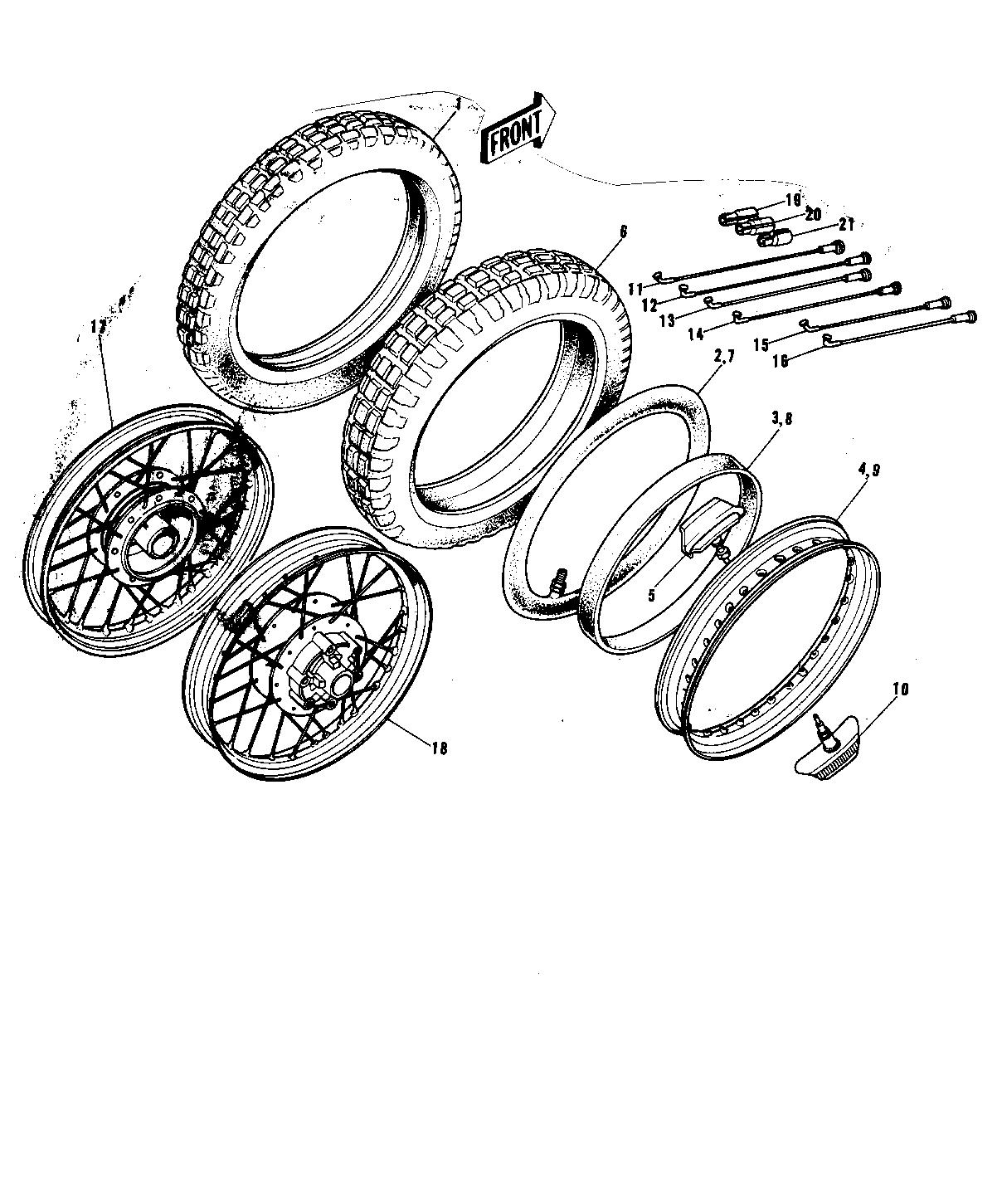

1972 F9 - WHEELS/TIRES ('74-'75 F9-B/F9-C 350)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| UNAVAILABLE IN PRICE BOOK | 1 | 41019-008 | 1 | FRONT | |
| TUBE,2.75/3.70-21 | 2 | 41022-1021 | 1 | FRONT | |
| BAND,RIM,3.00-21 | 3 | 41023-1001 | 1 | FRONT | |
| RIM,1.6AX21 | 4 | 41025-050 | 1 | FRONT | |
| PROTECTOR-BEAD 1.60A | 5 | 41024-006 | 1 | FRONT | |
| UNAVAILABLE IN PRICE BOOK | 6 | 41019-002 | 1 | REAR | |
| UNAVAILABLE IN PRICE BOOK | 7 | 41022-024 | 1 | BEAR | |
| BAND,RIM,4.00/5.10-1 | 8 | 41023-1006 | 1 | BEAR | |
| RIM,1.85BX18W | 9 | 41025-045 | 1 | REAR | |
| PROTECTOR-BEAD 1.85B | 10 | 41024-007 | 2 | BEAR | |
| SPOKE-ASY,FR INNER | 11 | 41027-072 | 18 | 102 X 196.5M/M | |
| SPOKE-ASY FR OUTER | 12 | 41028-071 | 18 | 85 X 196.5M/M | |
| SPOKE-ASY,RR INNER L | 13 | 41027-040 | 9 | 111 X 172.5M/M | |
| SPOKE-ASY,RR OUTER L | 14 | 41028-039 | 9 | 75.5 X 171.4M/M | |
| SPOKE-ASY,RR INNER R | 15 | 41027-041 | 9 | 103.5 X 163.7M/M | |
| SPOKE-ASY,FR OUTER L | 16 | 41028-040 | 9 | 76 X 162.3M/M | |
| WHEEL ASSY,FRONT | 17 | 41074-035 | 1 | 1.60A X 21 | |
| WHEEL ASSY,REAR | 18 | 42048-025 | 1 | 1.85B X 18W | |
| WEIGHT,BALANCE,10G | 19 | 41075-1007 | AR | ||
| WEIGHT,BALANCE,20G | 20 | 41075-1008 | AR | ||
| WEIGHT,BALANCE,30G | 21 | 41075-1009 | AR |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | FRONT |
| TUBE,2.75/3.70-21 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | FRONT |
| BAND,RIM,3.00-21 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | FRONT |
| RIM,1.6AX21 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | FRONT |
| PROTECTOR-BEAD 1.60A | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | FRONT |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | REAR |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | BEAR |
| BAND,RIM,4.00/5.10-1 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | BEAR |
| RIM,1.85BX18W | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | REAR |
| PROTECTOR-BEAD 1.85B | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | BEAR |
| SPOKE-ASY,FR INNER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | 102 X 196.5M/M |
| SPOKE-ASY FR OUTER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | 85 X 196.5M/M |
| SPOKE-ASY,RR INNER L | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 111 X 172.5M/M |
| SPOKE-ASY,RR OUTER L | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 75.5 X 171.4M/M |
| SPOKE-ASY,RR INNER R | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 103.5 X 163.7M/M |
| SPOKE-ASY,FR OUTER L | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 76 X 162.3M/M |
| WHEEL ASSY,FRONT | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | 1.60A X 21 |
| WHEEL ASSY,REAR | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | 1.85B X 18W |
| WEIGHT,BALANCE,10G | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,20G | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,30G | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
