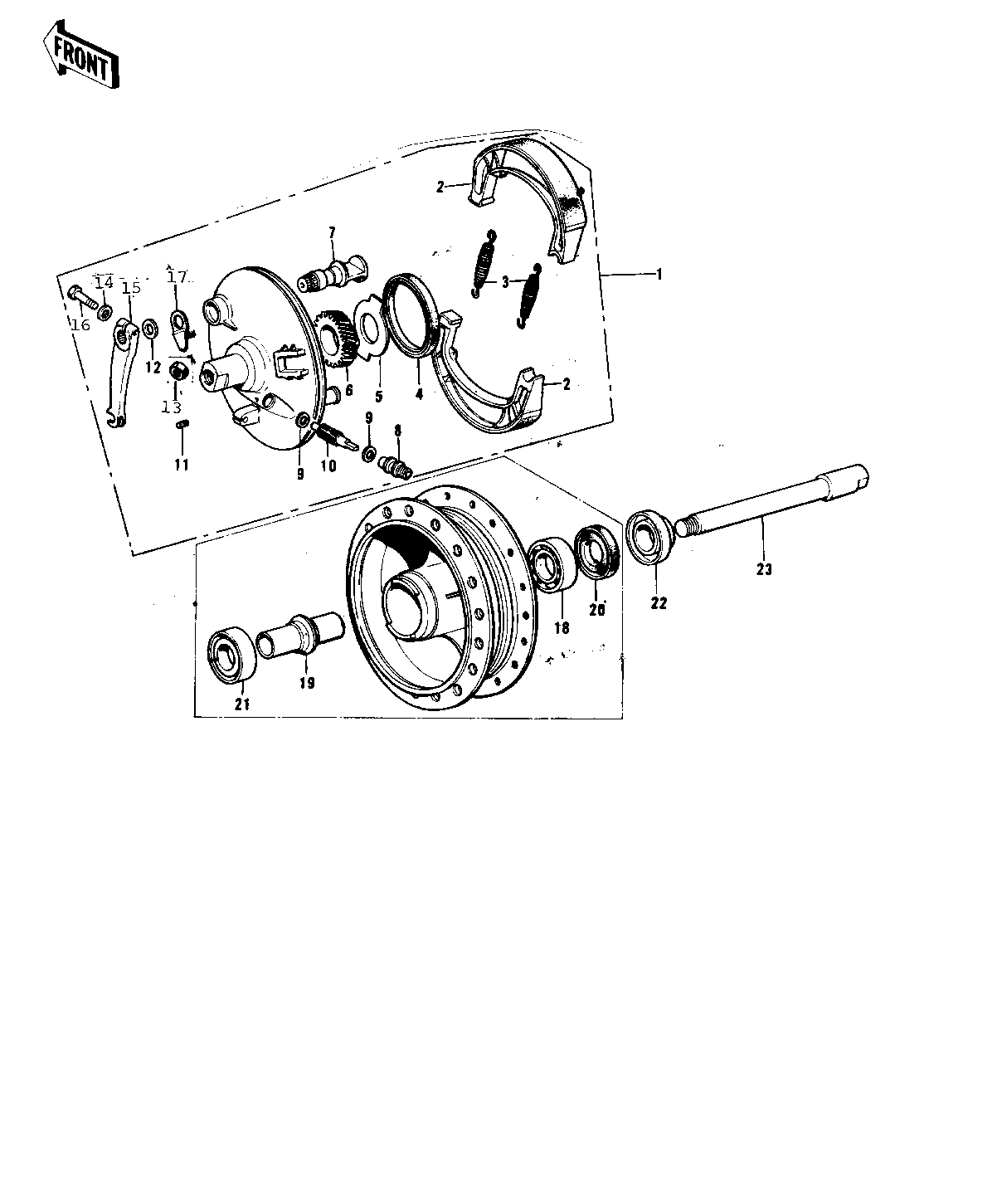

1972 F9 - FRONT HUB/BRAKE ('74-'75 F9-B/F9-C 350)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
PANEL-ASY,FR BRK BUF | 1~16 | 41035-045-80 | 1 | BUFF FINISH F9C | |
SHOE,BRAKE | 2 | 42019-011 | 2 | ||
SHOE,BRAKE | 2 | 42019-011 | 2 | F9C | |
SPRING-BRAKE SHOE | 3 | 42020-004 | 2 | ||
OIL SEAL F BRK PANEL | 4 | 92050-010 | 1 | ||
RECIEVER GEAR | 5 | 41064-003 | 1 | ||
GEAR-SPEEDOMETER | 6 | 41059-011 | 1 | 28T | |
CAM SHAFT,REAR BRAKE | 7 | 42026-021 | 1 | ||
CAM SHAFT,FRONT BRAK | 7 | 41050-015 | 1 | F9C | |
BUSH SPEEDMETER CABL | 8 | 41062-001 | 1 | ||
BUSH,SPEEDMETER CABL | 8 | 41062-005 | 1 | F9C | |
WASHER THRST SPD PIN | 9 | 41063-001 | 2 | ||
PINION-SPEEDOMETER | 10 | 41060-010 | 1 | ||
SCREW-BUSHING NET | 11 | 41070-004 | 1 | ||
PIN,SPRING | 11 | 41082-001 | 1 | F9C | |
DUST SHIELD BRAKE CA | 12 | 41051-001 | 1 | ||
NUT 6MM | 13 | 311B0600 | 1 | ||
WASHER PLAIN 6MM | 14 | 410B0600 | 1 | ||
LEVER,REAR BRAKE CAM | 15 | 42029-037 | 1 | ||
LEVER-BRAKE CAM | 15 | 41053-017 | 1 | F9C | |
BOLT 6X35 | 16 | 110R0635 | 1 | ||
BOLT-UPSET,6X35 | 16 | 112G0635 | AL | ||
BOLT-UPSET | 16 | 112G0625 | 1 | F9C | |
INDICATOR,FR BRK PNL | 17 | 41085-005 | 1 | ||
DRUM-ASSY,FR BRK | 18~21 | 41034-022 | 1 | ||
DRUM-ASSY,FR BRK,BUF | 18~21 | 41034-023-80 | 1 | F9C | |
BEARING BALL #6202Z | 18 | 601B6202Z | 1 | ||
SPACER FR HUB BEARIN | 19 | 41039-004 | 1 | ||
SPACER-FRONT HUB BER | 19 | 41039-020 | 1 | F9C | |
BEARING BALL #6202 | 20 | 601B6202 | 1 | ||
OIL SEAL RR BRK DRUM | 21 | 92050-008 | 1 | ||
COLLAR FRONT HUB R.H | 22 | 41069-004 | 1 | ||
COLLAR-FRONT AXLE | 22 | 41069-019 | 1 | F9C | |
AXLE-FRONT | 23 | 41068-029 | 1 | ||
AXLE-FRONT | 23 | 41068-037 | 1 | F9C | |
TORQUE LINK-FRNT BRK | 24 | 43007-022 | 1 | ||
WASHER-LOCK | 25 | 92088-012 | 2 | ||
BOLT-HEA HEAD,8X20 | 26 | 92001-086 | 2 |
