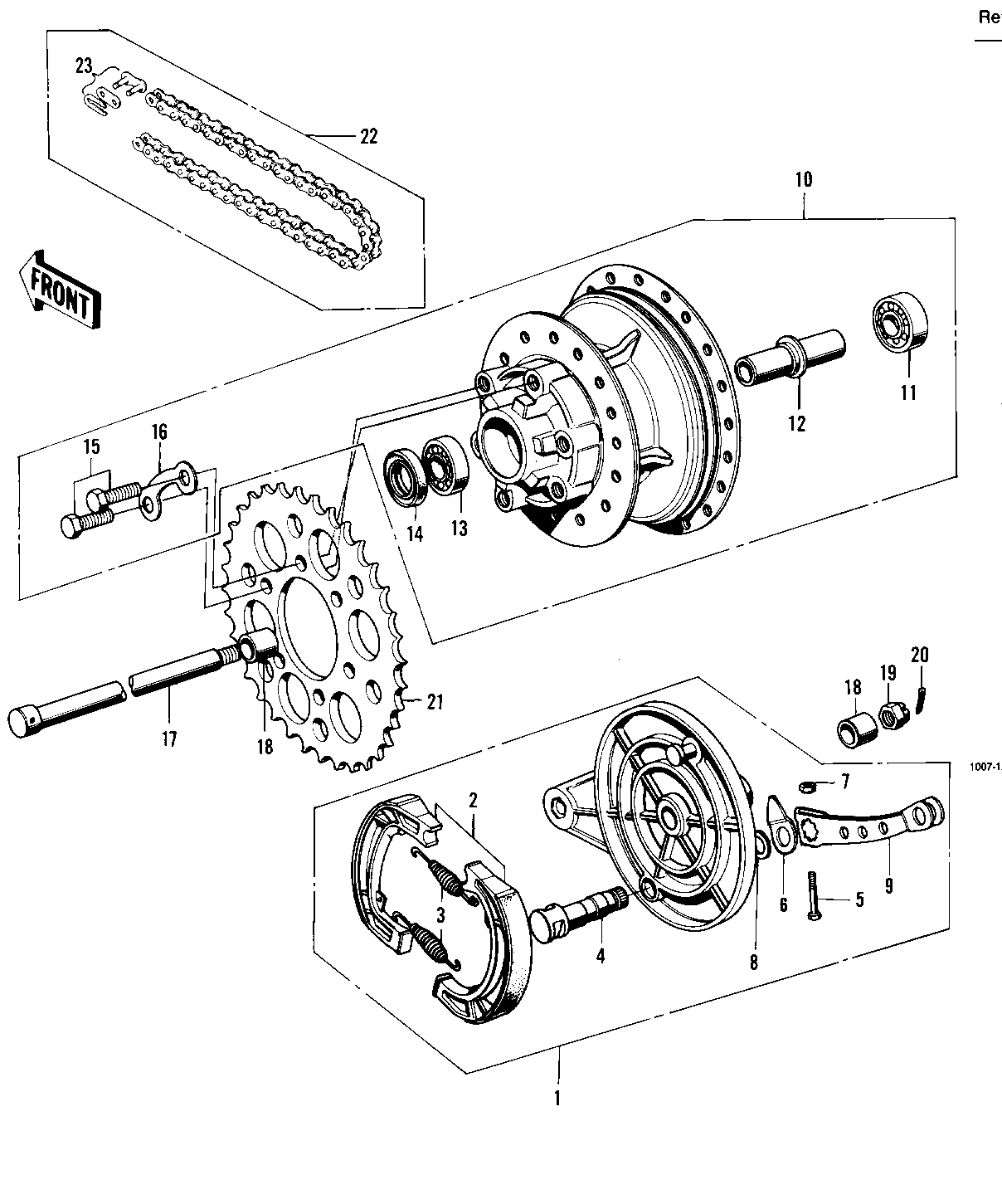

1972 F9 - REAR HUB/BRAKE/CHAIN ('74-'75 F9-B/F9-C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PANEL-ASY,RR BRK,BUF | 1 | 42006-042-80 | 1 | ||
| .SHOE,BRAKE | 2 | 42019-011 | 2 | F9-B | |
| SHOE,BRAKE | 2 | 42019-011 | 2 | F9-C | |
| .SPRING-BRAKE SHOE | 3 | 42020-004 | 2 | ||
| .CAM SHAFT,RR BRK PNL | 4 | 42026-016 | 1 | ||
| .BOLT-UPSET,6X40 | 5 | 112G0640 | 1 | ||
| INDICATOR,RR BRK PNL | 6 | 41085-006 | 1 | ||
| .NUT,6MM | 7 | 41072-007 | 1 | ||
| .DUST SHIELD BRAKE CA | 8 | 41051-001 | 1 | ||
| .LEVER,REAR BRAKE CAM | 9 | 42029-037 | 1 | ||
| LEVER,REAR BRAKE CAM | 9 | 42029-037 | 1 | ||
| DRUM ASSY,RR BRK,BUF | 10 | 42005-039-80 | 1 | ||
| .BEARING BALL #6303Z | 11 | 601B6303Z | 1 | ||
| .SPACER-RR HUB BEARIN | 12 | 42010-015 | 1 | L=116 MM | |
| .BEARING BALL #6303 | 13 | 601B6303 | 1 | ||
| .OIL SEAL FRONT AXLE | 14 | 654A254708 | 1 | ||
| .BOLT-HEX HEAD,10X25 | 15 | 92001-087 | 6 | ||
| .WASHER LOCK | 16 | 92088-007 | 3 | ||
| AXLE-REAR | 17 | 42031-036 | 1 | ||
| COLLAR-REAR AXLE | 18 | 42032-031 | 2 | ||
| NUT CASTLE 16M/M | 19 | 42045-014 | 1 | ||
| PIN-COTTER,4.0X35 | 20 | 550D4035 | 1 | ||
| REAR SPROCKET,41T | 21 | 42041-111 | 1 | STD | |
| REAR SPROCKET,43T | 21 | 42041-112 | (1 | OPTION | |
| REAR SPROCKET,45T | 21 | 42041-113 | (1 | OPTION | |
| REAR SPROCKET,47T | 21 | 42041-114 | (1 | OPTION | |
| DR CHAIN 525X92H | 22 | 695X5292 | 1 | SPECIAL GREASE | |
| CHAIN JOINT 525 | 23 | 92058-006 | 1 |
| PANEL-ASY,RR BRK,BUF | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| .SHOE,BRAKE | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | F9-B |
| SHOE,BRAKE | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | F9-C |
| .SPRING-BRAKE SHOE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| .CAM SHAFT,RR BRK PNL | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| .BOLT-UPSET,6X40 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INDICATOR,RR BRK PNL | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| .NUT,6MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| .DUST SHIELD BRAKE CA | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| .LEVER,REAR BRAKE CAM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,REAR BRAKE CAM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DRUM ASSY,RR BRK,BUF | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| .BEARING BALL #6303Z | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| .SPACER-RR HUB BEARIN | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | L=116 MM |
| .BEARING BALL #6303 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| .OIL SEAL FRONT AXLE | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| .BOLT-HEX HEAD,10X25 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| .WASHER LOCK | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| AXLE-REAR | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR-REAR AXLE | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT CASTLE 16M/M | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,4.0X35 | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REAR SPROCKET,41T | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | STD |
| REAR SPROCKET,43T | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | OPTION |
| REAR SPROCKET,45T | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | OPTION |
| REAR SPROCKET,47T | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | (1 |
| DESTINATION | |
| REMARKS | OPTION |
| DR CHAIN 525X92H | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | SPECIAL GREASE |
| CHAIN JOINT 525 | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
