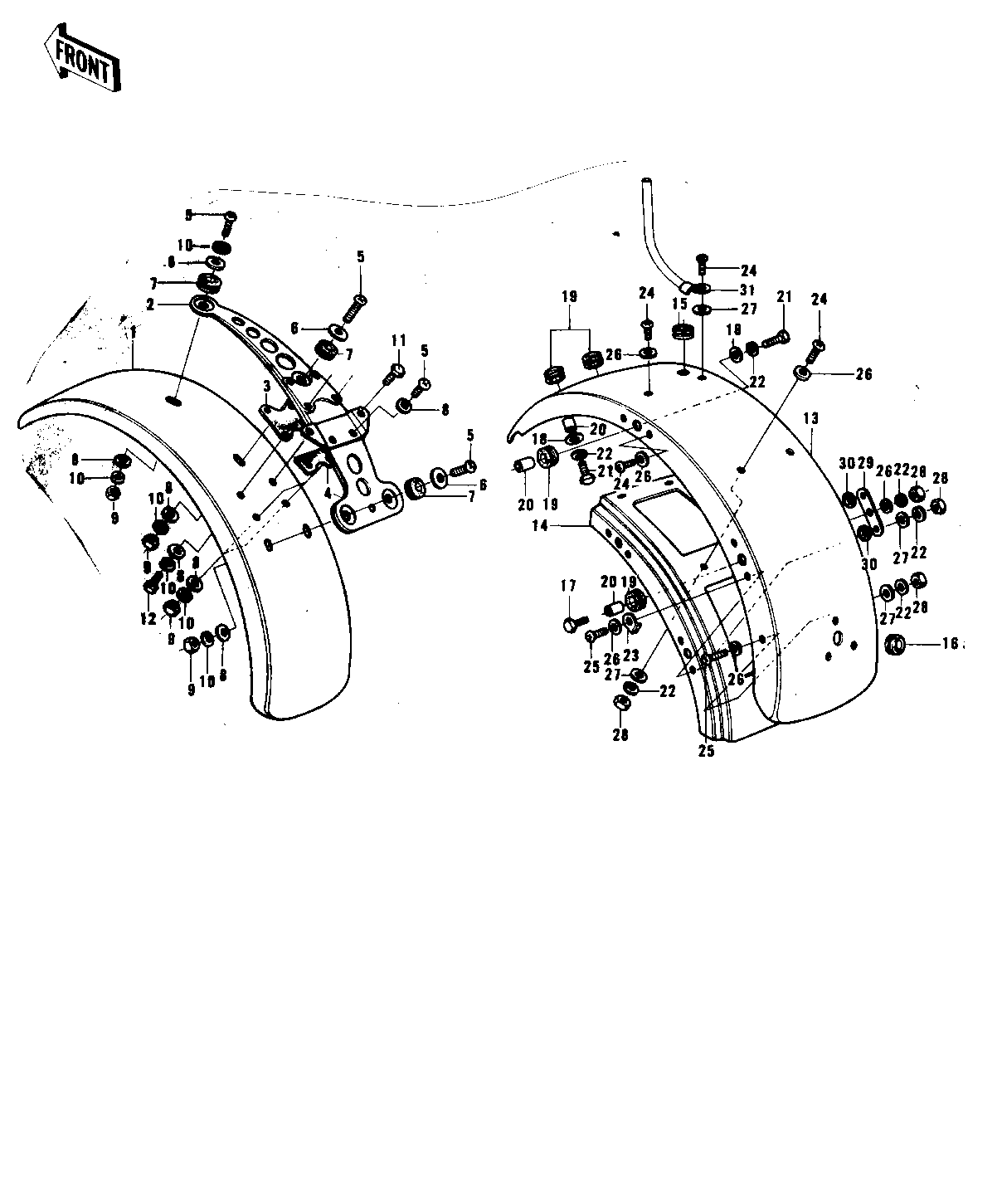

1972 F9 - FENDERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FR,C.GOLD 1 35004-088-1V 1
FENDER-FR,SILVER 1 35004-088-1W 1 F9C
BRACKET,FRONT FENDER 2 35012-019 1
DAMPER RUBBER-F.FEND 3 35007-002 1
DAMPER RUBBER-FR FND 4 35007-003 1
SCREW-PAN HEAD,6X18 5 220E0618 6
WASHER 6.5X20X1.6T 6 92022-125 4 0.D=200
DAMPER RUBBER 7 92075-051 4
WASHER PLAIN 8 92022-024 8
NUT 6MM 9 311B0600 6
WASHER SPRING 6MM 10 461F0600 10
BOLT-UPSET 11 112G0625 2
BOLT-UPSET 11 112G0625 AL
BOLT-UPSET,6X40 12 112G0640 2
FENDER-RR,C.GOLD 13 35022-075-1V 1
FENDER-RR,M.SILVER 13 35022-075-1W 1 F9C
BRACE-REAR FENDER 14 35034-010 1
GROMMET HARNESS 10MM 15 92071-010 1
GROMMET HARNESS 10MM 16 92071-019 1
BOLT HEX HEAD 6X18 17 110N0618 2
WASHER 6.5X20X1.6T 18 92022-125 4
DAMPER RUBBER 19 92075-051 6
COLLAR 20 92027-103 6
BOLT-UPSET,6X20 21 112G0620 2
BOLT-UPSET,6X20 21 112G0620 AL
WASHER SPRING 6MM 22 461F0600 20
CLIP WIRING HARNESS 23 35024-002 1
COLLAR,RR HUB COUPLN 23 42037-023 1 F9C
SCREW PAN HEAD 6X14 24 220B0614 7
SCREW PAN HEAD 6X14 25 220B0614 7
WASHER PLAIN 26 92022-024 18
WASHER PLAIN 6MM 27 411B0600 10
NUT 6MM 28 311B0600 12
WASHER-PLAIN 29 92022-200 4
DAMPER RUBBER 30 92075-097 8
CLAMP CABLE 31 92037-020 1
CLIP WIRING HARNESS 31 35024-002 2 F9C
