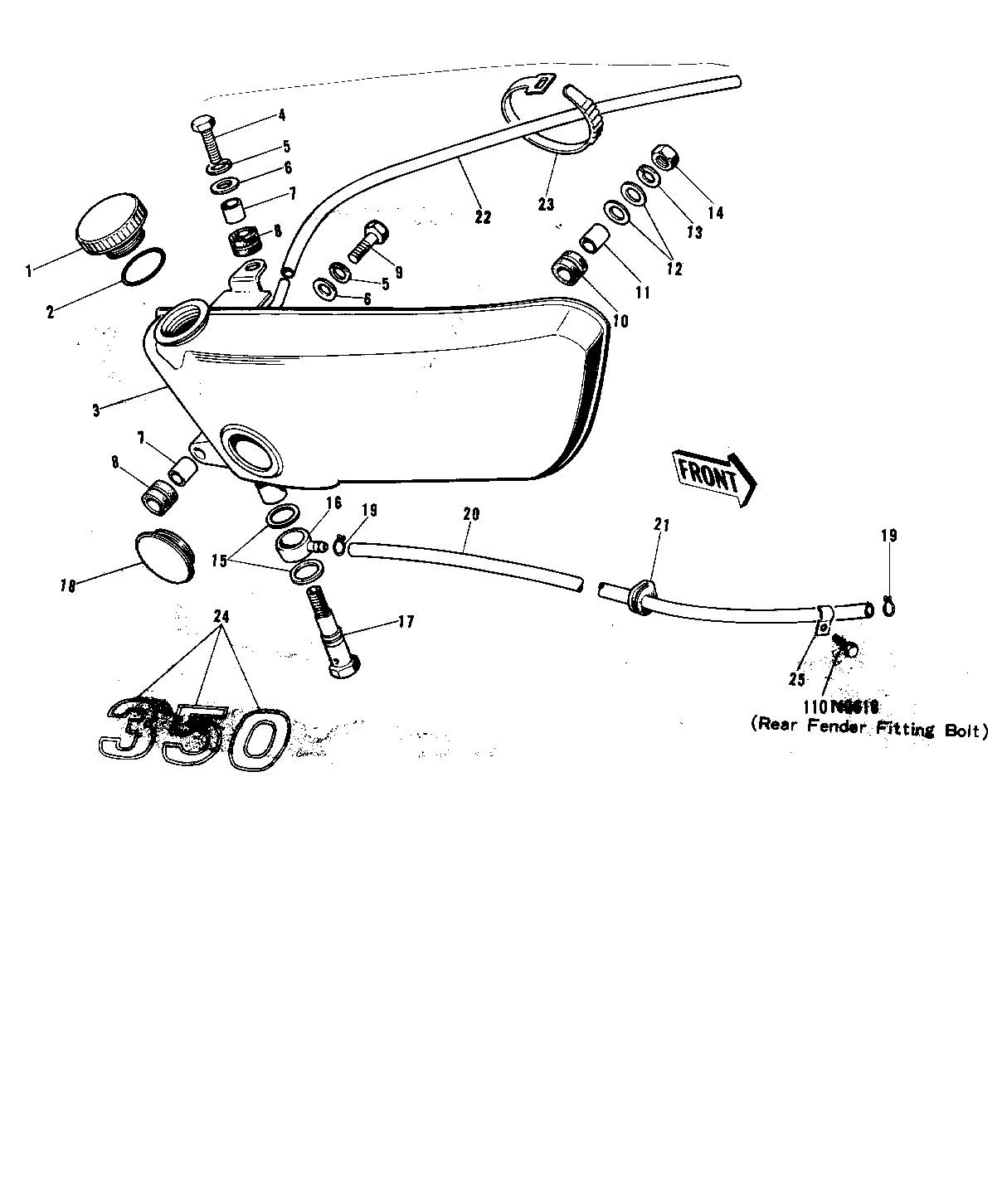

1972 F9 - OIL TANK ('74-'75 F9-B/F9-C 350)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP OIL TANK | 1 | 52003-009 | 1 | ||
"0" RING,36MM | 2 | 670B3036 | 1 | ||
TANK,OIL,F.BLACK | 3 | 52001-020-21 | 1 | ||
BOLT-UPSET | 4 | 112G0625 | 1 | ||
WASHER SPRING 6MM | 5 | 461F0600 | 2 | ||
WASHER 6.5X20X1.6T | 6 | 92022-125 | 2 | 1.D=6.50 | |
COLLAR | 7 | 92027-103 | 2 | 0.D=100 | |
DAMPER RUBBER | 8 | 92075-051 | 2 | 1.D=90 | |
BOLT-UPSET | 9 | 112G0618 | 1 | ||
DAMPER RUBBER-MUFFLE | 10 | 18063-005 | 1 | 1.D=11.50 | |
COLLAR | 11 | 92027-102 | 1 | 0.D=120 | |
WASHER FUEL TANK FIT | 12 | 92022-035 | 2 | 1.D=80 | |
WASHER SPRING 8MM | 13 | 461F0800 | 1 | ||
NUT,8MM | 14 | 311B0800 | 1 | ||
GASKET,10,2X15X1.5T | 15 | 11009-1146 | 2 | ||
CONNECTOR BANJO | 16 | 92061-003 | 1 | ||
BOLT OIL TANK BANJO | 17 | 92060-001 | 1 | ||
GAUGE OIL LEVEL | 18 | 52015-001 | 1 | ||
CLAMP FUEL PIPE | 19 | 92037-010 | 2 | ||
PIPE | 20 | 92059-064 | 1 | L=580 M\M | |
GROMMET-OIL PIPE | 21 | 92071-041 | 1 | ||
TUBE-VINYL,5X540 | 22 | 700Q05540 | 1 | ||
BAND,SHORT | 23 | 92072-030 | 1 | ||
EMBLEM,OIL TANK | 24 | 56018-132 | 1 | ||
EMBLEM,OIL TANK | 24 | 56018-188 | 1 | F9C | |
CLAMP CABLE | 25 | 92037-020 | 1 |
