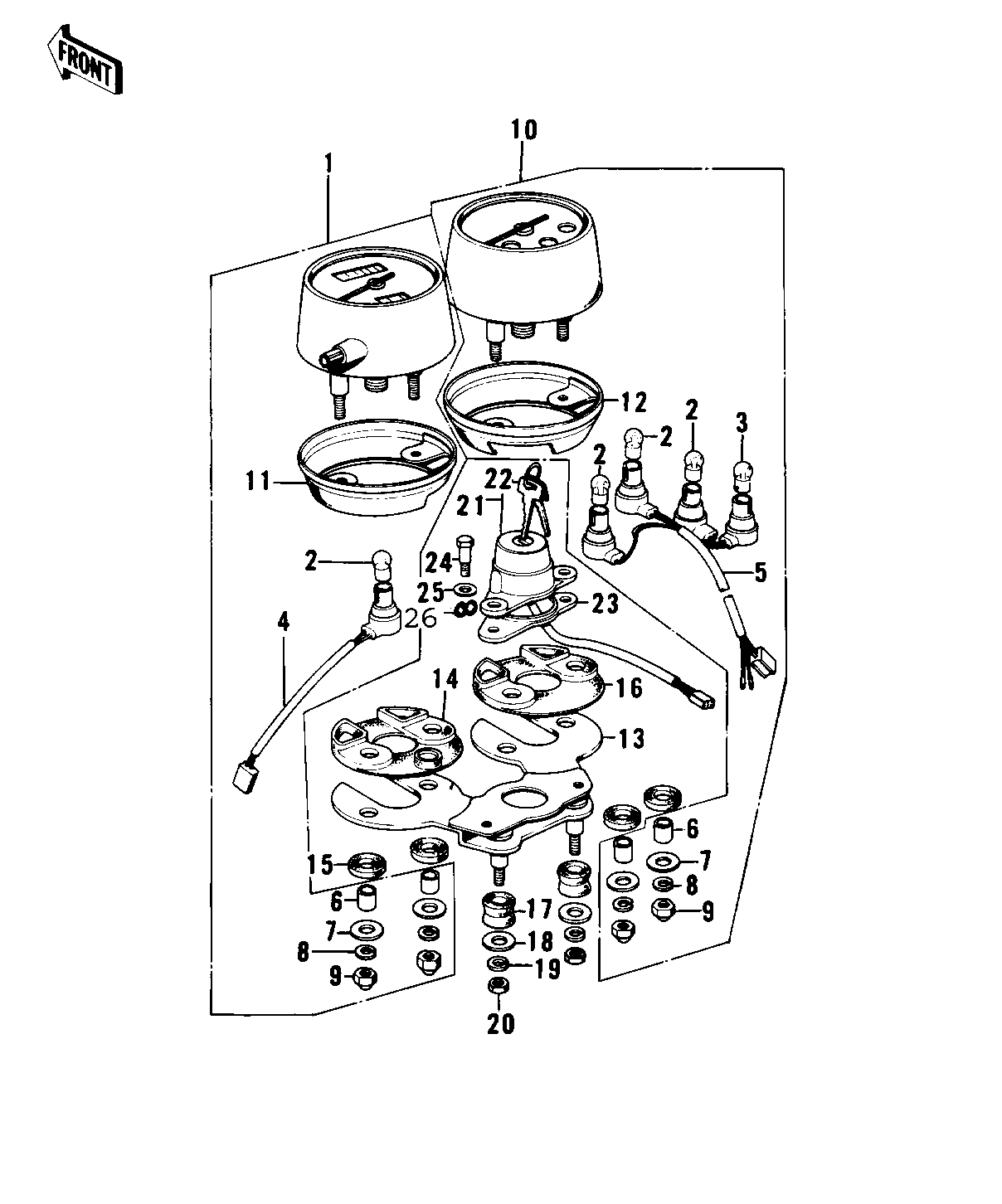

1972 F9 - METERS/IGNITION SWITCH

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPEEDOMETER ASSY,MPH 1 25005-096 1
BULB 6V 1.5W 2 92069-024 4
BULB-6V 3W 3 92069-053 1
SOCKET,SPEEDOMETER 4 25010-015 1
SOCKET,TACHOMETER 5 25011-039 1
COLLAR,METER FITTING 6 25021-004 4
WASHER PL 5.2X18X1.2 7 92022-285 4
WASHER SPRING 5MM 8 461F0500 4
NUT-CAP,5MM 9 322N0500 4
TACHOMETER ASSY 10 25016-024 1
COVER-SPEEDOMETER 11 25012-017 1
COVER,TACHOMETER 12 25012-018 1
BRACKET,METER 13 25008-032 1
SHOCK DAMPER,METER 14 25019-018 1
DAMPER RUBBER,METER 15 25019-019 4
DAMPER RUBBER,METER 16 25019-020 1
DAMPER RUBB SPEEDMET 17 92075-024 2
WASHER 6.5X20X1.6T 18 92022-125 2
WASHER 6.5X22X1.6T 18 92022-237 2 F9C
WASHER SPRING 6MM 19 461F0600 2
NUT 6MM 20 311B0600 2
SWITCH ASSY,IGNITION 21 27005-068 1
KEY SET,#411 22 27008-063-11 1
KEY SET,#412 22 27008-063-12 1
KEY SET,#413 22 27008-063-13 1
KEY SET,#414 22 27008-063-14 1
KEY SET,#415 22 27008-063-15 1
KEY SET,#416 22 27008-063-16 1
KEY SET,#417 22 27008-063-17 1
KEY SET,#418 22 27008-063-18 1
KEY SET,#419 22 27008-063-19 1
KEY SET,#420 22 27008-063-20 1
DAMPER RUBBER 23 92075-077 1
BOLT-HEX HEAD,6MM 24 92007-026 2
WASHER PLAIN 8MM 25 410B0800 2
UNAVAILABLE IN PRICE BOOK 26 25002-022 2
