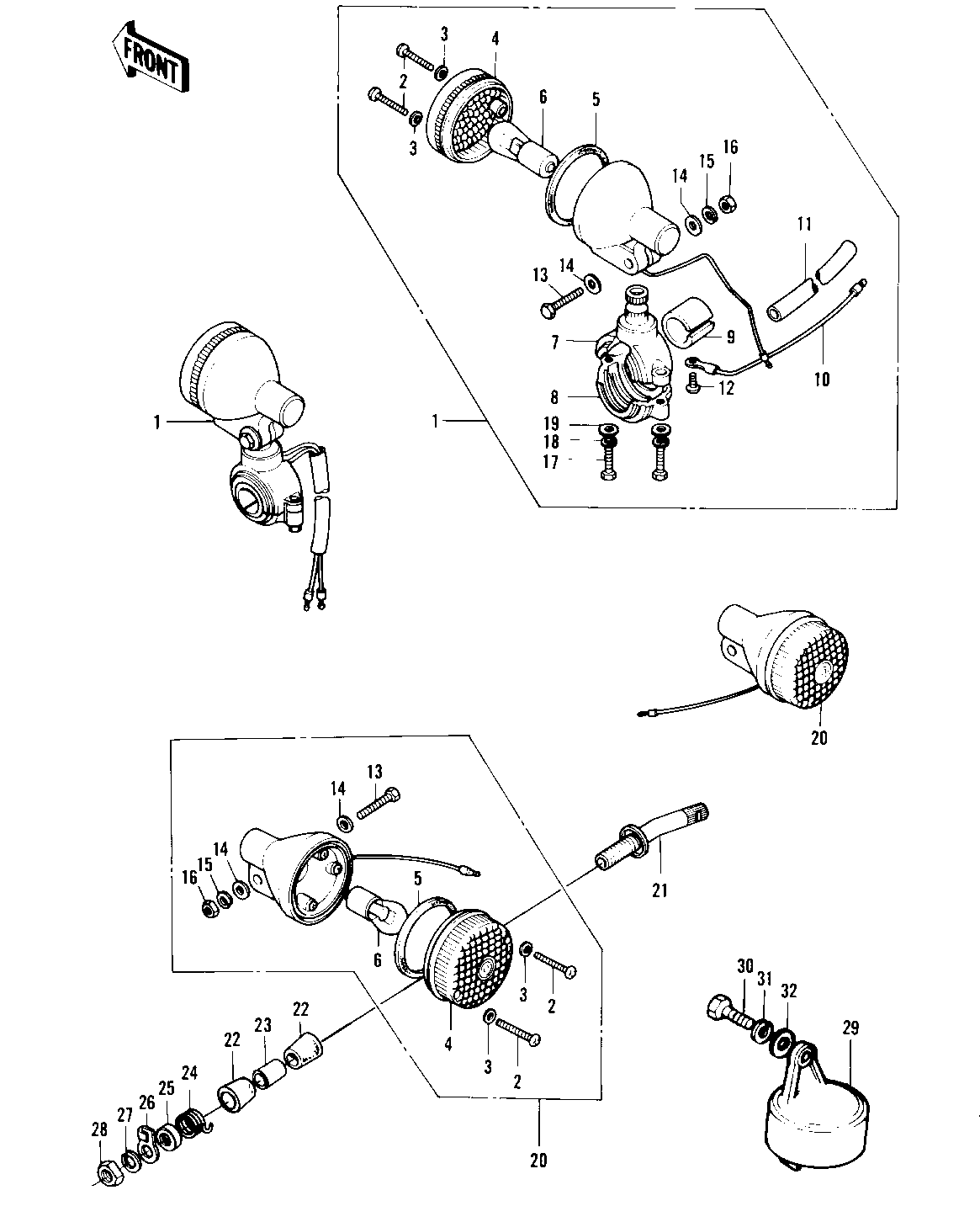

1972 F9 - TURN SIGNALS ('74-'75 F9-B/F9-C 350)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP ASY-FR TURN SIG 1 23037-005 2
SCREW-PAN HEAD,4X20 2 220E0420A 8
WASHER-PLAIN,4MM 3 23058-002 8
LENS,TURN SIGNAL LAM 4 23048-1001 4
LENS,TURN SIGNAL LAM 4 23048-1001 AL
GASKET-SIG LAMP LENS 5 23050-003 4
BULB, 6V 21CP 6 92069-056 4
BRACKET,SIGNAL LAMP 7 23051-1013 2
BRACKET,SIGNAL LAMP 7 23051-1013 AL
BRACKET,FRNT TURN SI 8 23051-1004 2
BRACKET,FRNT TURN SI 8 23051-1004 AL
DAMPER RUBBER 9 23066-003 2
WIRE TURN SIGNAL LEA 10 26011-081 2
COVER-WIRING HARNESS 11 26009-004 2
SCREW PAN HEAD 3X5 12 220B0305A 2
BOLT-UPSET 13 112G0630 4
BOLT-UPSET 13 112G0630 AL
WASHER PLAIN 6MM 14 410B0600 8
WASHER SPRING 6MM 15 461F0600 4
NUT 6MM 16 311B0600 4
BOLT 17 110N0516 4
WASHER SPRING 5MM 18 461F0500 4
WASHER-PLAIN,5MM 19 410D0500 4
LAMP-REAR TURN SIGNA 20 23040-033 2
BKT-RR SIGNAL LAMP 21 23051-037 2
DAMPER RUBBER 22 92075-148 4
COLLAR 12.7X17.3X30 23 92027-168 2
SPRING 24 92081-111 2
WASHER CUP 12.5X35X4 25 92022-235 2
CLAMP-RR SIGNAL LAMP 26 92037-087 2
WASHER,SPRING,12MM 27 461F1200 2
NUT-HEX-FINE,12MM 28 315B1200 2
RELAY-TURN SIGNAL 29 27002-015 1
SCREW PAN HEAD 6X16 30 220B0616 1
WASHER SPRING 6MM 31 461F0600 1
WASHER PLAIN 6MM 32 410B0600 1
