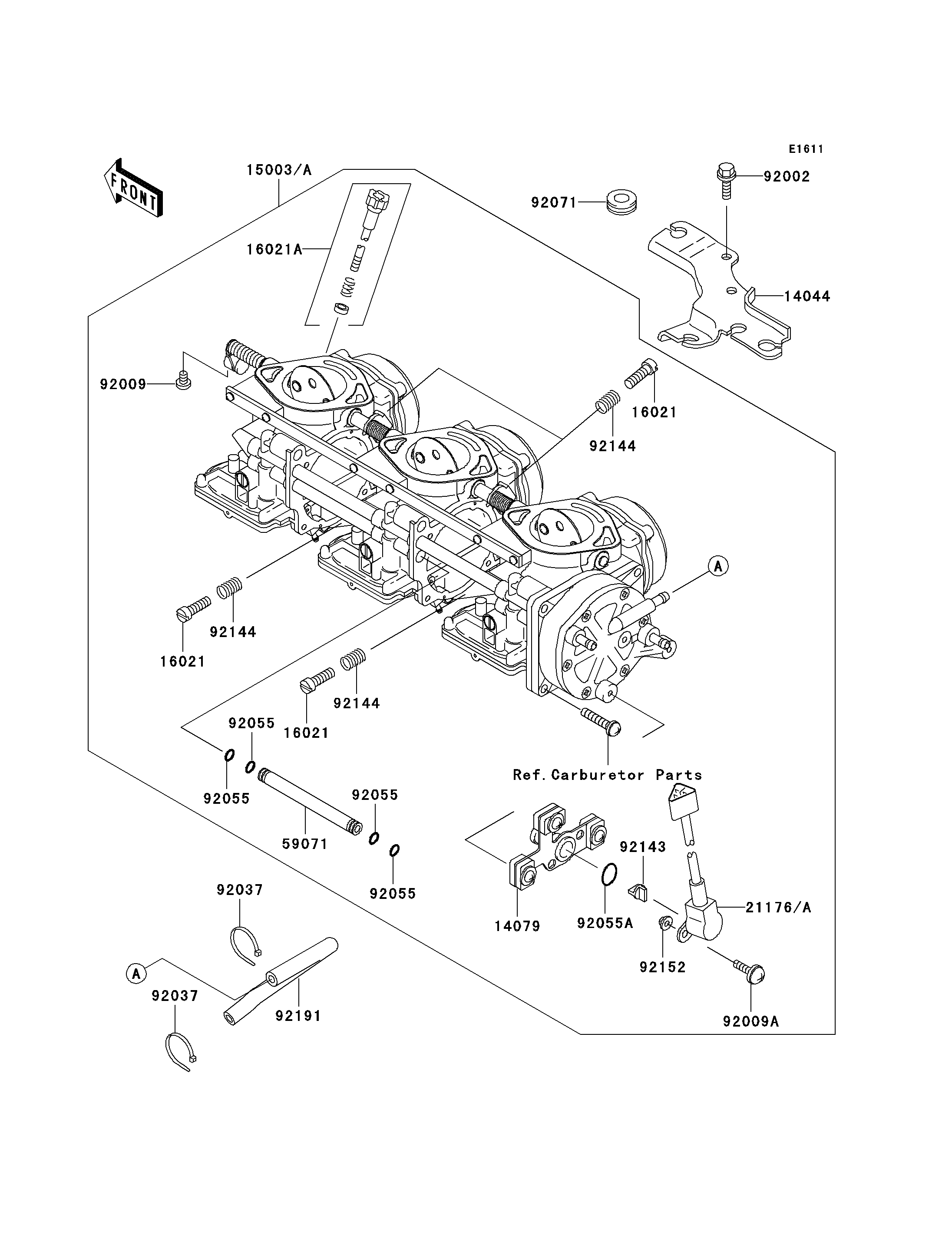

2000 Ultra 150 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
14044
14079
15003A
16021
16021
16021
16021A
21176A
59071
92002
92009
92009A
92037
92037
92055
92055
92055
92055
92055A
92071
92143
92144
92144
92144
92152
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-CABLE 14044 14044-3734 1
HOLDER-ASSY,SENSOR 14079 14079-3722 1
CARBURETOR-ASSY 15003A 15003-3739 1
SCREW-THROTTLE STOP 16021 16021-3704 4
SCREW-THROTTLE STOP 16021A 16021-3709 1
SENSOR 21176A 21176-3739 1
JOINT 59071 59071-3766 4
BOLT,6X16 92002 92002-3728 2
SCREW,4X6 92009 92009-3786 1
SCREW,SENSOR 92009A 92009-3863 2
CLAMP 92037 92037-1173 2
RING-O 92055 92055-1246 16
RING-O,SENSOR 92055A 92055-1574 1
GROMMET 92071 92071-1152 1
COLLAR 92143 92143-1907 1
SPRING,THROTTLE STOP SCREW 92144 92144-3745 4
COLLAR,SENSOR 92152 92152-3721 2
TUBE,PULSE 92191 92191-3838 1
