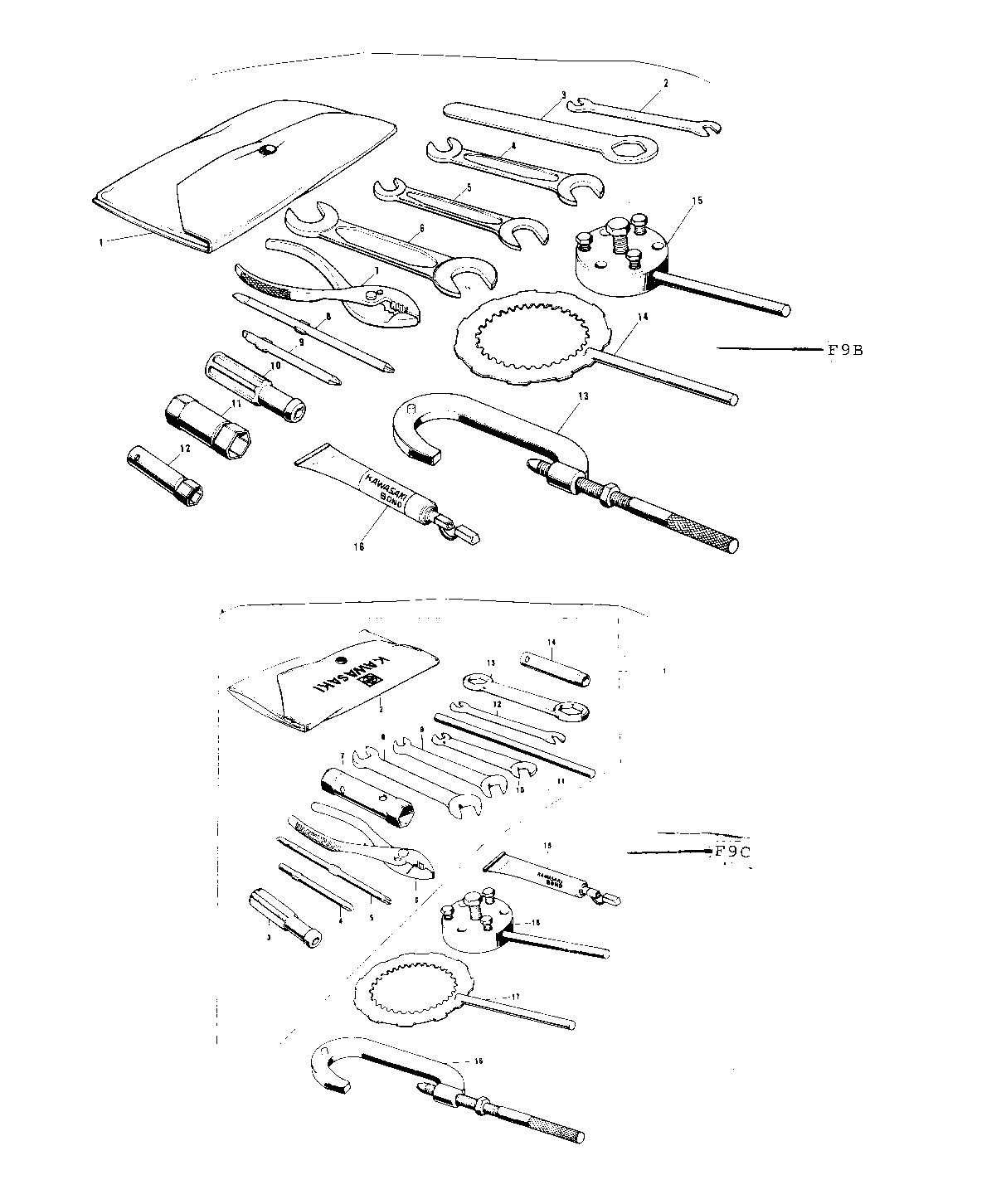

1972 F9 - OWNER TOOLS/SPECIAL SERVICE TOOLS ('74-'

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
UNAVAILABLE IN PRICE BOOK 1~12 56007-020 1
BAG,TOOL 1 56008-008 1
92108-011 (Canada) 2 92108-004 1
TIGHTONER-SPOKE 3 92109-003 1
UNAVAILABLE IN PRICE BOOK 4 960B1013 1
*** N.L.A.*** (Canada) 5 960B1014 1
*** N.L.A.*** (Canada) 6 960B1719 1
92112-003 (Canada) 7 92112-001 (1
UNAVAILABLE IN PRICE BOOK 7 92112-002 1
TOOL-DRIVER 8 92107-1052 1
SCREW DRIVER #3 PHLI 9 92107-005 1
92106-1001 (Canada) 10 92106-002 1
92110-012 (Canada) 11 92110-009 1
WRENCH BOX 10MM 12 92110-007 1
57001-1243 (Canada) 13 56019-040 1 OPTION
57001-1243 (Canada) 14 56019-067 1 OPTION
UNAVAILABLE IN PRICE BOOK 15 56019-068 1 OPTION
LIQUID GASKET 16 92104-002 1
TOOL KIT 1 56007-048 1
BAG,TOOL 2 56008-008 1
92106-1001 (Canada) 3 92106-002 1
SCREW DRIVER #3 PHLI 4 92107-005 1
TOOL-DRIVER 5 92107-1052 1
PLIERS,160MM 6 92112-003 1
WRENCH,BOX,17X21 7 92110-012 1
TOOL-WRENCH,OPEN END 8 92110-1153 1
WRENCH,OPEN END,12X1 9 92126-002 1
WRENCH,OPEN,8X10 10 92126-001 1
BAR,SPARK PLUG WRENC 11 92111-005 1
TIGHTENER,SPOKE 12 92108-011 1
92110-1022 (Canada) 13 92108-009 1
WRENCH BOX 10MM 14 92110-007 1
LIQUID GASKET 15 92104-002 10
57001-1243 (Canada) 16 56019-040 1
57001-1243 (Canada) 17 56019-067 1 OPTION
UNAVAILABLE IN PRICE BOOK 18 56019-068 1
