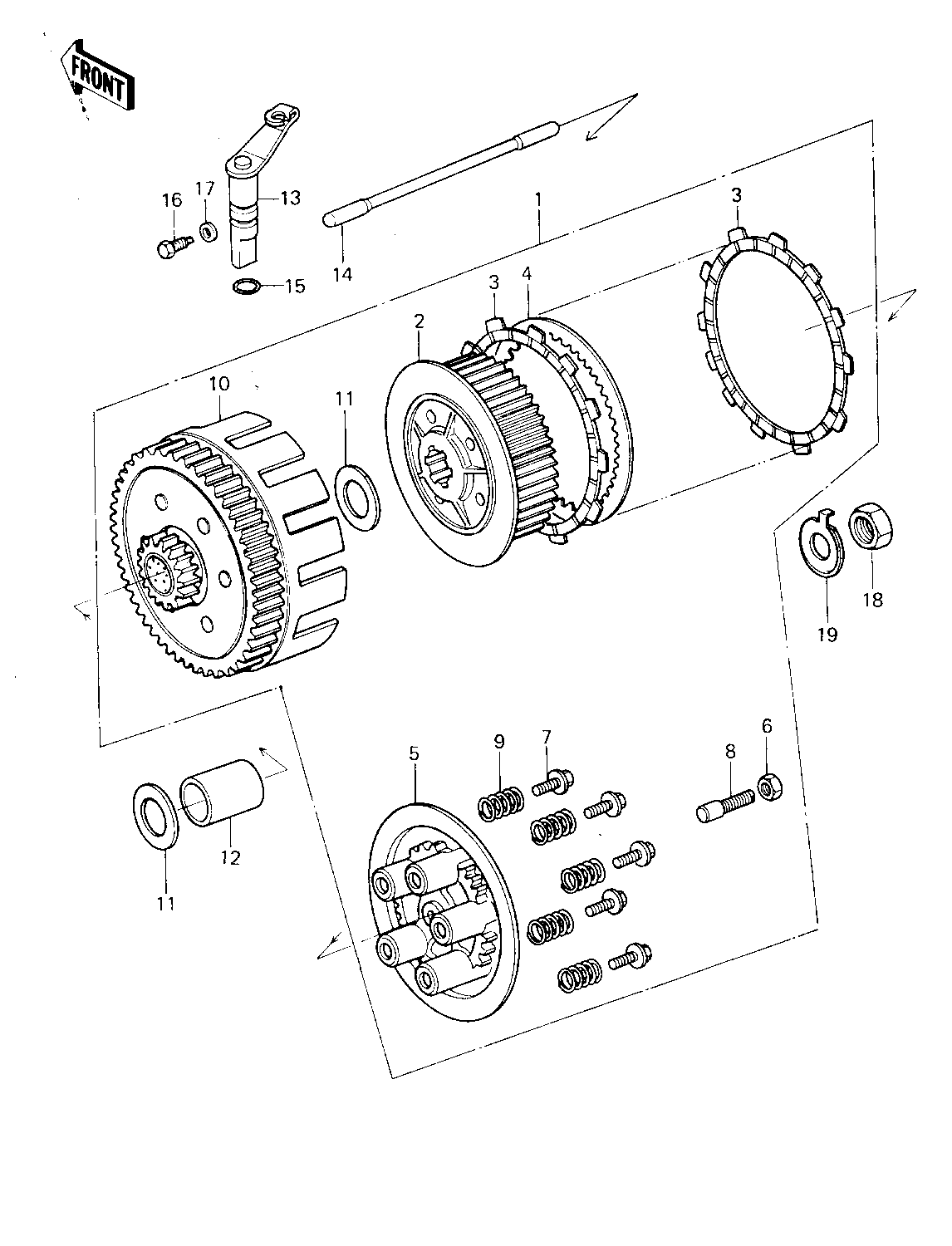

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CLUTCH-ASSY | 1 | 13081-1038 | 1 | ||
| HUB,CLUTCH | 2 | 13087-044 | 1 | ||
| PLATE,CLUTCH FRICTION | 3 | 13088-041 | 6 | ||
| PLATE,CLUTCH STEEL | 4 | 13089-025 | 5 | ||
| PLATE-CLUTCH OPERATIN | 5 | 13187-1009 | 1 | ||
| NUT 8MM | 6 | 318G0800 | 1 | KX250-A6 | |
| NUT,LOCK,8MM | 6 | 92015-1124 | 1 | KX250-A7 | |
| BOLT,CLUTCH SPR FITT | 7 | 92001-1066 | 5 | ||
| SCREW,SLOTTED,8X35 | 8 | 92014-017 | 1 | ||
| SPRING,CLUTCH | 9 | 92081-1151 | 5 | ||
| HOUSING,CLUTCH | 10 | 13095-1026 | 1 | ||
| WASHER,CLUTCH THRUST | 11 | 92022-282 | 2 | ||
| BUSHING,CLUTCH | 12 | 92028-1076 | 1 | ||
| LEVER ASSY,CLUTCH RLS | 13 | 13102-1005 | 1 | KX250-A6 | |
| RELEASE,CLUTCH | 13 | 13102-1006 | 1 | KX250-A6 | |
| ROD,CLUTCH PUSH | 14 | 13116-1021 | 1 | ||
| "O" RING,12MM | 15 | 670B2012 | 1 | KX250-A6 | |
| "0" RING, 10MM | 15 | 670B2010 | 1 | KX250-A7 | |
| BOLT,CLUTCH RELEASE | 16 | 92003-130 | 1 | ||
| GASKET,R.H ENG COVER | 17 | 92065-092 | 1 | ||
| NUT,LOCK,16MM | 18 | 92015-072 | 1 | ||
| WASHER,LOCK,16M/M | 19 | 92024-076 | 1 |
| CLUTCH-ASSY | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB,CLUTCH | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CLUTCH FRICTION | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| PLATE,CLUTCH STEEL | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH OPERATIN | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 8MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX250-A6 |
| NUT,LOCK,8MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX250-A7 |
| BOLT,CLUTCH SPR FITT | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| SCREW,SLOTTED,8X35 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| HOUSING,CLUTCH | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,CLUTCH THRUST | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BUSHING,CLUTCH | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER ASSY,CLUTCH RLS | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX250-A6 |
| RELEASE,CLUTCH | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX250-A6 |
| ROD,CLUTCH PUSH | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,12MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX250-A6 |
| "0" RING, 10MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KX250-A7 |
| BOLT,CLUTCH RELEASE | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,R.H ENG COVER | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,16MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK,16M/M | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
