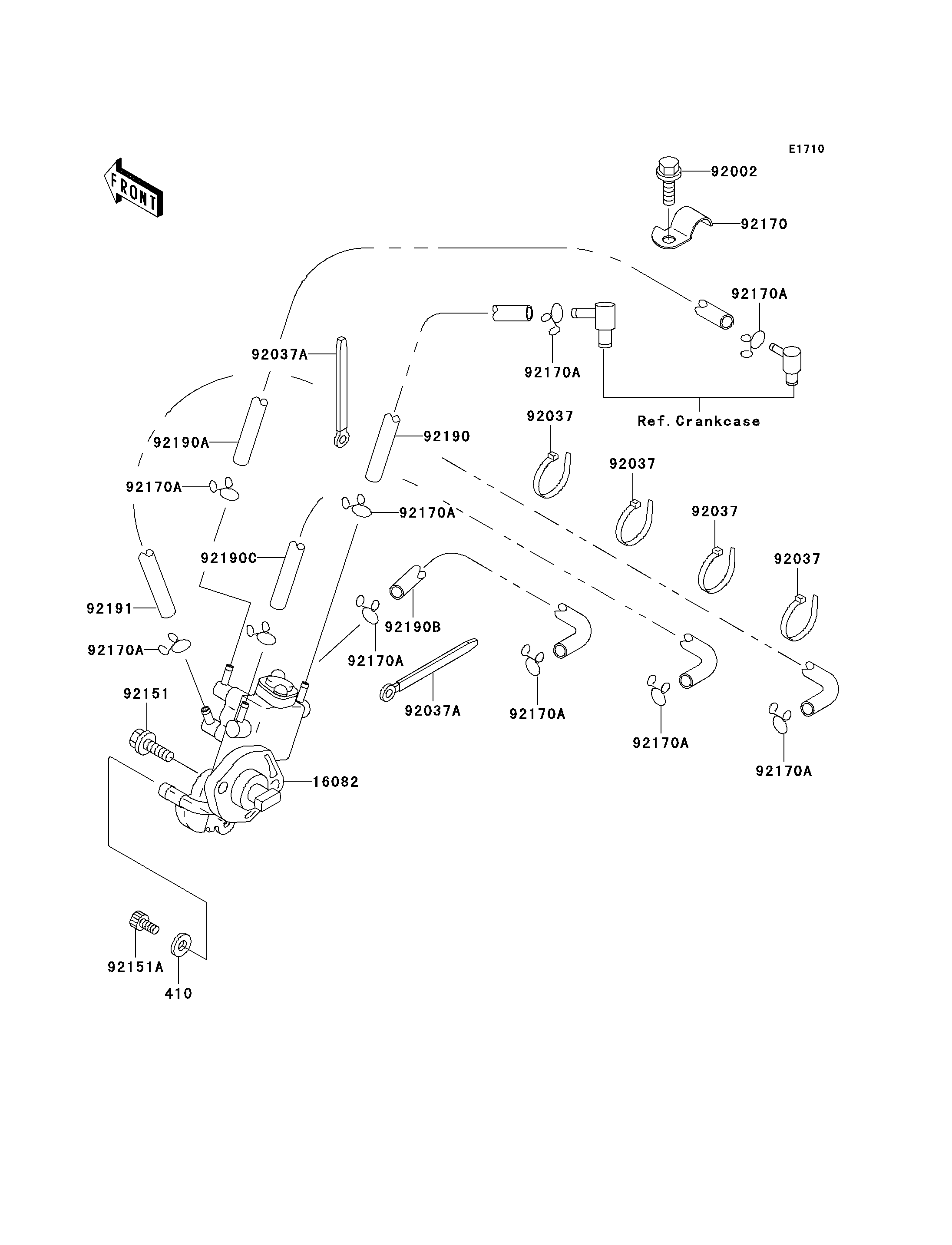

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
410
16082
92002
92037
92037
92037
92037
92037A
92037A
92151
92151A
92170
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92190
92190A
92190B
92190C
92191
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| W-PLAIN-S,5MM | 410 | 410S0500 | 1 | ||
| PUMP-ASSY-OIL | 16082 | 16082-3728 | 1 | ||
| BOLT,6X16 | 92002 | 92002-3728 | 1 | ||
| CLAMP | 92037 | 92037-1173 | 4 | ||
| CLAMP,L=100 | 92037A | 92037-3736 | 2 | ||
| BOLT,6X18 | 92151 | 92151-3751 | 2 | ||
| BOLT,SOCKET | 92151A | 92151-3772 | 1 | ||
| CLAMP | 92170 | 92170-3736 | 1 | ||
| CLAMP | 92170A | 92170-3750 | 10 | ||
| TUBE,3X6X120 | 92190 | 92190-1191 | 1 | ||
| TUBE,3X6X545 | 92190A | 92190-3907 | 1 | ||
| TUBE,3X6X420 | 92190B | 92190-3945 | 1 | ||
| TUBE,RR,CARBURETOR | 92190C | 92190-3967 | 1 | ||
| TUBE,3X6X650 | 92191 | 92191-3863 | 1 |
