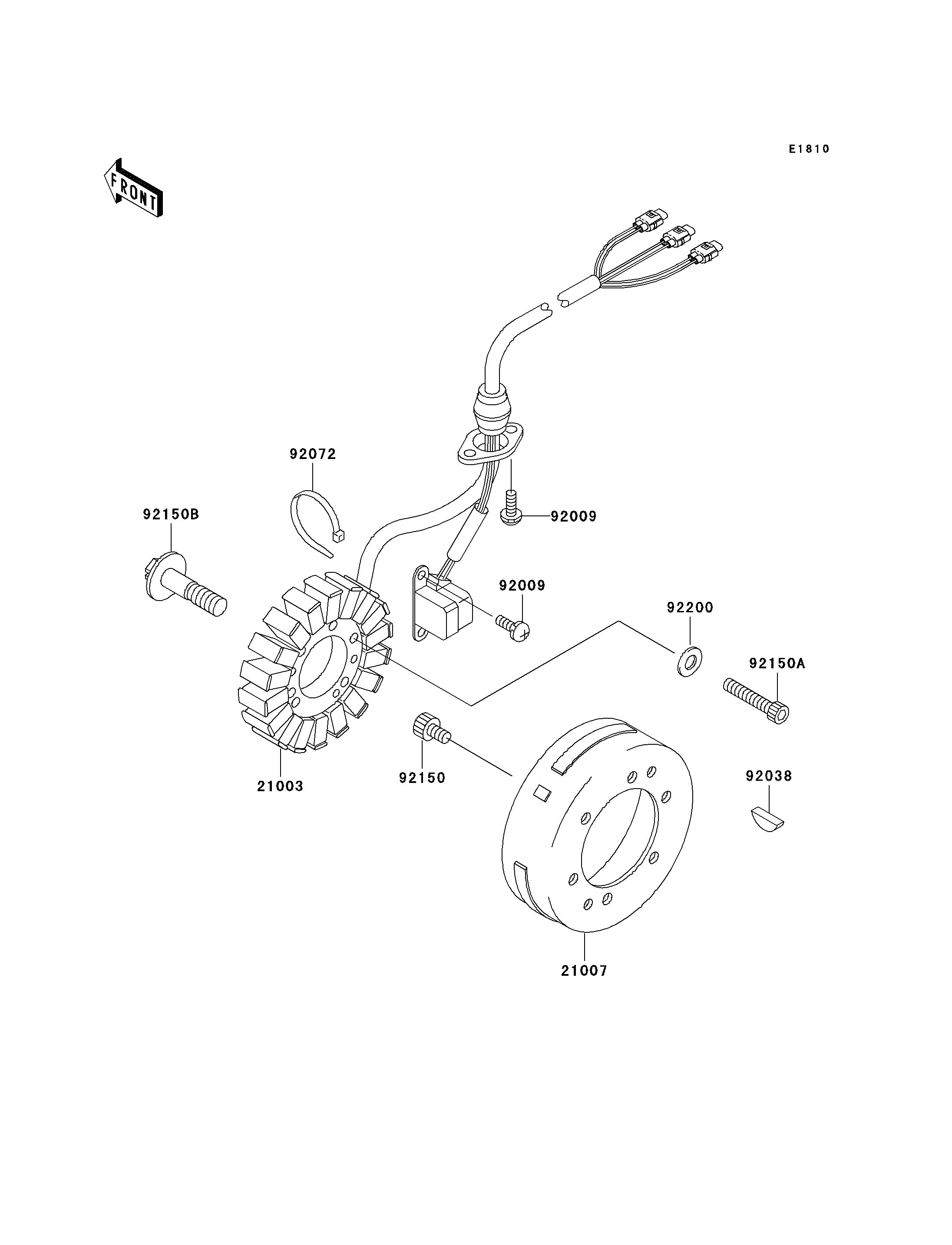

21003
21007
92009
92009
92038
92072
92150
92150A
92150B
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 21003 21003-3740 1
ROTOR 21007 21007-3723 1
SCREW,5X12 92009 92009-1296 4
KEY,WOODRUFF 92038 92038-001 1
BAND 92072 92072-3851 1
BOLT,SOCKET,6X10 92150 92150-1650 8
BOLT,SOCKET,5X25 92150A 92150-1684 3
BOLT 92150B 92150-3843 1
WASHER,5.1X9X1.5 92200 92200-3768 3
