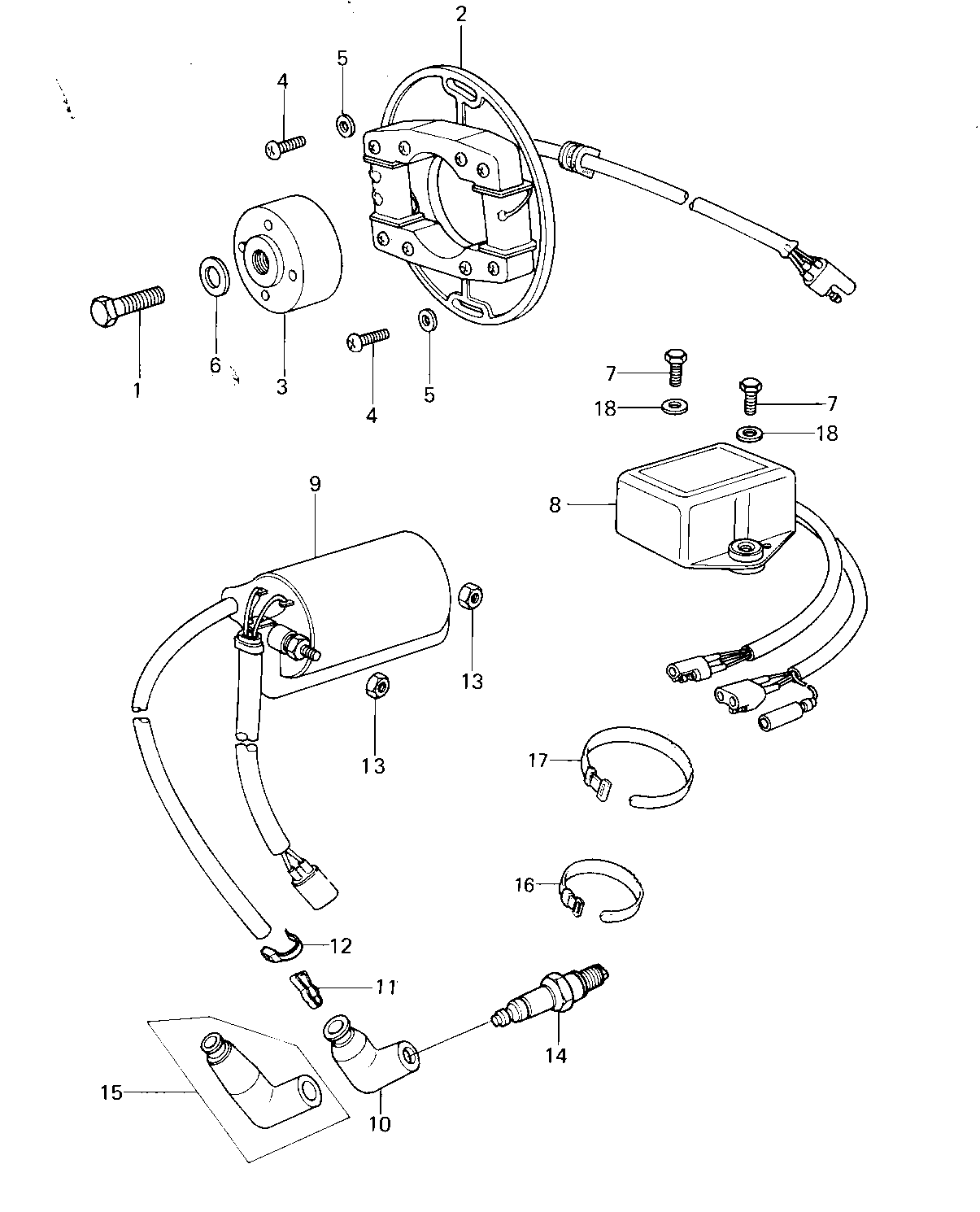

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT 1 92001-1578 1
STATOR ASSY,MAGNETO 2 21003-1019 1
ROTOR,MAGNETO 3 21007-1013 1
SCREW PAN HEAD 6X25 4 220B0625 2
WASHER PLAIN 6MM 5 410B0600 2
WASHER 8.5X23.5X4.5 6 92022-218 1
BOLT-UPSET 7 112G0618 2
IGNITION UNIT 8 21119-1010 1
COIL,IGNITION 9 21121-1007 1
CAP,SPARK PLUG 10 21130-1006 1
TERMINAL,PLUG CAP 11 21169-001 1
CLAMP,SPARK PLUG CAP 12 92037-1173 1
NUT 13 92019-008 2
SPARK PLUG B9EV 14 B9EV 1
SPARK PLUG BR9EV 14 92070-3002 1
CAP ASSY,SPARK PLUG 15 21160-1009 1
BAND,SHORT 16 92072-030 1
BAND,WIRING HARNESS 17 92072-056 2
WASHER PLAIN 18 92022-024 2
