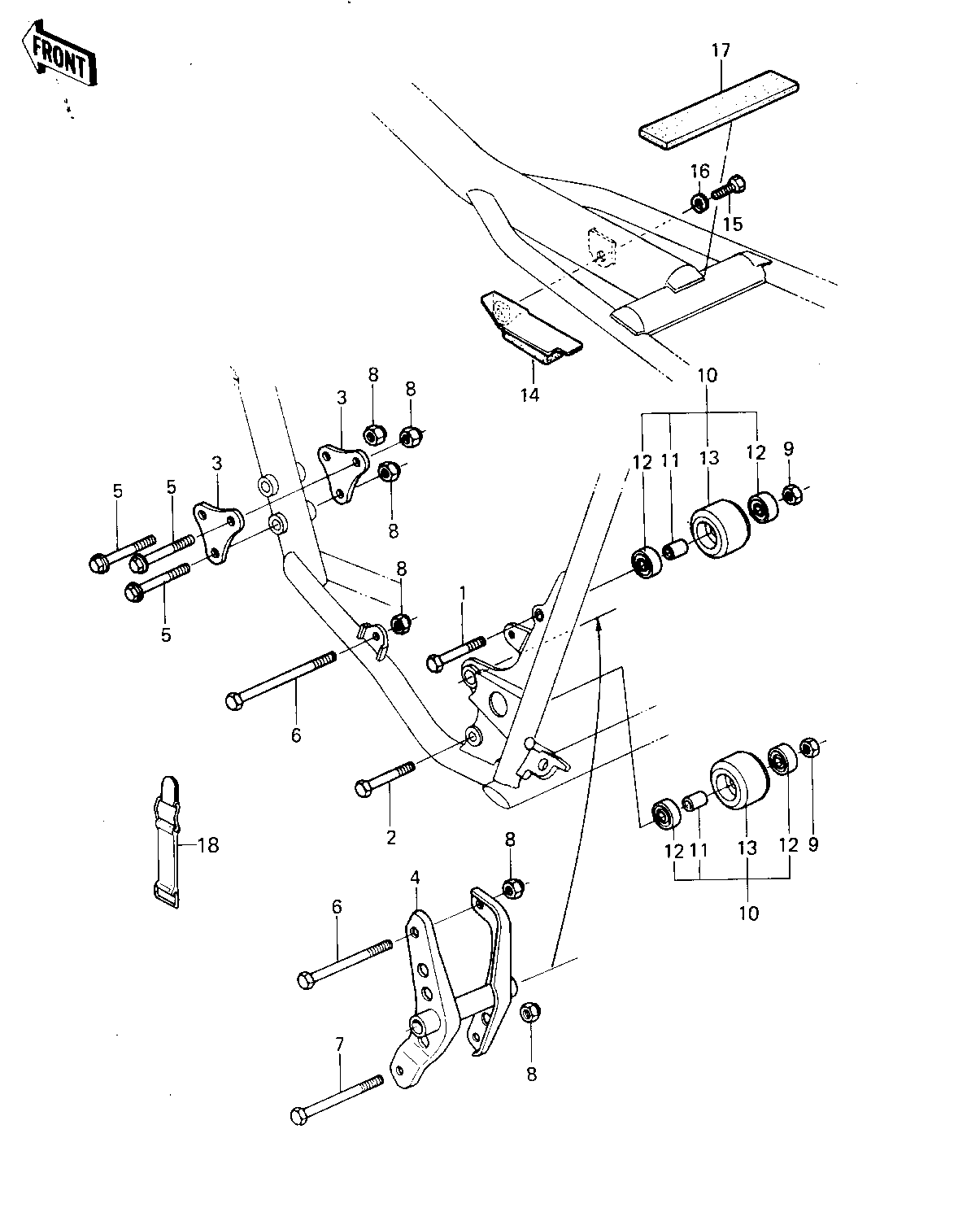

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,8X55 1 92001-1386 1
BOLT FLANGED,8X70 2 92001-1583 1
BRACKET-ENGINE 3 32029-1140 2
BRACKET,ENGINE REAR 4 32029-1123 1
BOLT,8X69 5 92001-1410 3
BOLT,FLANGED,8X90 6 92002-1416 2
BOLT,8X105 7 92001-1394 1
NUT,LOCK,8MM 8 92015-1124 6
NUT,LOCK,8MM 9 92015-1124 2
ROLLER,ASSY 10 92122-1013 2
COLLAR 11 92027-1081 2
BEARING,BALL 12 92045-1009 4
ROLLER 13 92122-1014 2
DAMPER,REAR SHOCK 14 92075-1249 1
BOLT SMALL 15 114G0812 1
WASHER SPRING 8MM 16 461F0800 1
SEAL 17 92093-1039 1
BAND,FUEL TANK 18 92072-076 1
