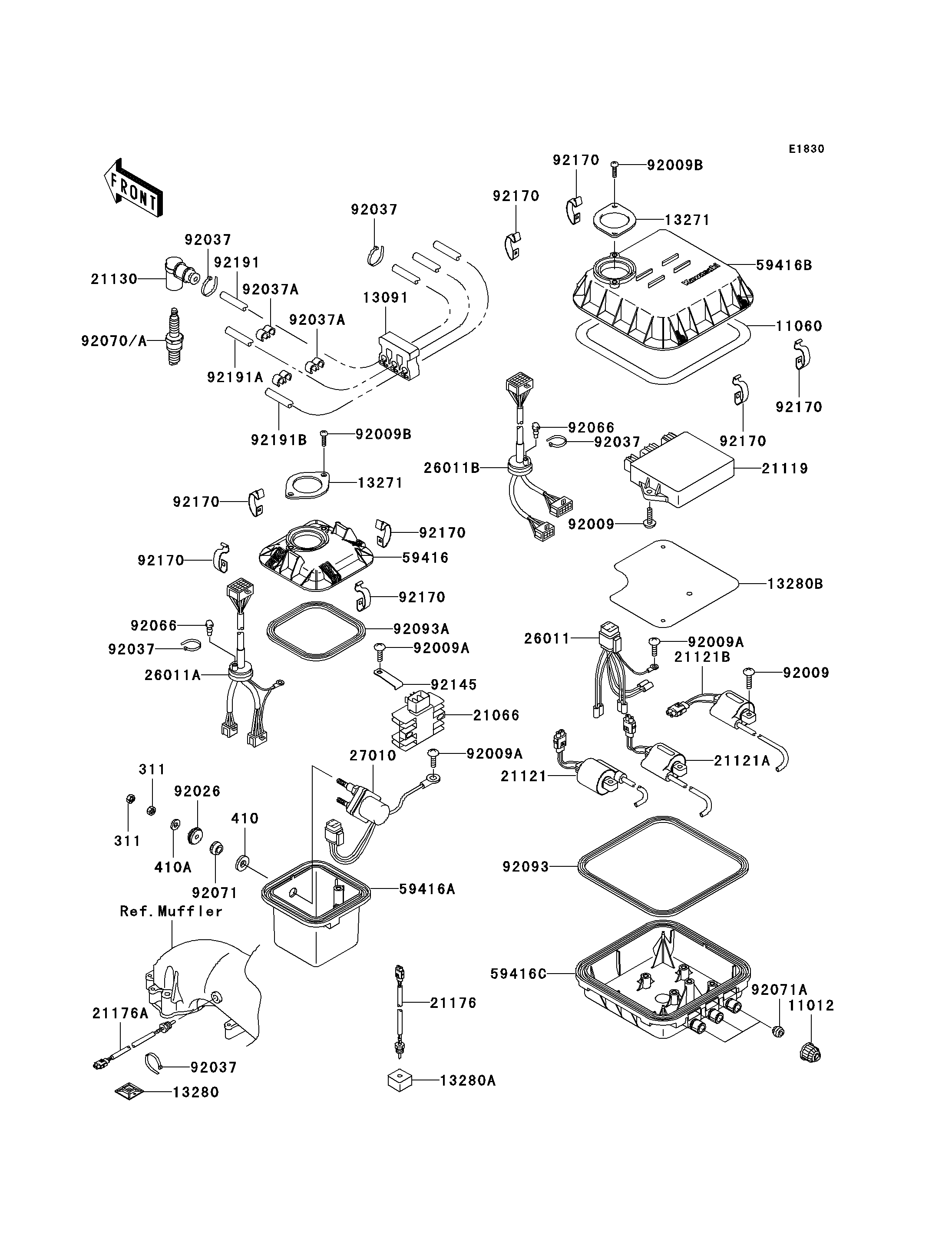

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11012
11012
11060
11060
13091
13091
13271
13271
13271
13271
13280
13280
13280A
13280A
13280B
13280B
21066
21066
21119
21119
21121
21121
21121A
21121A
21121B
21121B
21130
21130
21176
21176
21176A
21176A
26011
26011
26011A
26011A
26011B
26011B
27010
27010
59416
59416
59416A
59416A
59416B
59416B
59416C
59416C
92009
92009
92009
92009
92009A
92009A
92009A
92009A
92009A
92009A
92009B
92009B
92009B
92009B
92026
92026
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92066
92066
92066
92066
92070
92070
92071
92071
92071A
92071A
92093
92093
92093A
92093A
92145
92145
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92170
92191
92191
92191A
92191A
311
311
311
311
410
410
410A
410A
92191B
92191B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-3005 | 3 | ||
| GASKET,ELECTRIC CASE | 11060 | 11060-3805 | 1 | ||
| HOLDER | 13091 | 13091-3785 | 1 | ||
| PLATE | 13271 | 13271-3707 | 2 | ||
| HOLDER | 13280 | 13280-3706 | 1 | ||
| HOLDER | 13280A | 13280-3711 | 1 | ||
| HOLDER | 13280B | 13280-3712 | 1 | ||
| REGULATOR-VOLTAGE | 21066 | 21066-3715 | 1 | ||
| IGNITER | 21119 | 21119-3757 | 1 | ||
| COIL-IGNITION,#1 | 21121 | 21121-3714 | 1 | ||
| COIL-IGNITION,#2 | 21121A | 21121-3715 | 1 | ||
| COIL-IGNITION,#3 | 21121B | 21121-3716 | 1 | ||
| CAP-SPARK PLUG | 21130 | 21130-3706 | 3 | ||
| SENSOR,INTAKE AIR TEMP | 21176 | 21176-3730 | 1 | ||
| SENSOR,COOLING WATER TEMP | 21176A | 21176-3731 | 1 | ||
| WIRE-LEAD | 26011 | 26011-3857 | 1 | ||
| WIRE-LEAD | 26011A | 26011-3871 | 1 | ||
| WIRE-LEAD | 26011B | 26011-3880 | 1 | ||
| SWITCH | 27010 | 27010-3757 | 1 | ||
| CASE-ELECTRIC | 59416 | 59416-3747 | 1 | ||
| CASE-ELECTRIC | 59416A | 59416-3748 | 1 | ||
| CASE-ELECTRIC,UPP | 59416B | 59416-3749 | 1 | ||
| CASE-ELECTRIC,LWR | 59416C | 59416-3750 | 1 | ||
| SCREW,TAPPING,6X25 | 92009 | 92009-1640 | 8 | ||
| SCREW,6X14 | 92009A | 92009-3845 | 3 | ||
| SCREW,6X18 | 92009B | 92009-3846 | 4 | ||
| SPACER | 92026 | 92026-3703 | 2 | ||
| CLAMP | 92037 | 92037-1173 | 9 | ||
| CLAMP,HOSE | 92037A | 92037-1603 | 3 | ||
| PLUG | 92066 | 92066-1347 | 2 | ||
| PLUG-SPARK,BR9ES(NGK),SOLID | 92070 | 92070-1157 | 3 | ||
| GROMMET | 92071 | 92071-3004 | 2 | ||
| GROMMET | 92071A | 92071-527 | 3 | ||
| SEAL | 92093 | 92093-3754 | 1 | ||
| SEAL | 92093A | 92093-3756 | 1 | ||
| SPRING | 92145 | 92145-3710 | 1 | ||
| CLAMP | 92170 | 92170-3765 | 8 | ||
| TUBE,8X10X690 | 92191 | 92191-3847 | 1 | ||
| TUBE,8X10X570 | 92191A | 92191-3848 | 1 | ||
| NUT-HEX,6MM | 311 | 311R0600 | 4 | ||
| WASHER-PLAIN-SMALL,10MM | 410 | 410B1000 | 2 | ||
| WASHER-PLAIN-SMALL,6MM | 410A | 410S0600 | 2 | ||
| TUBE,8X10X500 | 92191B | 92191-3849 | 1 |
