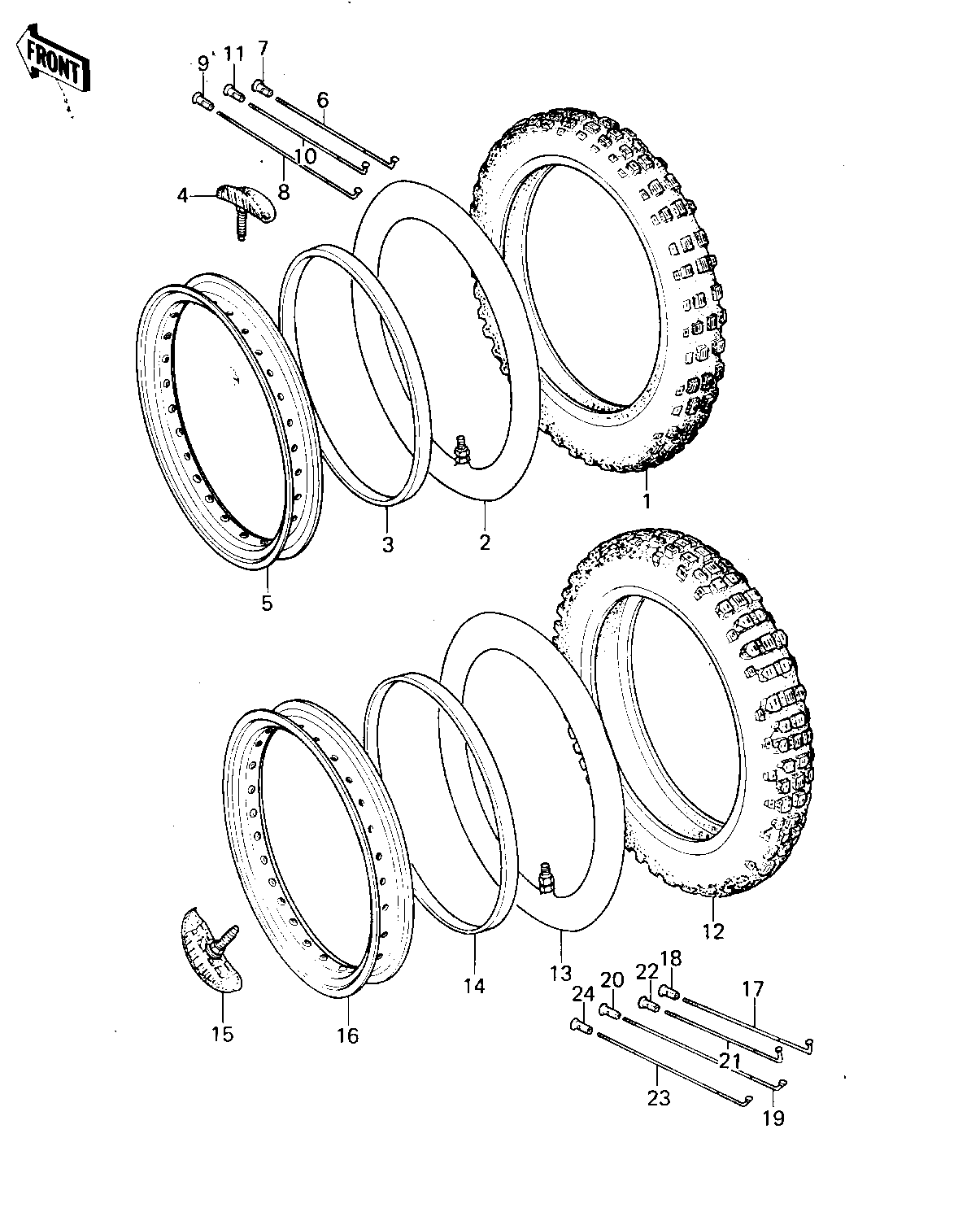

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE 300-21 M17 F | 1 | 41002-1087 | 1 | M17 | |
| UNAVAILABLE IN PRICE BOOK | 2 | 41022-1023 | 1 | ||
| BAND,RIM | 3 | 41023-1009 | 1 | ||
| PROTECTOR,BEAD 1.60A | 4 | 41024-010 | 1 | ||
| RIM,FRONT,1.60-21 | 5 | 41025-1017 | 1 | ||
| SPOKE,FRONT,INNER,L.H | 6 | 41029-1019 | 9 | 203 M/M X 101 | |
| NIPPLE,SPOKE | 7 | 41032-1001 | 9 | ||
| SPOKE,FRONT,INNER,R.H | 8 | 41029-1020 | 18 | 229 M/M X 130 | |
| NIPPLE,SPOKE | 9 | 41032-1001 | 18 | ||
| SPOKE,FRONT,OUTER,L.H | 10 | 41030-1016 | 9 | 201 M/M X 84.5 | |
| NIPPLE,SPOKE | 11 | 41032-1001 | 9 | ||
| TIRE 400-18 M20 R | 12 | 41002-1088 | 1 | M20 | |
| UNAVAILABLE IN PRICE BOOK | 13 | 41022-1024 | 1 | ||
| BAND,RIM | 14 | 41023-1010 | 1 | ||
| PROTECTOR,BEAD,1.85B | 15 | 41024-011 | 2 | ||
| RIM,REAR,1.85-18 | 16 | 41025-1018 | 1 | ||
| SPOKE,REAR,INNER,R.H. | 17 | 41029-1021 | 9 | 166 M/M X 105 | |
| NIPPLE,SPOKE | 18 | 41032-1001 | 9 | ||
| SPOKE,REAR,INNER,L.H. | 19 | 41029-1022 | 9 | 189 M/M X 123 | |
| NIPPLE,SPOKE | 20 | 41032-1001 | 9 | ||
| SPOKE,REAR,OUTER,R.H. | 21 | 41030-1017 | 9 | 163.5 M/M X 73 | |
| NIPPLE,SPOKE | 22 | 41032-1001 | 9 | ||
| SPOKE,REAR,OUTER,L.H. | 23 | 41030-1018 | 9 | 186.5 M/M X 127 | |
| NIPPLE,SPOKE | 24 | 41032-1001 | 9 |
| TIRE 300-21 M17 F | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | M17 |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,RIM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PROTECTOR,BEAD 1.60A | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,FRONT,1.60-21 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPOKE,FRONT,INNER,L.H | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 203 M/M X 101 |
| NIPPLE,SPOKE | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| SPOKE,FRONT,INNER,R.H | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | 229 M/M X 130 |
| NIPPLE,SPOKE | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE,FRONT,OUTER,L.H | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 201 M/M X 84.5 |
| NIPPLE,SPOKE | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| TIRE 400-18 M20 R | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | M20 |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,RIM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PROTECTOR,BEAD,1.85B | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIM,REAR,1.85-18 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPOKE,REAR,INNER,R.H. | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 166 M/M X 105 |
| NIPPLE,SPOKE | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| SPOKE,REAR,INNER,L.H. | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 189 M/M X 123 |
| NIPPLE,SPOKE | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| SPOKE,REAR,OUTER,R.H. | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 163.5 M/M X 73 |
| NIPPLE,SPOKE | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| SPOKE,REAR,OUTER,L.H. | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | 186.5 M/M X 127 |
| NIPPLE,SPOKE | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
