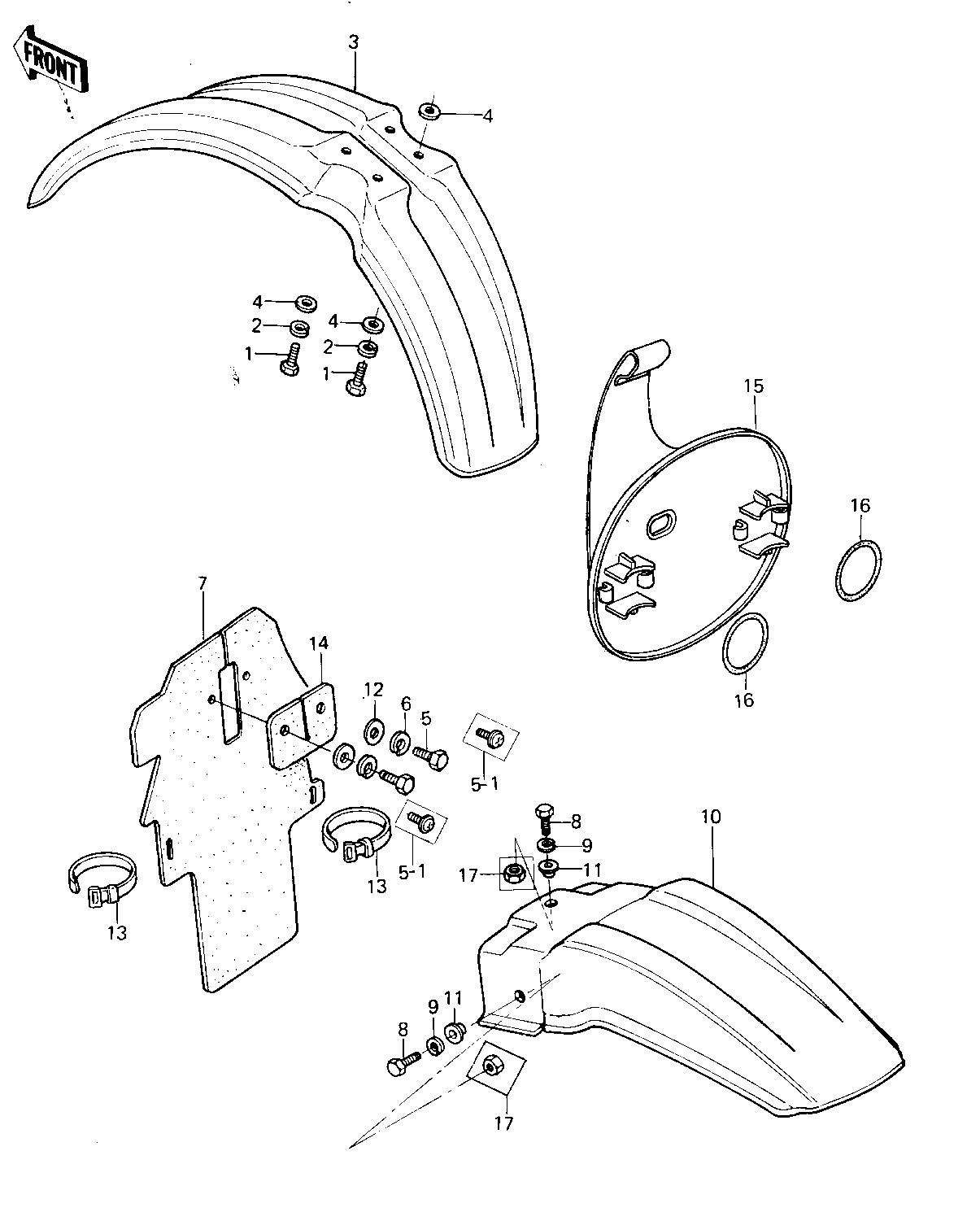

1980 KX125 - NUMBER PLATE/FENDERS ('80 A6)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-UPSET,6X16 | 1 | 112G0616 | 4 | ||
WASHER SPRING 6MM | 2 | 461F0600 | 4 | ||
FENDER-FRONT,L.GREEN | 3 | 35004-1233-6W | 1 | ||
WASHER 6.5X20X1.6T | 4 | 92022-125 | 6 | ||
BOLT-UPSET,6X12 | 5 | 112G0612 | 2 | ||
SCREW,6X14 | 5-1 | 92009-1287 | 2 | ||
WASHER SPRING 6MM | 6 | 461F0600 | 2 | NOT REQUIRED FOR 92091-029 | |
FLAP,REAR FENDER | 7 | 35019-1017 | 1 | ||
BOLT-UPSET,6X16 | 8 | 112G0616 | 3 | ||
BOLT-UPSET 6X14 | 8 | 112B0614 | 3 | NOT REQUIRED FOR 92019-008 | |
WASHER SPRING 6MM | 9 | 461F0600 | 3 | ||
FENDER-RR,L.GREEN | 10 | 35022-1043-6W | 1 | ||
COLLAR | 11 | 92027-1260 | 3 | ||
WASHER 6.5X20X1.6T | 12 | 92022-125 | 2 | ||
BAND,WIRING HARNESS | 13 | 92072-056 | 2 | ||
FLAP,REAR FENDER | 14 | 35019-1019 | 1 | ||
PLATE,NUMBER,L.GREEN | 15 | 58029-1003-7F | 1 | ||
"0" RING,70MM | 16 | 671B2570 | 2 | ||
NUT | 17 | 92019-008 | 3 |
