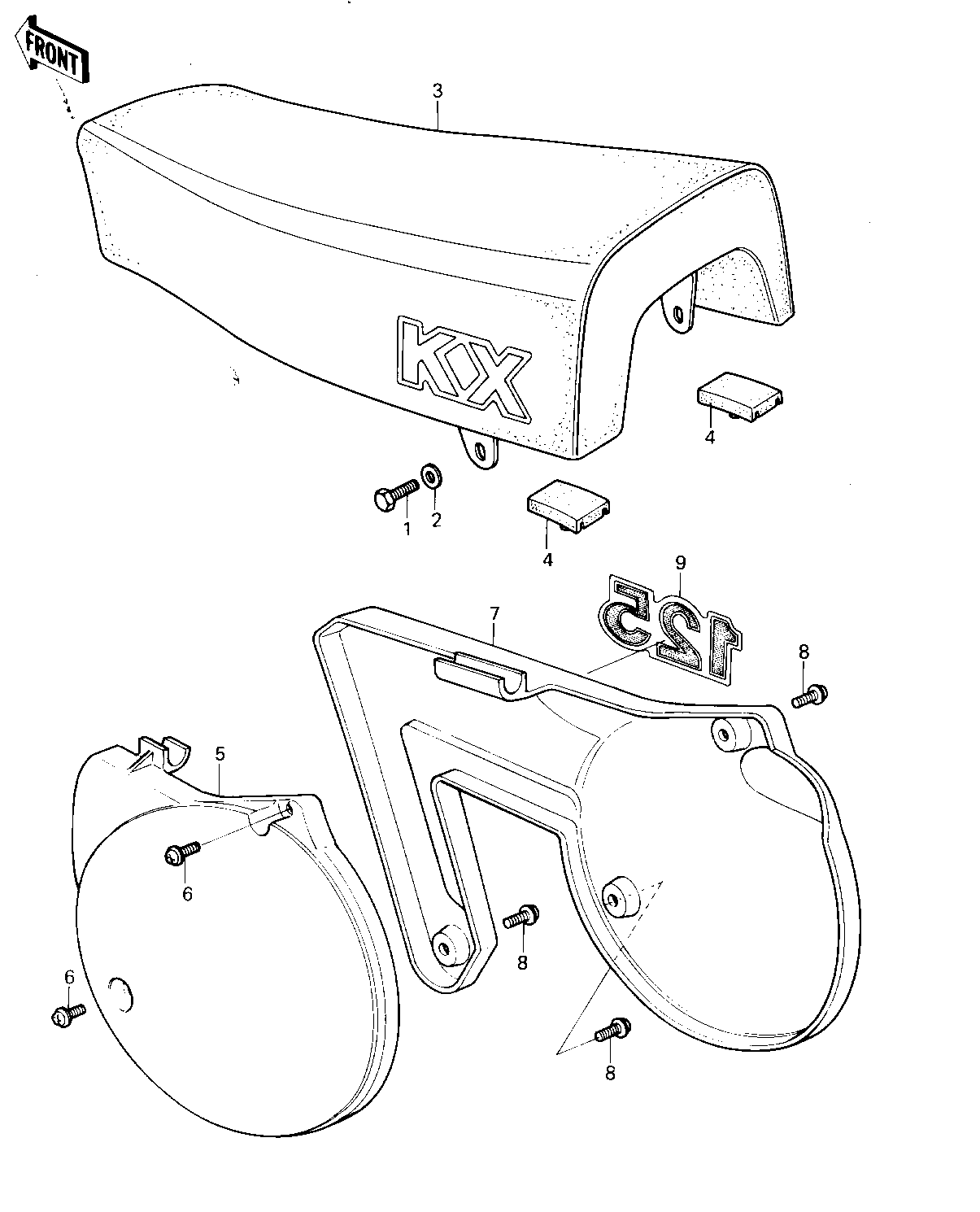

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SMALL-UPSET,8X16 1 115G0816 2
WASHER PLAIN 8MM 2 411B0800 2
SEAT-ASSY 3 53001-1106 1
DAMPER,SEAT 4 92075-1226 2
COVER-SIDE,LH,F.BLACK 5 36001-1081-21 1
SCREW,6X14 6 92009-1287 2
COVER-SIDE,RH,F.BLACK 7 36001-1082-21 1
SCREW,6X14 8 92009-1287 3
EMBLEM,SIDE COVER 9 56018-1143 2
