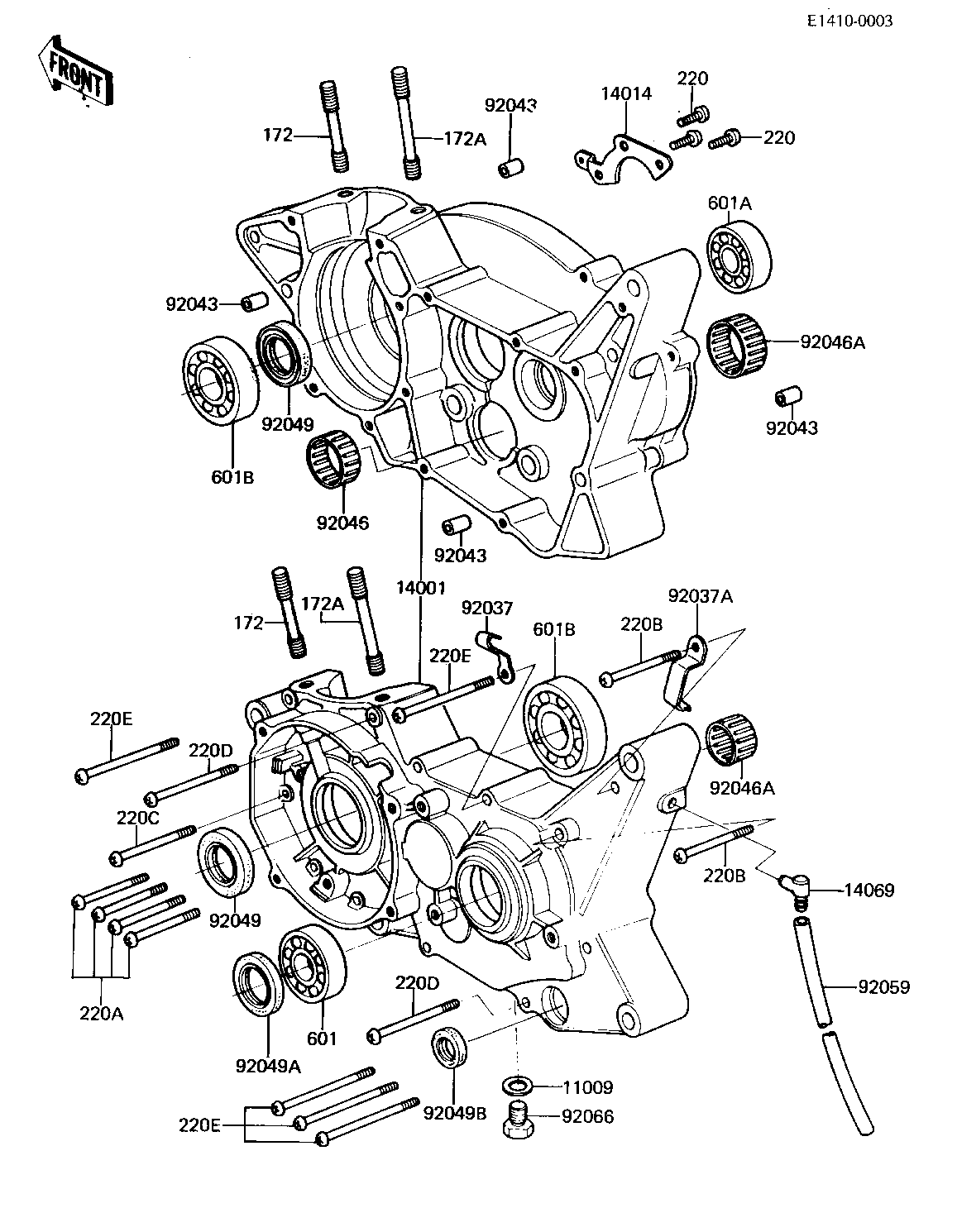

1981 KX125 - CRANKCASE ('81 A7)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET CHECK VALVE 11009 92065-058 1
SET-CRANKCASE 14001 14001-5074 1
PLATE,POSITIONING 14014 14014-1003 1
BREATHER 14069 14069-003 1
CLAMP CABLE 92037 92037-016 1
CLAMP 92037A 92037-1073 1
PIN,DOWEL,10X8.2X14 92043 92043-1037 4
BEARING,NEEDLE 92046 92046-043 1
BEARING-NEEDLE,HMK151 92046A 92046-1058 2
SEAL-OIL,TBJ25407 92049 92049-1068 2
OIL SEAL SC25376 92049A 92050-013 1
OIL SEAL,TB13225.5 92049B 92051-005 1
PIPE-BREATHER 92059 92059-061 1
PLUG OIL DRAIN 92066 92067-001 1
STUD,8X25 172 92004-1008 2
STUD 8X60 172A 172G0860 2
SCREW PAN HEAD 6X14 220 220B0614 3
SCREW PAN HEAD 6X45 220A 220B0645 4
SCREW PAN HEAD 6X50 220B 220B0650 2
SCREW PAN HEAD 6X55 220C 220B0655 1
SCREW PAN HEAD 6X60 220D 220B0660 1
SCREW PAN HEAD 6X70 220E 220B0670 5
BEARING BALL #6204 601 601B6204 1
BEARING BALL #6303 601A 601B6303 1
BEARING BALL #6305 601B 601B6305 2
