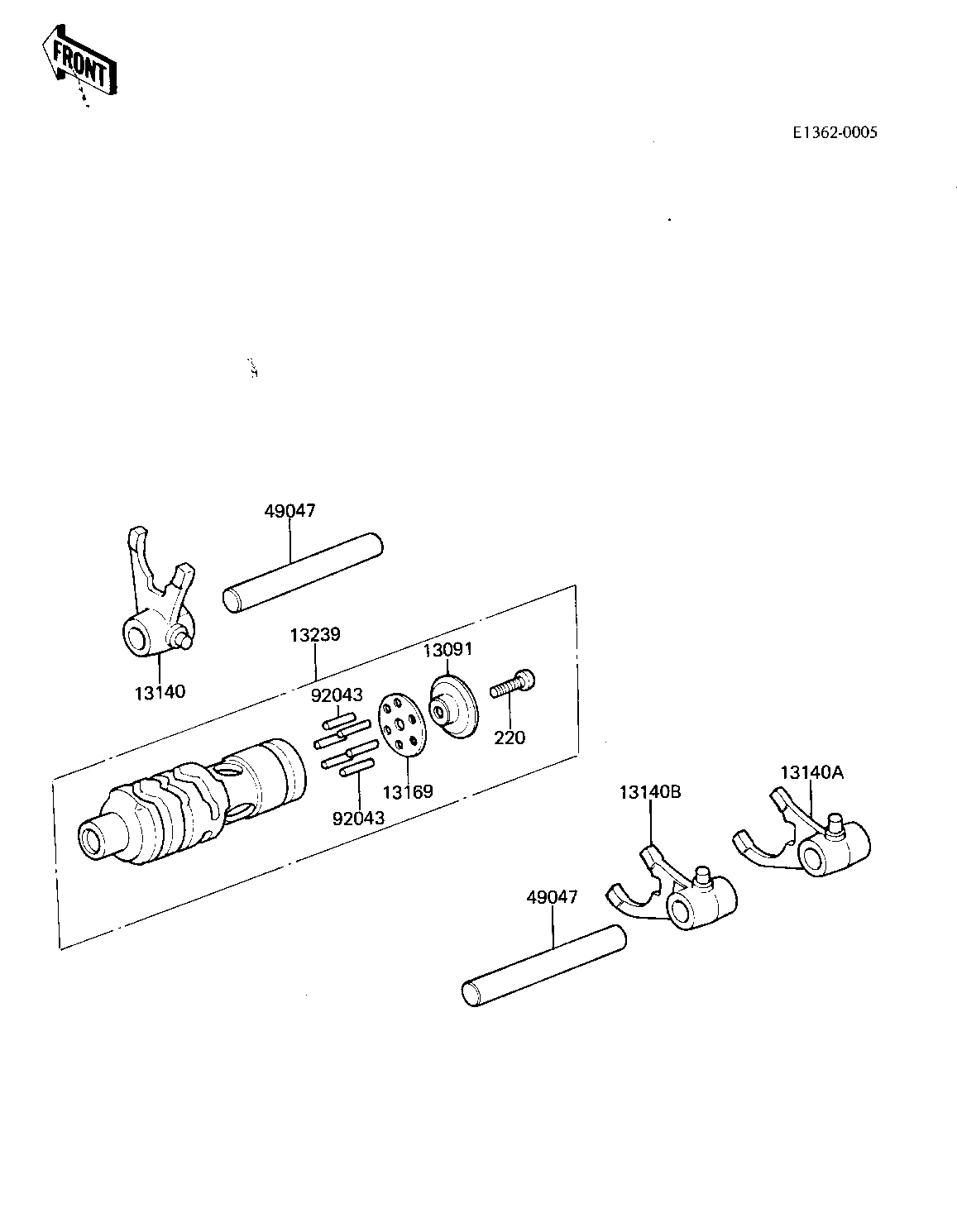

1981 KX125 - GEAR CHANGE DRUM & FORKS ('81 A7)

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLTE,SHIFT DRUM PIN 13091 13142-017 1
SHIFT FORK 13140 13140-1034 1
SHIFT FORK 13140A 13140-1035 1
SHIFT FORK 13140B 13140-1036 1
PLATE,GEAR CHANGE DRM 13169 13169-1225 1
DRUM ASSY,GEAR CHANGE 13239 13239-1030 1
ROD,SHIFT,10X90 49047 49047-1009 2
PIN,CHANGE DRUM 92043 92043-1060 6
SCREW PAN HEAD 6X14 220 220B0614 1
