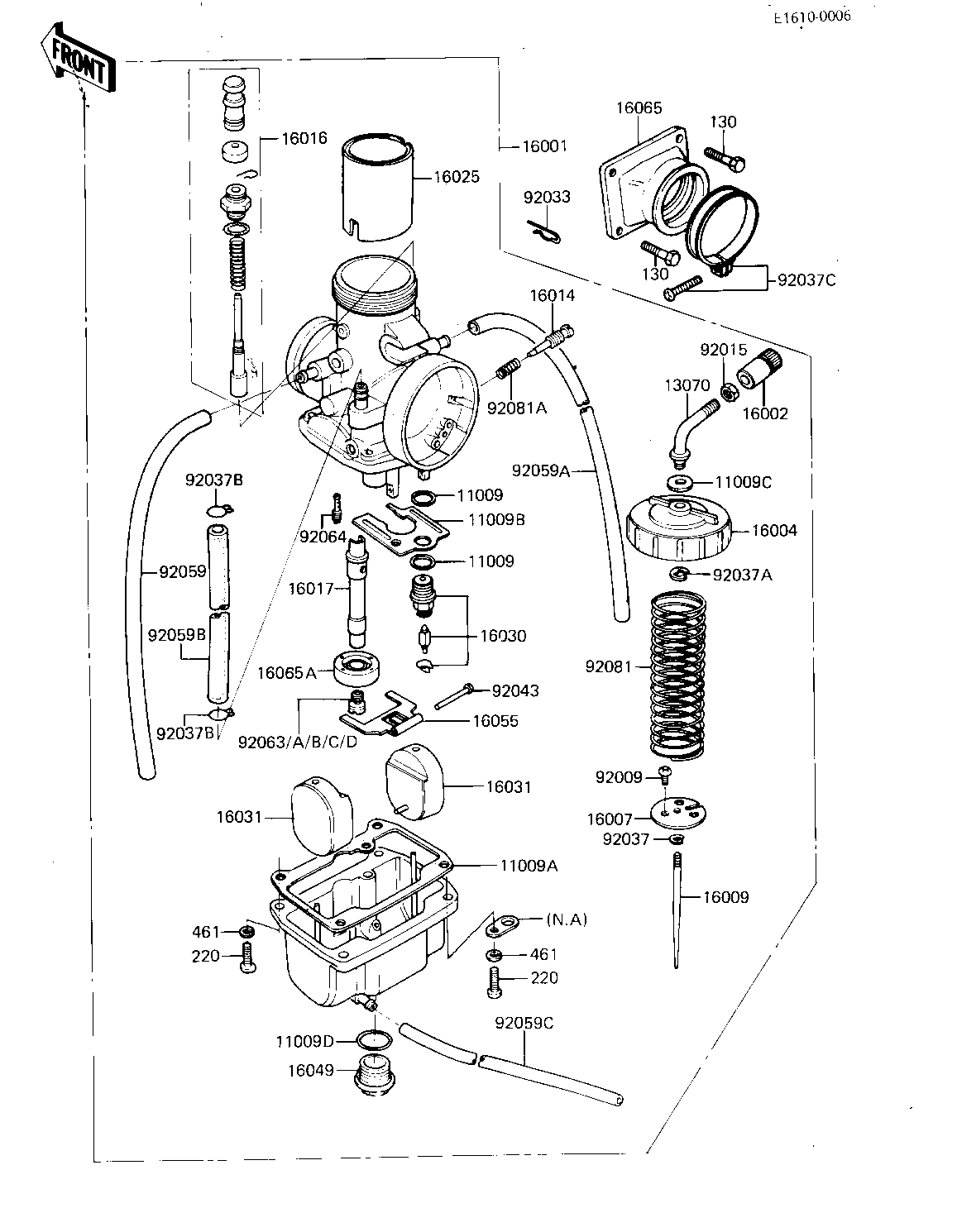

1981 KX125 - CARBURETOR ('81 A7)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT VALVE 11009 11009-1076 2
GASKET,FLOAT CHAMBER 11009A 11009-1079 1
PLATE,FLOAT CHAMBER 11009B 11009-1080 1
GASKET,CABLE GUIDE 11009C 11009-1191 1
GASKET-COVER 11009D 16038-009 1
GUIDE,CABLE 13070 13070-1010 1
CARBURETOR 16001 16001-1367 1
ADJUSTER,CABLE 16002 16002-1006 1
TOP,MIXING CHAMBER 16004 16004-1003 1
SEAT,THROTTLE VALVE 16007 16007-1007 1
JET NEEDLE,6F21 16009 16009-1067 1
SCREW 16014 16014-006 1
PLUNGER ASSY,STARTER 16016 16016-1013 1
JET-NEEDLE,R-2 16017 16017-1081 1
VALVE-THROTTLE,CA3.5 16025 16025-1055 1
VALVE-FLOAT 16030 16030-1015 1
FLOAT ASSY 16031 16031-025 2
COVER,MAIN JET 16049 16049-006 1
ARM,FLOAT 16055 16055-004 1
HOLDER,CARBURETOR 16065 16065-1007 1
HOLDER-CARBURETOR 16065A 16065-1040 1
SCREW,4X5 92009 92009-1037 1
NUT CABLE ADJUST LOCK 92015 16003-004 1
CIRCLIP 92033 92036-018 1
CIRCLIP 92037 16008-010 1
CIRCLIP,CABLE GUIDE 92037A 16008-011 1
CLAMP,CARB CONECT HOS 92037B 92037-056 1
CLAMP-INLET PIPE 92037C 92037-061 1
PIN,FLOAT 92043 16032-008 1
TUBE,3.5X6.5X290,BRTH 92059 92059-1017 1
HOSE,OVERFLOW 92059A 92059-1025 1
HOSE,6.5X11.5X240 92059B 92059-1084 1
TUBE,3.5X6.5X120 92059C 92059-1178 1
MAIN JET,#160R 92063 92063-1018 1 (OFF ROAD USE ONLY)
MAIN JET,#162.5R 92063A 92063-1019 1 (OFF ROAD USE ONLY)
MAIN JET,#165R 92063B 92063-1020 1
MAIN JET,#167.5R 92063C 92063-1021 1 (OFF ROAD USE ONLY)
MAIN JET,#170R 92063D 92063-1022 1 (OFF ROAD USE ONLY)
JET-PILOT NO 30 92064 92064-022 1
SPRING-THROTTLE VALVE 92081 16006-016 1
SPRING-THR STOP SCREW 92081A 16022-007 1
BOLT,FLANGED,6X20 130 130G0620 4
UNAVAILABLE IN PRICE BOOK 220 214B0516A 4
WASHER SPRING 5MM 461 461F0500 4
