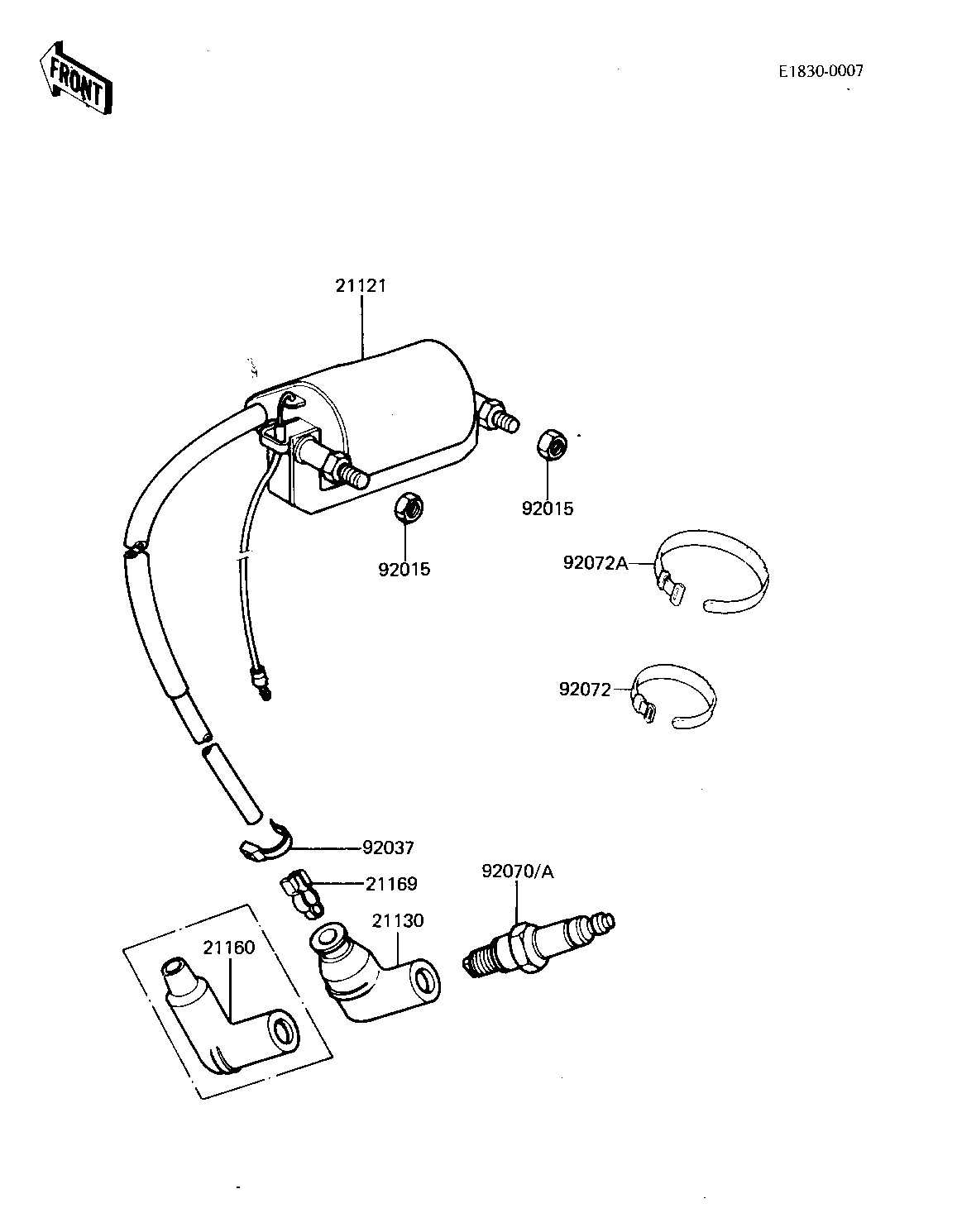

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COIL,IGNITION 21121 21121-1032 1
CAP,SPARK PLUG 21130 21130-1006 1
CAP ASSY,SPARK PLUG 21160 21160-1009 1
TERMINAL,PLUG CAP 21169 21169-001 1
NUT 92015 92019-008 2
CLAMP,SPARK PLUG CAP 92037 92037-1173 1
SPARK PLUG B9EV 92070 B9EV 1
SPARK PLUG BR9EV 92070A 92070-3002 1
BAND,SHORT 92072 92072-030 1
BAND,WIRING HARNESS 92072A 92072-056 1
