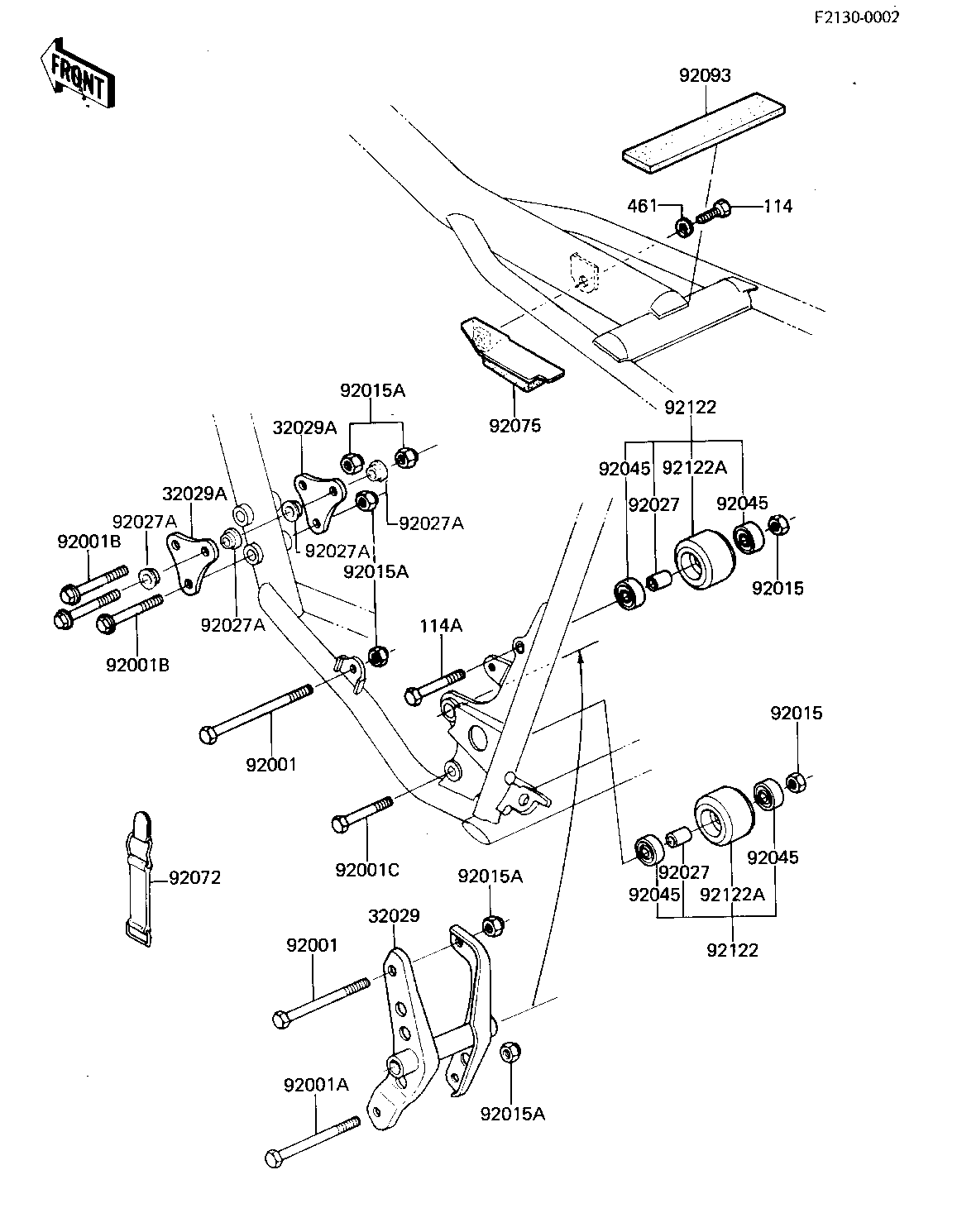

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ENGINE REAR 32029 32029-1123 1
BRACKET-ENGINE 32029A 32029-1140 2
BOLT,FLANGED,8X90 92001 92002-1416 2
BOLT,8X105 92001A 92001-1394 1
BOLT,8X69 92001B 92001-1410 3
BOLT,8X70 92001C 92001-1440 1
NUT,LOCK,8MM 92015 92015-1124 2
NUT,8MM 92015A 92015-1134 8
COLLAR 92027 92027-1081 2
COLLAR 92027A 92027-1096 4
BEARING,BALL 92045 92045-1009 4
BAND,FUEL TANK 92072 92072-076 1
DAMPER,REAR SHOCK 92075 92075-1249 1
SEAL 92093 92093-1039 1
ROLLER,ASSY 92122 92122-1013 2
ROLLER 92122A 92122-1014 2
BOLT SMALL 114 114G0812 1
BOLT-SMALL-UPSET,8X55 114A 115G0855 1
WASHER PLAIN 6MM 411 411B0600 2
WASHER SPRING 8MM 461 461F0800 1
