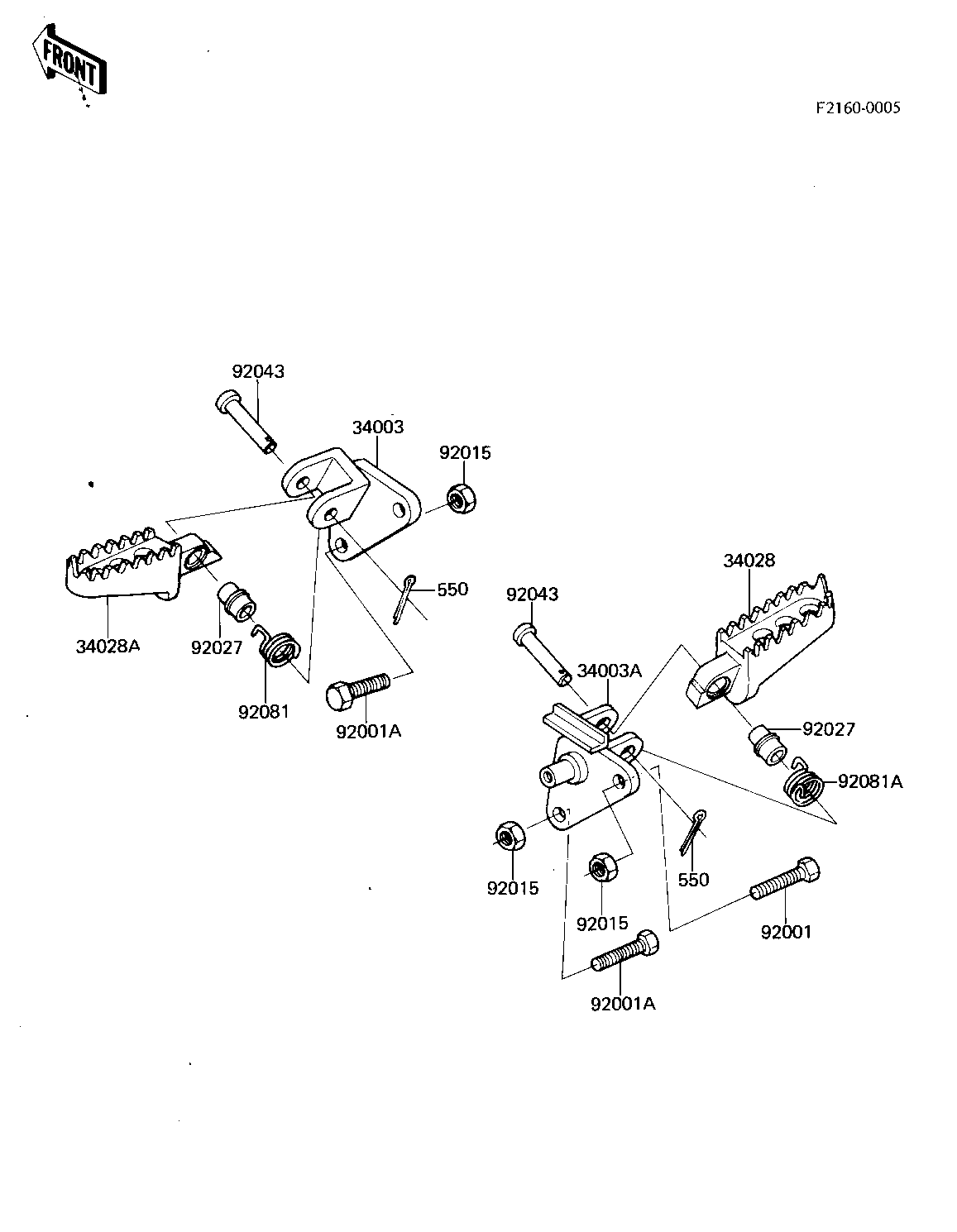

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,FOOTRST STEP,L 34003 34003-1054 1
HOLDER-STEP,RH 34003A 34003-1088 1
STEP 34028 34028-1033 1
STEP 34028A 34028-1034 1
BOLT,8X32 92001 92001-1438 1
BOLT,8X50 92001A 92001-1439 2
NUT,8MM 92015 92015-1134 3
COLLAR,STEP 92027 92027-1314 2
PIN,FOOTRST STEP FITT 92043 92043-1069 1
SPRING,L.H,FOOTREST 92081 92081-1254 1
SPRING,R.H,FOOTREST 92081A 92081-1255 1
PIN,COTTER,2.5X18 550 550D2518 1
