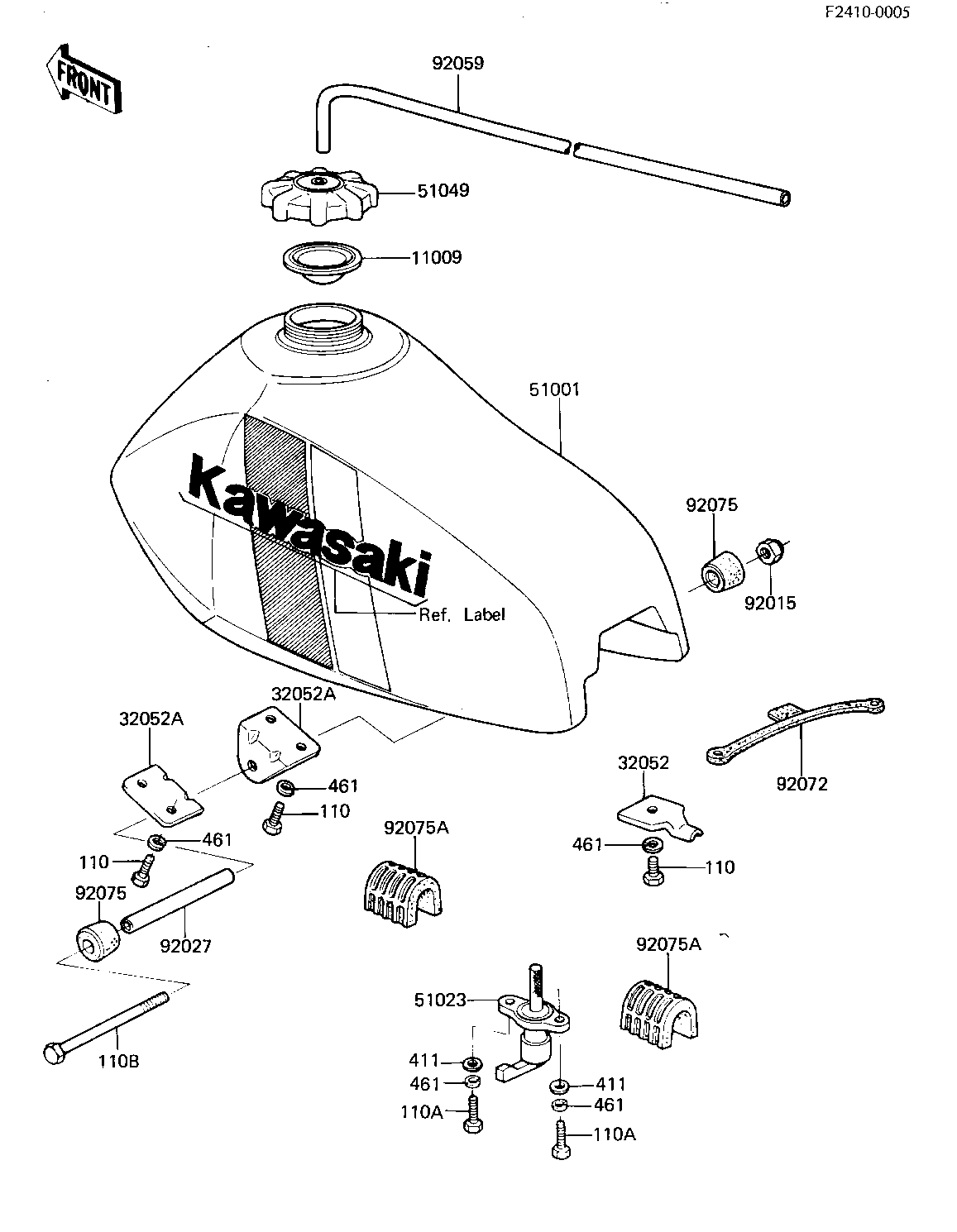

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FUEL TANK 11009 11009-1452 1
BRACKET,FUEL TANK 32052 32052-1009 1
BRACKET,FUEL TANK FIT 32052A 32052-1036 2
TANK-FUEL,L.GREEN 51001 51001-5108-6W 1
TAP-ASSY-FUEL 51023 51023-1115 1
CAP-TANK,FUEL 51049 51049-1006 1
NUT 92015 92019-008 1
COLLAR,FUEL TANK FITT 92027 92027-1228 1
TUBE,5X5.6X280 92059 92059-1109 1
BAND,FUEL TANK 92072 92072-042 1
DAMPER,FUEL TANK FITT 92075 92075-1220 2
DAMPER,FUEL TANK 92075A 92075-1277 2
BOLT-UPSET,6X12 110 112G0612 5
BOLT-UPSET 110A 112G0618 2
BOLT-UPSET,6X105 110B 112G06105 1
WASHER PLAIN 6MM 411 411B0600 2
WASHER SPRING 6MM 461 461F0600 7
