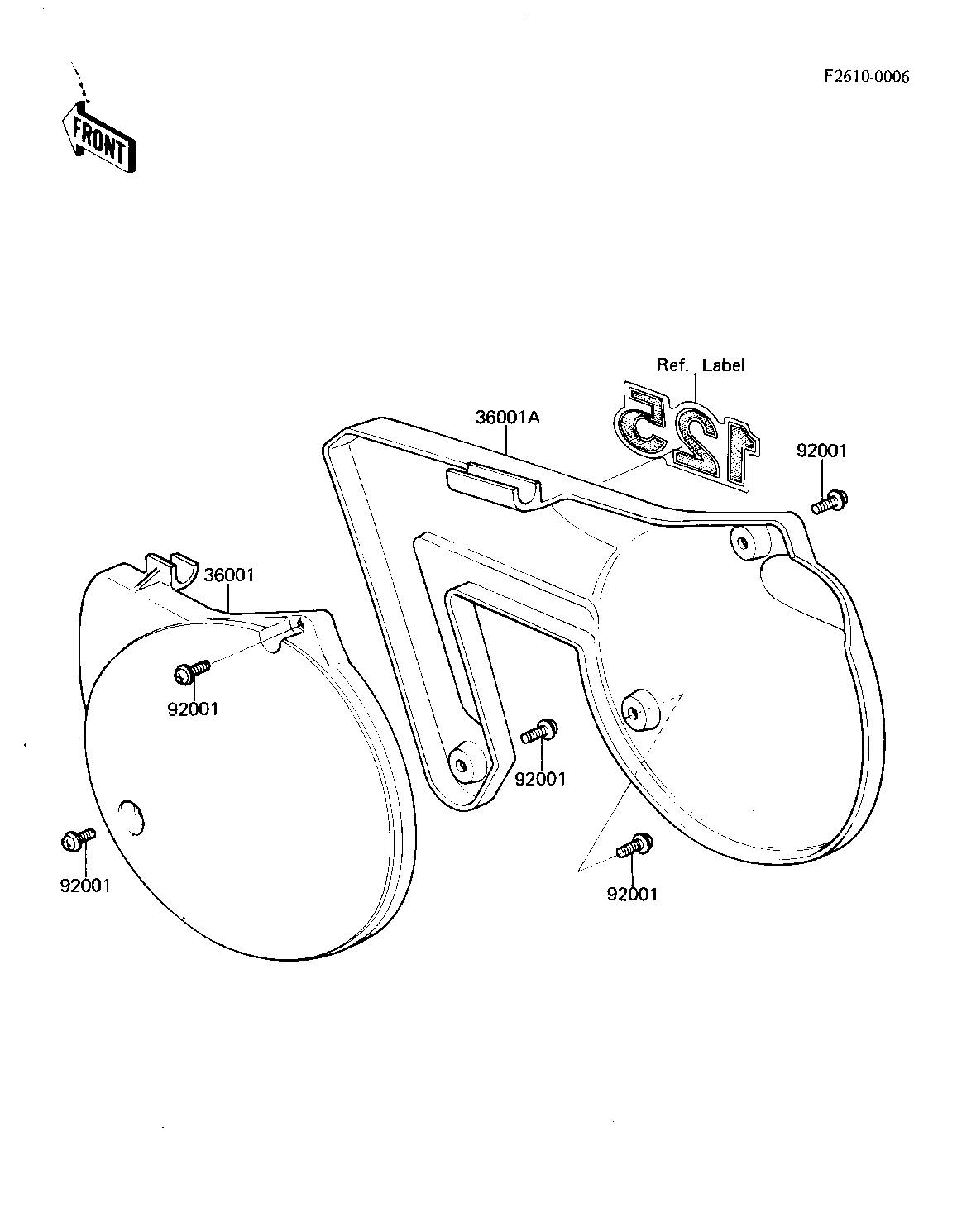

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,F.BLACK 36001 36001-1081-21 1
COVER-SIDE,RH,F.BLACK 36001A 36001-1082-21 5
SCREW,6X14 92001 92009-1287 5
