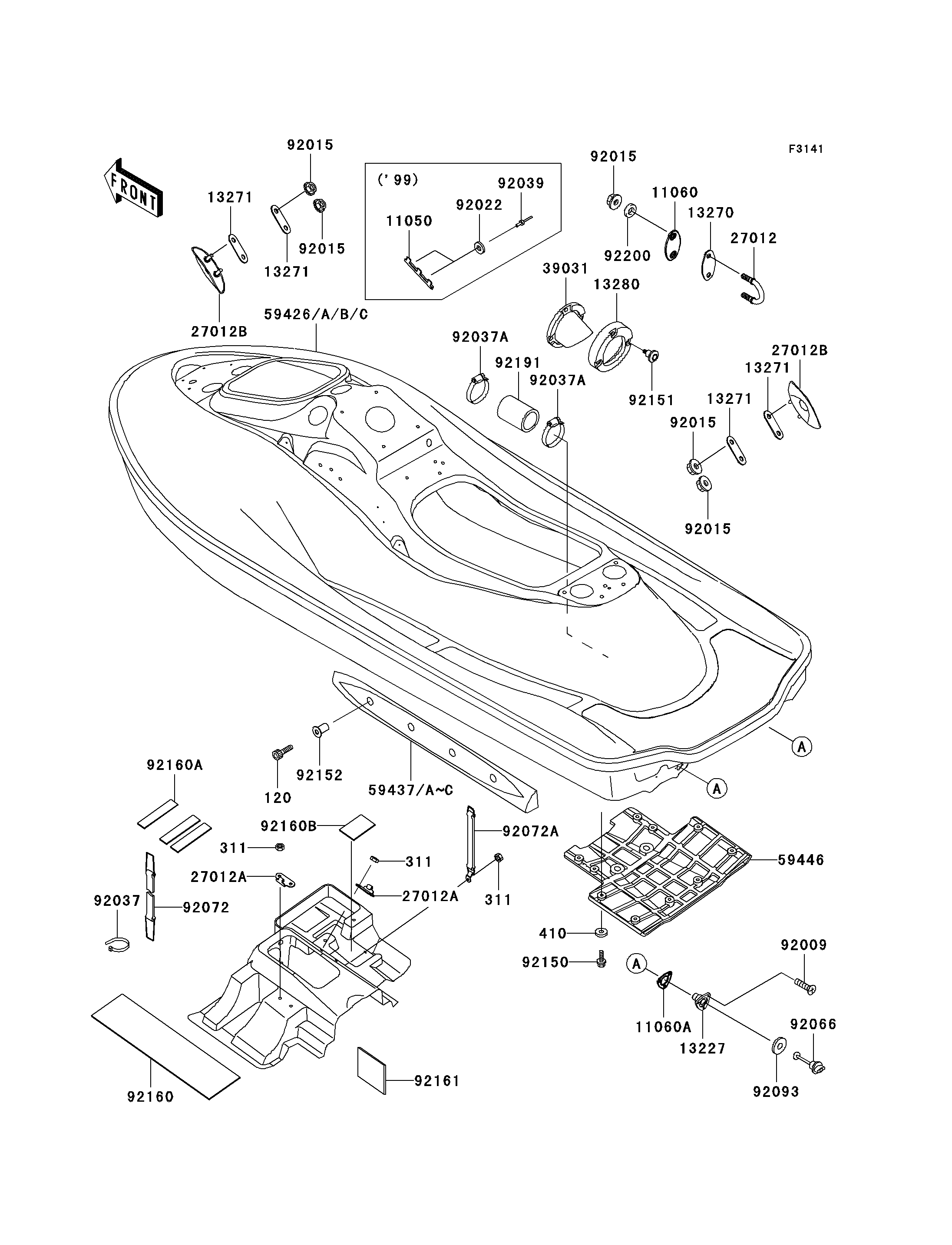

Parts Diagrams |
11060
11060
11060A
11060A
13227
13227
13270
13270
13271
13271
13271
13271
13271
13271
13271
13271
13280
13280
27012
27012
27012A
27012A
27012A
27012A
27012B
27012B
27012B
27012B
39031
39031
59437A
59437A
59437C
59437C
59446
59446
92009
92009
92015
92015
92015
92015
92015
92015
92015
92015
92015
92015
92037
92037
92037A
92037A
92037A
92037A
92066
92066
92072
92072
92072A
92072A
92093
92093
92150
92150
92151
92151
92152
92152
92160
92160
92160A
92160A
92160B
92160B
120
120
311
311
311
311
311
311
410
410
92161
92161
92191
92191
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,U HOOK,RR | 11060 | 11060-3800 | 2 | ||
| GASKET,DRAIN PLUG | 11060A | 11060-3801 | 2 | ||
| HOUSING,DRAIN PLUG | 13227 | 13227-3711 | 2 | ||
| PLATE | 13270 | 13270-3860 | 2 | ||
| PLATE | 13271 | 13271-3724 | 4 | ||
| HOLDER,EXHAUST VALVE | 13280 | 13280-3718 | 1 | ||
| HOOK | 27012 | 27012-3797 | 2 | ||
| HOOK | 27012A | 27012-3816 | 2 | ||
| HOOK,BOW,F.BLACK | 27012B | 27012-3822-6Z | 2 | ||
| CAP-END | 39031 | 39031-3704 | 1 | ||
| STABILIZER,LH,F.BLACK | 59437A | 59437-3721-6Z | 1 | ||
| STABILIZER,RH,F.BLACK | 59437C | 59437-3722-6Z | 1 | ||
| COVER-JET PUMP | 59446 | 59446-3749 | 1 | ||
| SCREW,TAPPING,4X16 | 92009 | 92009-3849 | 6 | ||
| NUT,FLANGED,8MM | 92015 | 92015-3709 | 8 | ||
| CLAMP | 92037 | 92037-1173 | 1 | ||
| CLAMP | 92037A | 92037-509 | 2 | ||
| PLUG,RR,DRAIN | 92066 | 92066-3744 | 2 | ||
| BAND,340X22 | 92072 | 92072-3805 | 1 | ||
| BAND,248X18 | 92072A | 92072-3829 | 1 | ||
| SEAL | 92093 | 92093-3720 | 2 | ||
| BOLT,SOCKET,6X18 | 92150 | 92150-3775 | 10 | ||
| BOLT,SOCKET,M6,SHOULDER | 92151 | 92151-3746 | 3 | ||
| COLLAR | 92152 | 92152-3715 | 8 | ||
| DAMPER | 92160 | 92160-3839 | 1 | ||
| DAMPER | 92160A | 92160-3840 | 3 | ||
| DAMPER | 92160B | 92160-3913 | 1 | ||
| BOLT-SOCKET | 120 | 120R0630 | 8 | ||
| NUT-HEX,6MM | 311 | 311R0600 | 5 | ||
| WASHER-PLAIN-SMALL,6MM | 410 | 410S0600 | 10 | ||
| DAMPER | 92161 | 92161-3704 | 1 | ||
| TUBE,39X51X70 | 92191 | 92191-3856 | 1 | ||
| WASHER | 92200 | 92200-3779 | 4 | ||
| HULL-COMP,S.RED | 59426A | 59426-3902-H1 | 1 | US |
| GASKET,U HOOK,RR | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,DRAIN PLUG | |
| REF # | 11060A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HOUSING,DRAIN PLUG | |
| REF # | 13227 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13270 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13271 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| HOLDER,EXHAUST VALVE | |
| REF # | 13280 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK | |
| REF # | 27012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HOOK | |
| REF # | 27012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HOOK,BOW,F.BLACK | |
| REF # | 27012B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP-END | |
| REF # | 39031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STABILIZER,LH,F.BLACK | |
| REF # | 59437A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STABILIZER,RH,F.BLACK | |
| REF # | 59437C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-JET PUMP | |
| REF # | 59446 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG,RR,DRAIN | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,340X22 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,248X18 | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X18 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,M6,SHOULDER | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX,6MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN-SMALL,6MM | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,39X51X70 | |
| REF # | 92191 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| HULL-COMP,S.RED | |
| REF # | 59426A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
