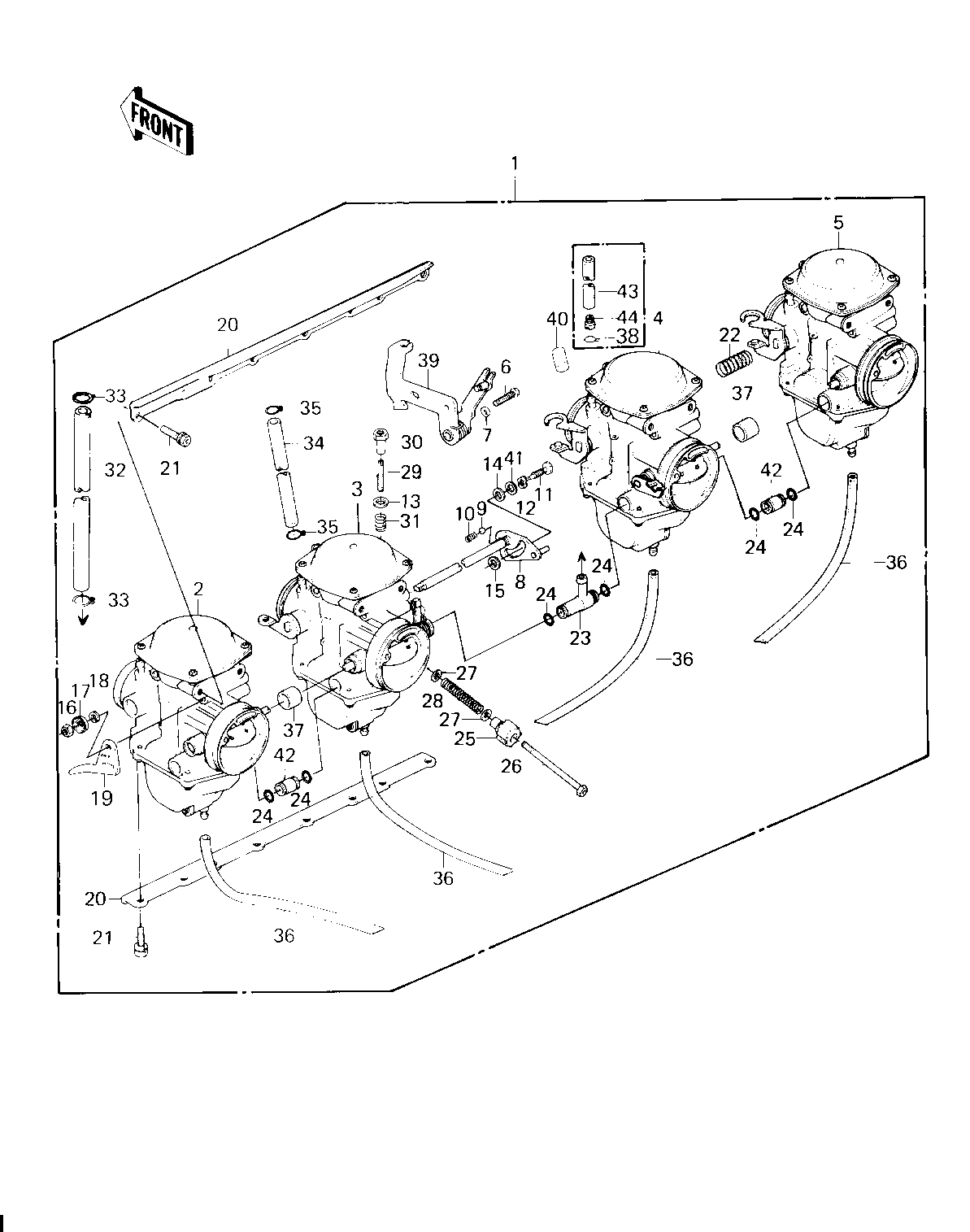

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CARBURETOR | 1 | 16001-1200 | 1 | ||
CARBURETOR,L.H,OUTER | 2 | 16001-1309 | 1 | ||
CARBURETOR,L.H,INSIDE | 3 | 16001-1310 | 1 | ||
CARBURETOR,R.H.INSIDE | 4 | 16001-1311 | 1 | ||
CARBURETOR,R.H.OUTSID | 5 | 16001-1312 | 1 | ||
SCREW PAN HEAD 5X20 | 6 | 220B0520 | 1 | ||
WASHER SPRING 5MM | 7 | 461F0500 | 1 | ||
SHAFT,CHOKE LINK | 8 | 16041-1017 | 1 | ||
BALL,STEEL,3/16" | 9 | 92140-1004 | 1 | ||
SPRING | 10 | 92081-1249 | 1 | ||
SCREW,LINK SHAFT | 11 | 92009-1096 | 1 | ||
SPRING,WAVED WASHER | 12 | 92081-1262 | 1 | ||
WASHER | 13 | 92022-1204 | 1 | ||
WASHER,6.1X11X0.8,POL | 14 | 92022-1199 | 1 | ||
WASHER,6.4X9.4X0.8,PL | 15 | 92022-1200 | 1 | ||
NUT,5MM | 16 | 311B0500 | 1 | ||
WASHER,LOCK,5M/M | 17 | 92022-1201 | 1 | ||
WASHER SPRING 5MM | 18 | 461F0500 | 1 | ||
LEVER,CHOKE | 19 | 13168-1065 | 1 | ||
PLATE,CARBURETOR STAY | 20 | 11034-1800 | 2 | ||
SCREW,6X16 | 21 | 92009-1129 | 16 | ||
SPRING | 22 | 92081-1250 | 2 | ||
FITTING,FUEL TUBE | 23 | 92005-1026 | 1 | ||
"O" RING | 24 | 92055-1004 | 6 | ||
HOLDER,ADJUST | 25 | 13091-1078 | 1 | ||
BOLT,HEX HEAD,5X70 | 26 | 92001-1328 | 1 | ||
WASHER | 27 | 92022-1203 | 2 | ||
SPRING | 28 | 92081-1251 | 1 | ||
SCREW,SLOTTED | 29 | 16021-1027 | 3 | ||
NUT,5M/M | 30 | 92015-1118 | 3 | ||
SPRING | 31 | 92081-1252 | 1 | ||
TUBE,FUEL INLET | 32 | 92059-1029 | 1 | ||
CLAMP,FUEL INLET TUBE | 33 | 92037-1075 | 2 | ||
HOSE,FUEL INLET | 34 | 92059-1001 | 1 | ||
CLAMP,TUBE | 35 | 92037-1682 | 2 | ||
TUBE,3.5X6.5X180 | 36 | 92059-1140 | 4 | ||
TUBE,DUST SEAL | 37 | 11012-1130 | 2 | ||
BRACKET,THROTTLE CABL | 39 | 11034-1799 | 1 | ||
CAP,RUBBER | 40 | 11012-1129 | 1 | ||
WASHER,6.5X11X1.2,STL | 41 | 92022-1207 | 1 | ||
NIPPLE,FUEL | 42 | 92005-1027 | 2 |
CARBURETOR | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CARBURETOR,L.H,OUTER | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CARBURETOR,L.H,INSIDE | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CARBURETOR,R.H.INSIDE | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CARBURETOR,R.H.OUTSID | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 5X20 | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER SPRING 5MM | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT,CHOKE LINK | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BALL,STEEL,3/16" | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,LINK SHAFT | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,WAVED WASHER | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,6.1X11X0.8,POL | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,6.4X9.4X0.8,PL | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,5MM | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,LOCK,5M/M | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER SPRING 5MM | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER,CHOKE | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,CARBURETOR STAY | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW,6X16 | |
REF # | 21 |
---|---|
PART NUMBER | |
QUANTITY | 16 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 22 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
FITTING,FUEL TUBE | |
REF # | 23 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"O" RING | |
REF # | 24 |
---|---|
PART NUMBER | |
QUANTITY | 6 |
DESTINATION | |
REMARKS |
HOLDER,ADJUST | |
REF # | 25 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,HEX HEAD,5X70 | |
REF # | 26 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 27 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 28 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,SLOTTED | |
REF # | 29 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
NUT,5M/M | |
REF # | 30 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 31 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE,FUEL INLET | |
REF # | 32 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,FUEL INLET TUBE | |
REF # | 33 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
HOSE,FUEL INLET | |
REF # | 34 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,TUBE | |
REF # | 35 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE,3.5X6.5X180 | |
REF # | 36 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
TUBE,DUST SEAL | |
REF # | 37 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET,THROTTLE CABL | |
REF # | 39 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP,RUBBER | |
REF # | 40 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,6.5X11X1.2,STL | |
REF # | 41 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NIPPLE,FUEL | |
REF # | 42 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
