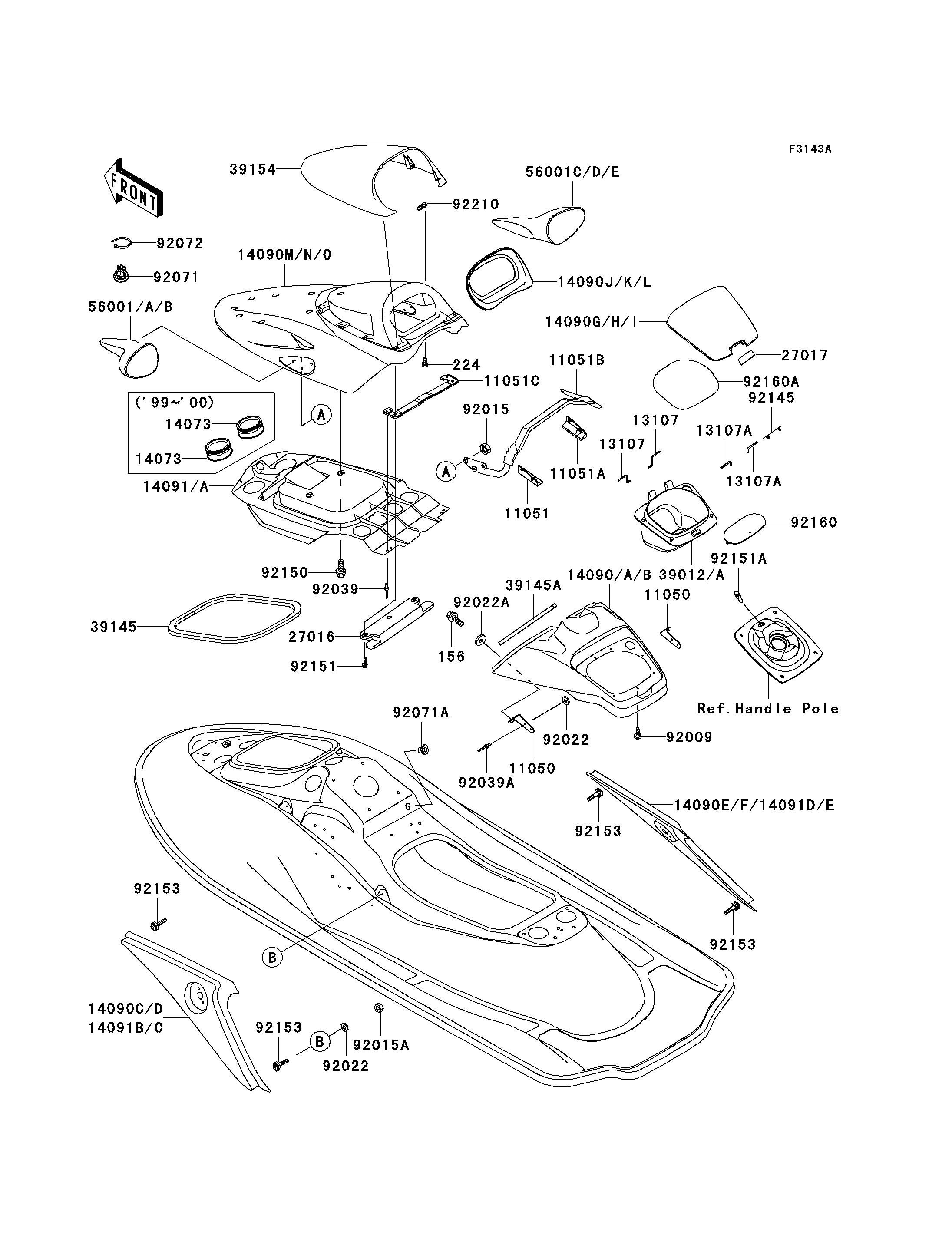

2000 Ultra 150 - Hull Cover

DOWNLOAD PDF
SELECT A NEW PART
11050
11050
11050
11050
11051
11051
11051A
11051A
11051B
11051B
11051C
11051C
13107
13107
13107
13107
13107A
13107A
13107A
13107A
14073
14073
14073
14073
14090A
14090A
14090D
14090D
14090F
14090F
14090H
14090H
14090K
14090K
14090N
14090N
14091
14091
27016
27016
27017
27017
39012A
39012A
39145
39145
39145A
39145A
156
156
224
224
39154
39154
56001A
56001A
56001D
56001D
92009
92009
92015
92015
92015A
92015A
92022
92022
92022
92022
92022A
92022A
92039
92039
92039A
92039A
92071
92071
92071A
92071A
92072
92072
92145
92145
92150
92150
92151
92151
92151A
92151A
92153
92153
92153
92153
92153
92153
92153
92153
92160
92160
92160A
92160A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11050 11050-3746 2
BRACKET,LH 11051 11051-3745 1
BRACKET,RH 11051A 11051-3746 1
BRACKET 11051B 11051-3753 1
BRACKET 11051C 11051-3759 1
SHAFT 13107 13107-3761 2
SHAFT 13107A 13107-3769 2
DUCT 14073 14073-3779 2
COVER,HANDLE,S.RED 14090A 14090-3809-H1 1
COVER,SIDE,LH,F.BLACK 14090D 14090-3810-21 1
COVER,SIDE,RH,F.BLACK 14090F 14090-3811-21 1
COVER,CENTER STORAGE,S.RED 14090H 14090-3812-H1 1
COVER,METER,S.RED 14090K 14090-3820-H1 1
COVER,HATCH,S.RED 14090N 14090-3823-H1 1
COVER,DUCT 14091 14091-3706 1
LOCK-ASSY,LID 27016 27016-3753 1
LOCK,CENTER STORAGE,F.BLACK 27017 27017-3720-6Z 1
CASE-STORAGE 39012A 39012-3728 1
TRIM-SEAL 39145 39145-3756 1
TRIM-SEAL,L=340 39145A 39145-3764 2
BOLT-WP,6X18 156 156R0618 2
SCREW-PAN-WP-CROS,5X14 224 224R0514 8
WINDSHIELD 39154 39154-3707 1
MIRROR-ASSY,LH,S.RED 56001A 56001-3713-H1 1
MIRROR-ASSY,RH,S.RED 56001D 56001-3714-H1 1
SCREW,TAPPING,5X20 92009 92009-3716 7
NUT,LOCK,6MM 92015 92015-3766 6
NUT,LOCK,5MM 92015A 92015-3798 4
WASHER,5X16X1.5 92022 92022-3041 8
WASHER,6.5X20X1.5 92022A 92022-3710 2
RIVET 92039 92039-3747 4
RIVET 92039A 92039-3775 4
GROMMET 92071 92071-3819 1
GROMMET 92071A 92071-3826 1
BAND,L=292.1 92072 92072-3509 1
SPRING 92145 92145-3711 1
BOLT,6X18 92150 92150-3729 4
BOLT,6X22 92151 92151-3769 2
BOLT 92151A 92151-3776 1
BOLT,5MM 92153 92153-3703 4
DAMPER 92160 92160-3926 1
DAMPER 92160A 92160-3933 1
NUT 92210 92210-3750 8
