Parts Diagrams |

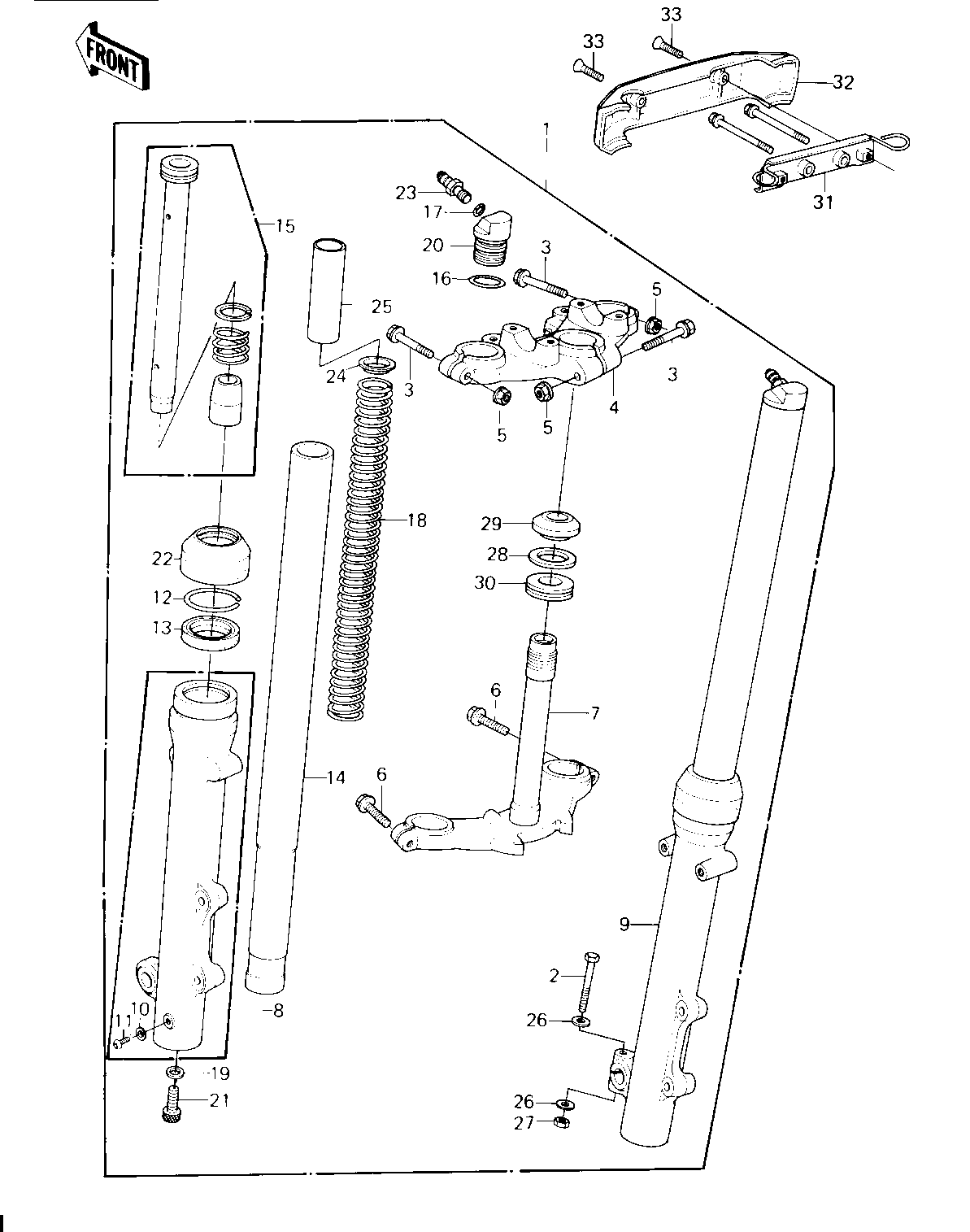

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FORK-FRONT | 1 | 44001-1385 | 1 | ||
BOLT,HEX HEAD,8X55 | 2 | 114G0855 | 1 | ||
BOLT,FLANGED,8X55 | 3 | 130G0855 | 3 | ||
HEAD,STEERING STEM | 4 | 44039-1032 | 1 | ||
NUT-8MM | 5 | 92015-1022 | 3 | ||
BOLT,FLANGED,10X40 | 6 | 131G1040 | 2 | ||
STEM,STEERING | 7 | 44037-1050 | 1 | ||
TUBE,FORK OUTER,L.H. | 8 | 39093-1027 | 1 | ||
TUBE,FORK OUTER,R.H. | 9 | 39093-1028 | 1 | ||
GASKET FORK DRAIN PLG | 10 | 44045-002 | 2 | ||
SCREW PAN HEAD 4X8 | 11 | 220B0408 | 2 | ||
RING-SNAP,FORK OIL | 12 | 92033-1100 | 2 | ||
SEAL-OIL,FRONT FORK | 13 | 92049-1101 | 2 | ||
SEAL-OIL,FRONT FORK | 13 | 92049-1101 | AL | ||
TUBE,FORK INNER | 14 | 39093-1029 | 2 | ||
CYLINDER-FORK | 15 | 44023-1007 | 2 | ||
"O" RING,FORK TOP | 16 | 92055-1012 | 2 | ||
"0" RING,AIR VALVE | 17 | 92055-1018 | 2 | ||
SPRING,FORK | 18 | 44026-1066 | 2 | ||
GASKET,FORK CYLINDER | 19 | 44045-057 | 2 | ||
CAP,FORK TOP | 20 | 44029-1005 | 2 | ||
BOLT-FORK CYLINDER | 21 | 44041-040 | 2 | ||
DUST SHIELD,FORK | 22 | 92093-1037 | 2 | ||
VALVE ASSY,AIR | 23 | 16126-1003 | 2 | ||
GUIDE,FORK SPRING | 24 | 44028-033 | 2 | ||
SPACER,FORK SPRING | 25 | 92026-1012 | 2 | ||
WASHER PLAIN 8MM | 26 | 410B0800 | 2 | ||
NUT,LOCK,8MM | 27 | 92015-1124 | 1 | ||
WASHER,PLAIN | 28 | 92022-231 | 1 | ||
CONE,STEERING STEM | 29 | 92047-012 | 1 | ||
OIL SEAL,STEERING STM | 30 | 92056-003 | 1 | ||
BRACKET,FR FORK COVER | 31 | 11034-1765 | 1 | ||
COVER,FORK | 32 | 44033-1053 | 1 | ||
SCREW-CSK-RD-CROS | 33 | 222C0518 | 2 |
