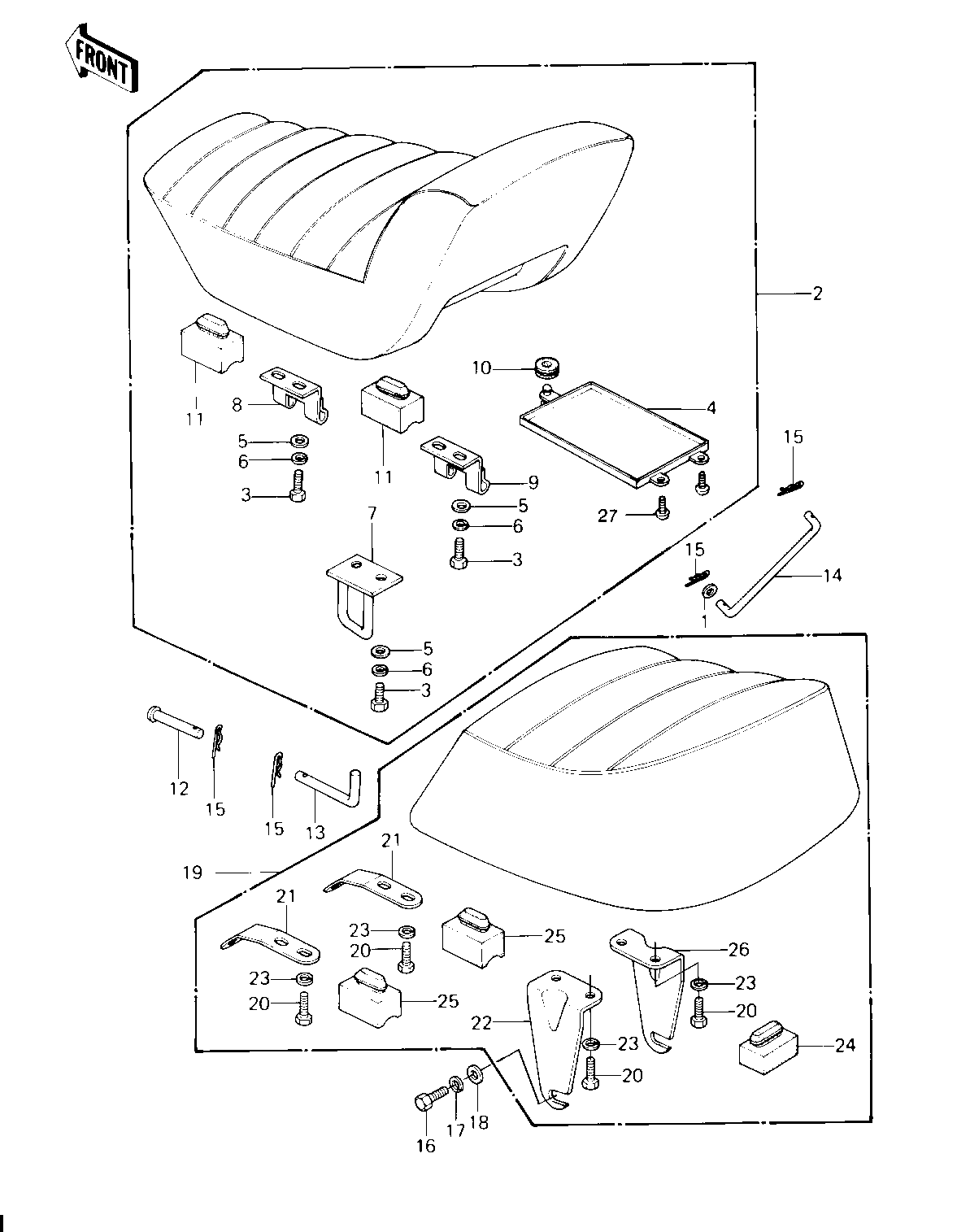

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
WASHER PLAIN 6MM | 1 | 410B0600 | 1 | ||
SEAT-ASSY | 2 | 53001-1078 | 1 | ||
BOLT-UPSET 6X14 | 3 | 112B0614 | 6 | ||
CASE | 4 | 32099-011 | 1 | ||
WASHER PLAIN 6MM | 5 | 411B0600 | 6 | ||
WASHER SPRING 6MM | 6 | 461F0600 | 6 | ||
HOOK, SEAT | 7 | 53008-021 | 1 | ||
HINGE,BLACK | 8 | 53009-017-10 | 1 | ||
HING,RR | 9 | 53009-1021 | 1 | ||
GROMMET | 10 | 92071-056 | 1 | ||
DAMPER RUBBER-SEAT | 11 | 92075-156 | 2 | ||
PIN | 12 | 53011-002 | 1 | ||
PIN,DUAL SEAT PIVOT | 13 | 53011-008 | 1 | ||
STOPPER,SEAT | 14 | 53054-006 | 1 | ||
PIN,SNAP | 15 | 554A0600 | 4 | ||
BOLT-UPSET,6X12 | 16 | 112G0612 | 2 | ||
WASHER SPRING 6MM | 17 | 461F0600 | 2 | ||
WASHER PLAIN 6MM | 18 | 411B0600 | 2 | ||
SEAT-ASSY,TANDEM | 19 | 53001-1079 | 1 | ||
BOLT-UPSET 6X14 | 20 | 112B0614 | 8 | ||
BRACKET,TANDEM SEAT | 21 | 11034-1696 | 2 | ||
BRACKET,TANDEM SEAT | 22 | 11034-1697 | 1 | ||
WASHER SPRING 6MM | 23 | 461F0600 | 8 | ||
DAMPER RUBBER | 24 | 92075-099 | 1 | ||
DAMPER RUBBER-SEAT | 25 | 92075-156 | 2 | ||
BRACKET,TANDEM SEAT | 26 | 11034-1828 | 1 | ||
SCREW | 27 | 92009-1043 | 2 |
